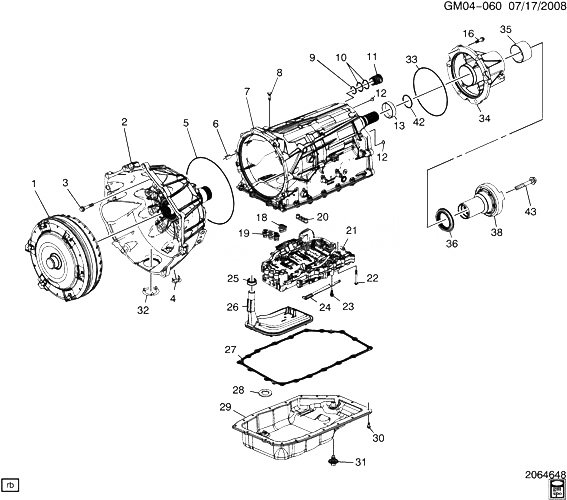

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24240154 |
CONVERTER, TORQ |
DN69 (LSA, MYD) |
2009-2010 |
01 |
| 002 |
|
ШЛАНГИ, T/CV (W/ ГИДРОНАСОС) (СМ. ГРУППУ 04.000 TORQUE CONVERTOR ШЛАНГИ AND ГИДРОНАСОС ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2009-2010 |
|
| 003 |
24224574 |
БОЛТ, T/CV HSG |
D (MYD) |
2009-2010 |
09 |
| 004 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
DN (LSA, MYD, JJB) |
2010-2010 |
01 |
| 005 |
24224577 |
SEAL, A/TRNS ГИДРОНАСОС |
DN69 (LSA, MYD, JJB) |
2010-2010 |
01 |
| 006 |
90351710 |
PIN, T/CV HSG LOC (0.293) |
DN (MYD) |
2009-2010 |
01 |
| 007 |
24245574 |
CASE, A/TRNS (INCLS 12, 13) (ACDelco #24245574) |
DN (LSA, MYD) |
2009-2010 |
01 |
| 008 |
24226020 |
PLUG, TRANS FLUID FIL TUBE HOLE |
DN (LSA, MYD) |
2009-2010 |
01 |
| 009 |
|
SEAL, A/TRNS WRG CONN (*KIT1) |
|
2009-2010 |
|
| 010 |
|
SEAL, A/TRNS WRG CONN (O RING) (*KIT1) |
|
2009-2010 |
|
| 011 |
24239878 |
SLEEVE, A/TRNS ELEC CONN PASG
| D (MYD) |
2009-2010 |
01 |
|
| 012 |
|
PLUG, A/TRNS CASE (ЧАСТЬ OF 7) |
|
2009-2010 |
|
| 013 |
|
BUSHING, ВЫХОДНОЙ SHF (ЧАСТЬ OF 7) |
|
2009-2010 |
|
| 016 |
11515768 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (A/TRNS CASE EXTN)
|
2009-2010 |
06 |
|
| 018 |
|
SEAL, A/TRNS ГИДРОНАСОС (*KIT1, KIT2) |
|
2009-2010 |
|
| 019 |
|
SEAL, A/TRNS ГИДРОНАСОС (*KIT1, KIT2) |
|
2009-2010 |
|
| 020 |
|
SEAL, CTR SUPT FLUID PASG (*KIT1, KIT2) |
|
2009-2010 |
|
| 021 |
|
VALVE, CONT (W/BODY VLV) (СМ. ГРУППУ 04.000 CONTROL VALVE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2009-2010 |
|
| 022 |
24237181 |
БОЛТ, VLV BODY (M5X0.8X73.0) |
D (MYD) |
2009-2010 |
06 |
| 023 |
24231074 |
БОЛТ, MAN SHFT DTNT (M10X1X14.5) |
D (MYD) |
2009-2010 |
01 |
| 024 |
24222646 |
DETENT, MAN SHFT (W/8MM DIA. ROLLER) (ACDelco #24222646) |
D (MYD) |
2009-2010 |
01 |
| 025 |
|
SEAL, A/TRNS FLUID FLTR (ЧАСТЬ OF 26) |
|
2009-2010 |
|
| 026 |
24250826 |
FILTER KIT, A/TRNS FLUID (INCLS 25) (ACDelco #24250826) |
DN (MYD) |
2009-2010 |
01 |
| 027 |
24226850 |
GASKET, A/TRNS FLUID PAN (ACDelco #24226850) |
D (MYD) |
2009-2010 |
01 |
| 028 |
29535617 |
MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #29535617)
| D (MYD) |
2009-2010 |
01 |
|
| 029 |
24248164 |
PAN, A/TRNS FLUID (INCLS 31) (ACDelco #24243414) |
DN (LSA, MYD, JJB) |
2010-2010 |
01 |
| 030 |
11569816 |
БОЛТ, HFH, M6X1X19, 11.5 THD, 14.2 OD, 8.8 STL, GMW3359-BLACK, MAT POINT (A/TRNS FLUID PAN) |
|
2009-2010 |
18 |
| 031 |
24234212 |
PLUG, A/TRNS FLUID PAN DRN (ЧАСТЬ OF 29) (ACDelco #24234212)
| D (MYD) |
2009-2010 |
01 |
|
| 032 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900)
| DN (LSA, MYD, JJB) |
2010-2010 |
01 |
|
| 033 |
24224675 |
SEAL, A/TRNS CASE EXTN (ACDelco #24224675) |
DN (MYD) |
2009-2010 |
01 |
| 034 |
24249876 |
EXTENSION, A/TRNS CASE (INCLS 35, 36) (ACDelco #24249876) |
DN69 (MYD) |
2010-2010 |
01 |
| 035 |
|
BUSHING, ВЫХОДНОЙ SHF (ЧАСТЬ OF 34) |
|
2009-2010 |
|
| 036 |
24239770 |
SEAL, PROP SHF TRANS FLG FLUID (ЧАСТЬ OF 34) |
DN (LSA, MYD, JJB) |
2010-2010 |
01 |
| 038 |
24241980 |
FLANGE, FRT PROP SHF |
DN69 (LSA, MYD) |
2009-2010 |
01 |
| 042 |
24239770 |
SEAL, PROP SHF TRANS FLG FLUID |
DN (LSA, MYD, JJB) |
2010-2010 |
01 |
| 043 |
|
БОЛТ, PROP SHF |
|
2009-2010 |
|
| K01 |
24236927 |
SEAL KIT, A/TRNS SERV (INCLS 9, 10, 18-20) (CNTRL SOL VLV ASM) (ACDelco #24236927)
| DN (MYD) |
2009-2010 |
01 |
|
| K02 |
24248579 |
SEAL KIT, A/TRNS SERV (INCLS 18-20) (ACDelco #24248579) |
DN (MYD) |
2009-2010 |
01 |
