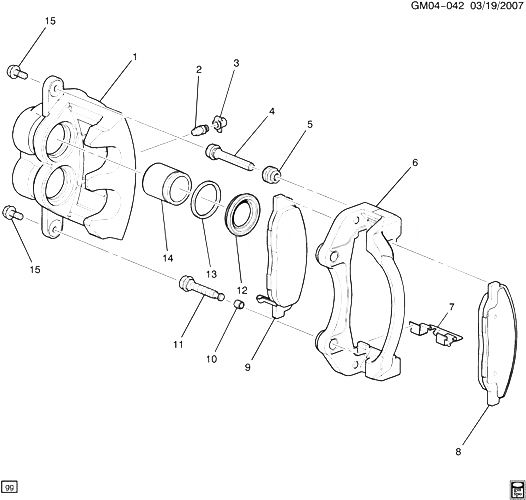

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15851351 |
CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) |
DM (JE5, MN6, MX0) |
2008-2010 |
01 |
| 001 |
15851351 |
CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) |
DR (JE5, MN6, MX0) (EXPORT) |
2009-2010 |
01 |
| 001 |
15853359 |
CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) |
DM (JE5, MN6, MX0) |
2008-2010 |
01 |
| 001 |
15853359 |
CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) |
DR (JE5, MN6, MX0) (EXPORT) |
2009-2010 |
01 |
| 002 |
89027179 |
VALVE, FRT BRK CLPR BLEDR (ЧАСТЬ OF 1) |
DM (JE5) |
2008-2010 |
02 |
| 002 |
89027179 |
VALVE, FRT BRK CLPR BLEDR (ЧАСТЬ OF 1) |
DR (JE5) (EXPORT) |
2009-2010 |
02 |
| 003 |
88935785 |
CAP, FRT BRK CLPR BLEDR VLV (ЧАСТЬ OF 1)
| DM (JE5) |
2008-2010 |
02 |
|
| 003 |
88935785 |
CAP, FRT BRK CLPR BLEDR VLV (ЧАСТЬ OF 1)
| DR (JE5) (EXPORT) |
2009-2010 |
02 |
|
| 004 |
15851359 |
PIN, FRT BRK CLPR GDE (W/O BUSHING) |
DM (JE5) |
2008-2010 |
02 |
| 004 |
15851359 |
PIN, FRT BRK CLPR GDE (W/O BUSHING) |
DR (JE5) |
2009-2010 |
02 |
| 005 |
|
SEAL, FRT BRK CLPR GDE PIN (*KIT3) |
|
2010-2010 |
|
| 006 |
15851354 |
BRACKET, FRT BRK CLPR (17) |
DM (JE5) |
2008-2010 |
02 |
| 006 |
15851354 |
BRACKET, FRT BRK CLPR (17) |
DR (JE5) (EXPORT) |
2009-2010 |
02 |
| 007 |
|
ПРУЖИНА, FRT DISC BRK PAD RET (*KIT2) |
|
2010-2010 |
|
| 008 |
|
PAD, FRT DISC BRK OTR (*KIT2) |
|
2010-2010 |
|
| 009 |
|
PAD, FRT DISC BRK INR (*KIT2) |
|
2010-2010 |
|
| 010 |
|
BUSHING, FRT BRK CLPR GDE PIN (ЧАСТЬ OF 11) (*KIT3) |
|
2010-2010 |
|
| 011 |
15851358 |
PIN, FRT BRK CLPR GDE (INCLS 10) (W/PLASTIC SLEEVE 1.5MM FROM TIP) (W/BUSHING) |
DM (JE5) |
2008-2010 |
02 |
| 011 |
15851358 |
PIN, FRT BRK CLPR GDE (INCLS 10) (W/PLASTIC SLEEVE 1.5MM FROM TIP) (W/BUSHING) |
DR (JE5) |
2009-2010 |
02 |
| 012 |
|
BOOT, FRT BRK CLPR PSTN (ЧАСТЬ OF 1) (*KIT1) |
|
2010-2010 |
|
| 013 |
|
SEAL, FRT BRK CLPR PSTN (ЧАСТЬ OF 1) (*KIT1) |
|
2010-2010 |
|
| 014 |
15926281 |
PISTON, FRT BRK CLPR (ЧАСТЬ OF 1) |
DM (JE5) |
2008-2010 |
04 |
| 014 |
15926281 |
PISTON, FRT BRK CLPR (ЧАСТЬ OF 1) |
DR (JE5) (EXPORT) |
2009-2010 |
04 |
| 015 |
89027183 |
БОЛТ, FRT BRK CLPR GDE PIN (M8X1.0)
| DM (JE5) |
2008-2010 |
04 |
|
| 015 |
89027183 |
БОЛТ, FRT BRK CLPR GDE PIN (M8X1.0)
| DR (JE5) (EXPORT) |
2009-2010 |
04 |
|
| K01 |
25814701 |
SEAL KIT, FRT BRK CLPR PSTN (INCLS 12, 13) (INCLS 2 PISTON BOOTS PISTON SEALS) |
D (JE5, JL9) |
2009-2010 |
02 |
| K02 |
25814699 |
PAD KIT, FRT DISC BRK (INCLS 7-9) |
DM69 (JE5, MN6, MX0, MX7) |
2008-2010 |
01 |
| K02 |
25814699 |
PAD KIT, FRT DISC BRK (INCLS 7-9) |
DR69 (JE5, MN6, MX0, MX7) (EXPORT) |
2009-2010 |
01 |
| K02 |
25940447 |
PAD KIT, FRT DISC BRK (INCLS 7-9) |
DN69 |
2009-2010 |
01 |
| K03 |
25814700 |
SEAL KIT, FRT BRK CLPR GDE PIN (INCLS 5, 10) (INCLS 2 SEALS 1 BUSHING) |
DM69 (JE5) |
2008-2010 |
02 |
| K03 |
25814700 |
SEAL KIT, FRT BRK CLPR GDE PIN (INCLS 5, 10) (INCLS 2 SEALS 1 BUSHING) |
DR69 (JE5) (EXPORT) |
2009-2010 |
02 |
