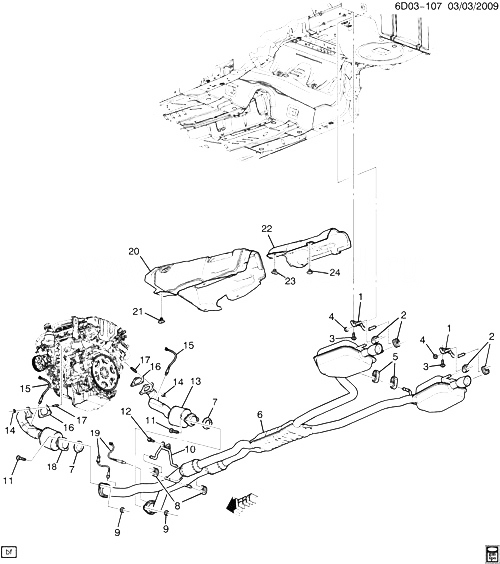

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25866387 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 2) |
DM69 |
2010-2010 |
01 |
| 001 |
25866387 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 2) |
DM69 (EXC XFE) |
2010-2010 |
02 |
| 002 |
25924159 |
INSULATOR, EXH TAIL PIPE RR HNGR (ЧАСТЬ OF 1) (3.616) |
DM |
2010-2010 |
02 |
| 003 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (EXH MUFF RR HNGR)
|
2010-2010 |
04 |
|
| 004 |
11516650 |
ГАЙКА, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (RR BPR ENGY ABS)
|
2010-2010 |
06 |
|
| 005 |
25918352 |
INSULATOR, EXH MUFF HNGR BRKT (ЧАСТЬ OF 6) (WHEN REPLACING MUST REPL BOTH LHRH FRT MUFF ПЕРЕХОДНИКИ) |
DM69 (LF1, XFE, MX0) |
2010-2010 |
01 |
| 005 |
25918352 |
INSULATOR, EXH MUFF HNGR BRKT (ЧАСТЬ OF 6) (WHEN REPLACING MUST REPL BOTH LHRH FRT MUFF ПЕРЕХОДНИКИ) |
DM69 (LF1, MN6, MX0, MX7) |
2010-2010 |
02 |
| 006 |
25799350 |
MUFFLER, EXH (W/EXH TAIL PIPE 3 WAY CTLTC CONV) (INCLS 5) |
DM69 (LF1, MX0, MN6) (EXC XFE) |
2010-2010 |
01 |
| 006 |
25915810 |
MUFFLER, EXH (W/EXH TAIL PIPE 3 WAY CTLTC CONV) (INCLS 5) |
DM (LF1, MX7) |
2010-2010 |
01 |
| 007 |
25924158 |
SEAL, CTLTC CONV (ЧАСТЬ OF 13, 18) |
DM (LF1, JJB) |
2010-2010 |
01 |
| 008 |
25924159 |
INSULATOR, EXH PIPE HNGR (ЧАСТЬ OF 10) |
DM69 (LF1, MN6, MX0) (EXC XFE) |
2010-2010 |
02 |
| 009 |
11516076 |
ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (EXH MUFF)
|
2010-2010 |
04 |
|
| 010 |
25915814 |
BRACKET, EXH PIPE FRT HNGR (INCLS 8) |
DM (LF1, JJB, MX7) |
2010-2010 |
01 |
| 011 |
11609596 |
STUD, CTLTC CONV (ЧАСТЬ OF 13, 18)
| DM (LF1, JJB) |
2010-2010 |
02 |
|
| 012 |
11515776 |
БОЛТ, HFH, M12X1.75X35, 31 THD, 26.6 OD, 10.9 MAT, 7114M FIN, MACH (EXH PIPE FRT HNGR BRKT) |
|
2010-2010 |
02 |
| 013 |
25799335 |
CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (INCLS 7, 11) |
DM (LF1, JJB) |
2010-2010 |
01 |
| 014 |
15032594 |
ГАЙКА, CTLTC CONV (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) (3.613)
| DM (LF1, JJB) |
2010-2010 |
08 |
|
| 015 |
12616201 |
SENSOR, HTD OXY (POSN 1) (ACDelco #213-4574) |
DM35-69 (LF1, JJB) |
2010-2010 |
02 |
| 016 |
15909123 |
GASKET, EXH PIPE |
DM (LF1) |
2010-2010 |
02 |
| 017 |
11610775 |
STUD, CTLTC CONV (3.613) |
DM35-69 (LF1, JJB) |
2010-2010 |
08 |
| 018 |
25799336 |
CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (INCLS 7, 11) |
DM (LF1, JJB) |
2010-2010 |
01 |
| 019 |
12616202 |
SENSOR, HTD OXY (POSN 2) |
DM, DW (LF1, MYA) |
2010-2010 |
01 |
| 019 |
12616203 |
SENSOR, HTD OXY (POSN 2) (ACDelco #213-4576) |
DM, DW (LF1, MYA) |
2010-2010 |
01 |
| 020 |
25964067 |
INSULATOR, EXH H/SHLD (INCLS 21)
| D (MX7) |
2010-2010 |
01 |
|
| 021 |
11570585 |
ГАЙКА, EXH H/SHLD (ЧАСТЬ OF 20) |
D |
2010-2010 |
04 |
| 022 |
25964069 |
INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 23, 24)
| DM |
2010-2010 |
01 |
|
| 023 |
11570586 |
RETAINER, EXH H/SHLD (ЧАСТЬ OF 22) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) |
DM |
2010-2010 |
02 |
| 024 |
24501057 |
RETAINER, EXH H/SHLD (ЧАСТЬ OF 22) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840)
| DM |
2010-2010 |
02 |
|
