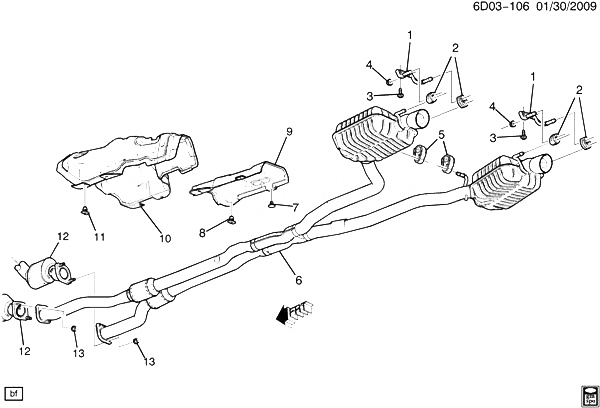

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25866387 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 2) |
DN69 |
2010-2010 |
02 |
| 002 |
25924159 |
INSULATOR, EXH TAIL PIPE RR HNGR (ЧАСТЬ OF 1) (3.616) |
DN |
2010-2010 |
02 |
| 003 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (EXH MUFF RR HNGR)
|
2010-2010 |
04 |
|
| 004 |
11516650 |
ГАЙКА, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (RR BPR ENGY ABS)
|
2010-2010 |
06 |
|
| 005 |
25773925 |
INSULATOR, EXH MUFF HNGR BRKT (ЧАСТЬ OF 6) (3.706)
| DN (LSA) |
2010-2010 |
02 |
|
| 005 |
25918352 |
INSULATOR, EXH MUFF HNGR BRKT (ЧАСТЬ OF 6) (WHEN REPLACING MUST REPL BOTH LHRH FRT MUFF ПЕРЕХОДНИКИ) |
DN (LSA) |
2010-2010 |
02 |
| 006 |
25813640 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 5) |
DN (LSA) |
2010-2010 |
01 |
| 006 |
25813640 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 5) (3.701) |
DN (LSA) |
2010-2010 |
01 |
| 006 |
25813640 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 5) (3.701) |
DN (LSA) |
2010-2010 |
01 |
| 007 |
11570586 |
RETAINER, EXH H/SHLD (ЧАСТЬ OF 9) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) |
DN |
2010-2010 |
02 |
| 007 |
24501057 |
RETAINER, EXH H/SHLD (ЧАСТЬ OF 9) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840)
| DN |
2010-2010 |
02 |
|
| 008 |
11570586 |
RETAINER, EXH H/SHLD (ЧАСТЬ OF 9) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) |
DN |
2010-2010 |
02 |
| 008 |
24501057 |
RETAINER, EXH H/SHLD (ЧАСТЬ OF 9) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840)
| DN |
2010-2010 |
02 |
|
| 009 |
25964070 |
INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 7, 8) |
DN |
2010-2010 |
01 |
| 010 |
25964067 |
INSULATOR, EXH H/SHLD (INCLS 11)
| D (MX7) |
2010-2010 |
01 |
|
| 010 |
25964067 |
INSULATOR, EXH H/SHLD (INCLS 11)
| DN69 |
2010-2010 |
01 |
|
| 011 |
11570585 |
ГАЙКА, EXH H/SHLD (ЧАСТЬ OF 10) |
D |
2010-2010 |
04 |
| 012 |
25813641 |
CONVERTER, 3WAY CTLTC (СМ. ГРУППУ 03.000 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ FRONT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
DN (LSA, JJB) |
2010-2010 |
01 |
| 012 |
25813642 |
CONVERTER, 3WAY CTLTC (СМ. ГРУППУ 03.000 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ FRONT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
DN (LSA, JJB) |
2010-2010 |
01 |
| 013 |
11517996 |
ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH MUFF)
|
2010-2010 |
04 |
|
