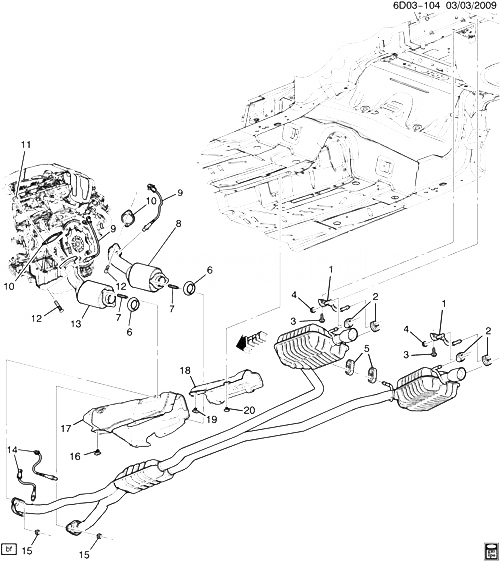

(6D03-104) - 2010 DM,DR35-69 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ (LLT/3.6V) CADILLAC - CTS SEDAN 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25866387 BRACKET, EXH TAIL PIPE HNGR (INCLS 2) DM69 2010-2010 01
001 25866387 BRACKET, EXH TAIL PIPE HNGR (INCLS 2) DM69 (EXC XFE) 2010-2010 02
001 25866387 BRACKET, EXH TAIL PIPE HNGR (INCLS 2) DR (EXPORT) 2010-2010 02
001 25866387 BRACKET, EXH TAIL PIPE HNGR (INCLS 2) DR35-69 (EXPORT) 2010-2010 02
002 25924159 INSULATOR, EXH TAIL PIPE RR HNGR (ЧАСТЬ OF 1) (3.616) DM 2010-2010 02
002 25924159 INSULATOR, EXH TAIL PIPE RR HNGR (ЧАСТЬ OF 1) (3.616) DR (EXPORT) 2010-2010 02
003 11589407 БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (EXH MUFF RR HNGR) 2010-2010 04
004 11516650 ГАЙКА, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (RR BPR ENGY ABS) 2010-2010 06
005 25918352 INSULATOR, EXH MUFF HNGR BRKT (ЧАСТЬ OF 21) (WHEN REPLACING MUST REPL BOTH LHRH FRT MUFF ПЕРЕХОДНИКИ) DR (LLT, LF1, MN6, MX0) (EXPORT) 2010-2010 02
006 15879730 SEAL, CTLTC CONV (ЧАСТЬ OF 8, 13) (SPHERICAL OUTLET SEAL) DM (LLT, JJB) 2010-2010 01
006 15879730 SEAL, CTLTC CONV (ЧАСТЬ OF 8, 13) (SPHERICAL OUTLET SEAL) DR (LLT, JJB) 2010-2010 01
007 11569946 STUD-STRAIGHT-M8X1.25X38, M8X1.25X12, W/EXT SOC, 56 OAL, 10.9, GM6164M (ЧАСТЬ OF 8, 13) 2010-2010 04
008 25939989 CONVERTER, 3WAY CTLTC (INCLS 6, 7, 10, 12) DM (LLT, JJB) 2010-2010 01
008 25971635 CONVERTER, 3WAY CTLTC (INCLS 6, 7, 10, 12) DR (LLT, JJB) (EXPORT) 2010-2010 01
009 12594935 SENSOR, HTD OXY (POSN 1) (ACDelco #213-3850) DM (LLT, JJB) 2010-2010 02
009 12594935 SENSOR, HTD OXY (POSN 1) (ACDelco #213-3850) DR (LLT, JJB) (EXPORT) 2010-2010 02
010 25857958 SEAL, CTLTC CONV (ЧАСТЬ OF 8, 13) (INLET SEAL (W/O SHIELD)) DM (LLT, JJA, JJB) 2010-2010 01
010 25857958 SEAL, CTLTC CONV (ЧАСТЬ OF 8, 13) (INLET SEAL (W/O SHIELD)) DR (LLT, JJA, JJB) 2010-2010 01
011 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (CTLTC CONV) 2010-2010 04
012 11570494 STUD, CTLTC CONV (ЧАСТЬ OF 8, 13) D69 (LLT, LY7, JJA, JJB) 2010-2010 02
012 11570494 STUD, CTLTC CONV (ЧАСТЬ OF 8, 13) DR (LLT, JJB) (EXPORT) 2010-2010 02
013 25971634 CONVERTER, 3WAY CTLTC (INCLS 6, 7, 10, 12) DM (LLT, JJB) 2010-2010 01
013 25971634 CONVERTER, 3WAY CTLTC (INCLS 6, 7, 10, 12) DR (LLT, JJB) (EXPORT) 2010-2010 01
014 12616202 SENSOR, HTD OXY (POSN 2) DM, DW (LLT, MYB) 2010-2010 01
014 12616202 SENSOR, HTD OXY (POSN 2) (ACDelco #213-4575) DR (LLT, MYB) (EXPORT) 2010-2010 01
014 12616203 SENSOR, HTD OXY (POSN 2) (ACDelco #213-4576) DM, DW (LLT, MYB) 2010-2010 01
014 12616203 SENSOR, HTD OXY (POSN 2) (ACDelco #213-4576) DR (LLT, MYB) (EXPORT) 2010-2010 01
014 12616203 SENSOR, HTD OXY (POSN 2) (ACDelco #213-4576) DM (MN6) 2010-2010 02
014 12616203 SENSOR, HTD OXY (POSN 2) (ACDelco #213-4576) DR (MN6) (EXPORT) 2010-2010 02
015 11516076 ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (EXH MUFF) 2010-2010 04
016 11570585 ГАЙКА, EXH H/SHLD (ЧАСТЬ OF 17) D 2010-2010 04
017 25964066 INSULATOR, EXH H/SHLD (INCLS 16) DM (MX0) 2010-2010 01
017 25964066 INSULATOR, EXH H/SHLD (INCLS 16) DR (MX0) (EXPORT) 2010-2010 01
017 25964067 INSULATOR, EXH H/SHLD (INCLS 16) D (MX7) 2010-2010 01
017 25964068 INSULATOR, EXH H/SHLD (INCLS 16) D69 (MN6) 2010-2010 01
018 25964069 INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 19, 20) DM 2010-2010 01
018 25964069 INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 19, 20) DR (EXPORT) 2010-2010 01
019 11570586 RETAINER, EXH H/SHLD (ЧАСТЬ OF 18) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) DM 2010-2010 02
019 11570586 RETAINER, EXH H/SHLD (ЧАСТЬ OF 18) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) DR 2010-2010 02
020 24501057 RETAINER, EXH H/SHLD (ЧАСТЬ OF 18) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) DM 2010-2010 02
020 24501057 RETAINER, EXH H/SHLD (ЧАСТЬ OF 18) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) DR 2010-2010 02
021 25973267 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 5) DM35-69 (LLT, MX7) 2010-2010 01
021 25973267 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 5) (3.701) DM35-69 (LLT, MX7) 2010-2010 01
021 25973267 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 5) (3.701) DM35-69 (LLT, MX7) 2010-2010 01
021 25973278 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 5) DM35-69 (LLT, MN6, MX0) 2010-2010 01
021 25973278 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 5) DR35-69 (LLT, MN6, MX0) (EXPORT) 2010-2010 01
