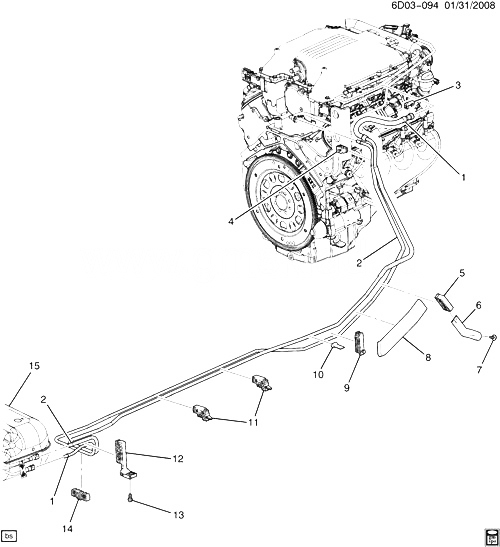

(6D03-094) - 2009-2010 DN69 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ/ТРУБКИ CADILLAC - CTS SEDAN 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25885602 PIPE, FUEL FEED (INCLS 10) DN (LSA) 2010-2010 01
002 25885601 PIPE, EVAP EMIS CNSTR PURGE DN69 (LSA) 2009-2010 01
003 22695614 CLIP, FUEL FEED RTN HOSE (13 X 19 X 36MM) (ONE TUBE) D69 2009-2010 01
004 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) DN69 (LSA) 2010-2010 01
004 25751324 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 7.95 9.5 DIA FUEL LINE, HAS CHRISTMAS TREE RETAINER) (3.162) DN69 (LSA) 2009-2010 01
004 25751324 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 7.95 9.5 DIA FUEL LINE, HAS CHRISTMAS TREE RETAINER) DN69 (LSA) 2010-2010 01
005 15223308 RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) DM, DN, DW 2010-2010 01
005 15223308 RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) (3.162) DM, DN, DW 2010-2010 01
006 25761218 BRACKET, FUEL PIPE D 2009-2010 01
007 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) 2009-2010 01
008 SLEEVE, FUEL FEED PIPE 2009-2010
009 15223306 RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) DM, DN, DW 2010-2010 01
009 15223306 RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) (3.162) DM, DN, DW 2010-2010 01
010 LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 1) 2009-2010
011 15223307 RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) DM, DN, DW 2010-2010 02
011 15223307 RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) (3.162) DM, DN, DW 2010-2010 02
012 15870391 RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) DM, DN 2010-2010 01
012 15870391 RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) (3.162) DM, DN 2010-2010 01
013 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT) 2009-2010 01
014 11588337 CLIP, FUEL FEED EVAP EMIS FRT PIPE (6 X 1 X 20) (8.900) DN69 2010-2010 02
015 TANK, FUEL (W/SDR) (СМ. ГРУППУ 03.000 ТОПЛИВНЫЙ БАК УГОЛЬНЫЙ ФИЛЬТР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2009-2010
