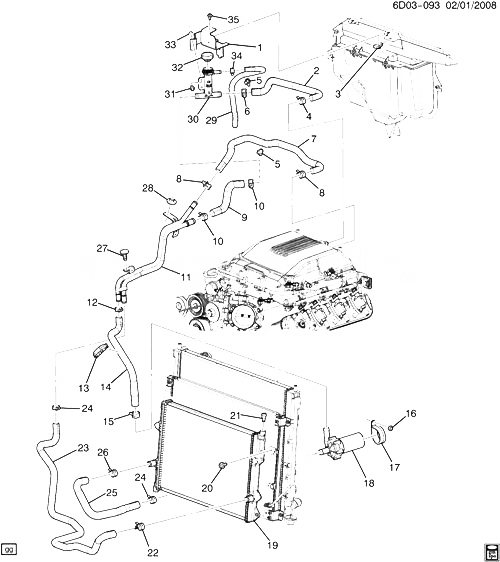

(6D03-093) - 2009-2010 DN SUPERCHARGER ОХЛАЖДАЮЩАЯ СИСТЕМА (LSA/6.2P) CADILLAC - CTS SEDAN 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25888153 BRACKET, CHRG AIR CLR DN 2009-2010 01
002 25888141 HOSE, CHRG AIR CLR COOL (OUTLET) DN (JJB) 2010-2010 01
003 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (AIR INL HSG) 2009-2010 02
004 11570816 CЛАМПА, HOSE ПРУЖИНАBAND, 23 NOMINAL DIA, 15 WIDTH, STEEL, GRAY ROBO. (CHRG AIR CLR COOL HOSE) 2009-2010 02
005 19130464 STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (CHRG AIR CLR) 2009-2010 01
006 11570615 CЛАМПА, HOSE ПРУЖИНАBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL HOSE) 2009-2010 01
007 25888140 HOSE, CHRG AIR CLR COOL (INLET) DN (JJB) 2010-2010 01
008 11570816 CЛАМПА, HOSE ПРУЖИНАBAND, 23 NOMINAL DIA, 15 WIDTH, STEEL, GRAY ROBO. (CHRG AIR CLR COOL HOSE) 2009-2010 03
009 25888139 HOSE, CHRG AIR CLR COOL DN (JJB) 2010-2010 01
010 11570615 CЛАМПА, HOSE ПРУЖИНАBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL HOSE) 2009-2010 02
011 25888230 PIPE, CHRG AIR CLR COOL (INCLS 27) DN 2009-2010 01
012 11570615 CЛАМПА, HOSE ПРУЖИНАBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL HOSE) 2009-2010 01
013 11570891 RETAINER, CHRG AIR CLR DN 2009-2010 01
014 25888143 HOSE, CHRG AIR CLR COOL (APPROX STRAIGHT LENGTH 400MM) DN (JJB) 2010-2010 01
015 11570871 CЛАМПА, ПРУЖИНАBAND, 23MM NOMINAL DIA, 12MM WIDTH, STEEL, GRAY ROBO. (CHRG AIR CLR COOL HOSE) 2009-2010 01
016 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (CHRG AIR CLR BR) (8.915) (ACDelco #11514596) 2009-2010 02
017 11570615 CЛАМПА, CHRG AIR CLR COOL PUMP (8.948) (CЛАМПА-ПРУЖИНА BAND 15MM WIDTH.) DN (JJB) 2010-2010 01
017 15251728 CЛАМПА, CHRG AIR CLR COOL PUMP (CЛАМПА-LOOP CUSHIONED) DN (JJB) 2010-2010 02
018 22718756 PUMP, CHRG AIR CLR COOL (LESS CЛАМПА) DN (JJB) 2010-2010 01
019 25876663 РАДИАТОР, CHRG AIR CLR (INCLS 21) DN 2009-2010 01
020 11570323 БОЛТ, CHRG AIR CLR (M6X1X18, 13 THD) (1.277) DN69 (MG9, MYD) 2009-2010 04
021 89025034 PLUG, RAD DRN (ЧАСТЬ OF 19) (3.358) DN 2009-2010 02
022 11570871 CЛАМПА, ПРУЖИНАBAND, 23MM NOMINAL DIA, 12MM WIDTH, STEEL, GRAY ROBO. (CHRG AIR CLR COOL HOSE) 2009-2010 01
023 25888142 HOSE, CHRG AIR CLR COOL (APPROX STRAIGHT LENGTH 1200MM) DN (JJB) 2010-2010 01
024 11570616 CЛАМПА, ПРУЖИНАBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL HOSE) 2009-2010 02
025 25888138 HOSE, CHRG AIR CLR COOL DN (JJB) 2010-2010 01
026 11570615 CЛАМПА, HOSE ПРУЖИНАBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL PUMP) 2009-2010 01
027 11569768 RETAINER, PUSH-IN, FIT HOLE 6.35, 20.32 LENGTH, 17.78 OD, 2.79-14.22 THK P (ЧАСТЬ OF 11) 2009-2010 01
028 25601643 ГАЙКА, HEX W/CON WA, M6X1X5.6, 24 OD, 9, ZF (8.917) 2009-2010 01
029 25888144 HOSE, CHRG AIR CLR COOL OVFL DN (JJB) 2010-2010 01
030 25884797 RESERVOIR, CHRG AIR CLR COOL DN 2009-2010 01
031 11561025 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, GMW25 STL, GMW3200, MACH, HDR-PT (CHRG AIR CLR BRKT) 2009-2010 02
032 15076936 CAP, CHRG AIR CLR COOL FIL (1.097) DN 2010-2010 01
033 11503747 ГАЙКА, M6X1 (CHRG AIR CLR BRKT) 2009-2010 02
034 11570870 CЛАМПА, CHRG AIR CLR COOL HOSE (8.948) DN (JJB) 2010-2010 01
035 11589038 БОЛТ, HEX HD W/CONWA, M6X1X19, 13.55 THD, 20 OD, 8.8, GMW4205 BLACK (CHRG AIR CLR COOL PIPE) 2009-2010 01
