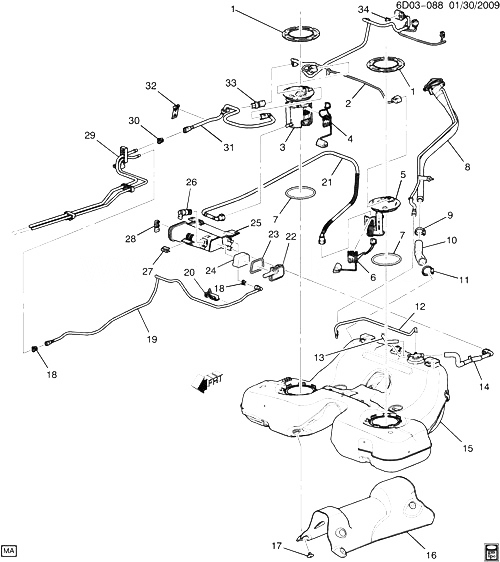

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26)
| DM35-69 (LF1, LLT) |
2010-2010 |
02 |
|
| 001 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26)
| DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
02 |
|
| 002 |
25990047 |
HARNESS, FUEL SDR WRG (3.115) |
DM35-69 (LF1, LLT) |
2010-2010 |
01 |
| 002 |
25990047 |
HARNESS, FUEL SDR WRG (3.115) |
DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 003 |
19209054 |
МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 7) (*KIT2) (ACDelco #M10244) |
DM35-69 (LF1, LLT) |
2010-2010 |
01 |
| 003 |
19209054 |
МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 7) (*KIT2) (ACDelco #M10244) |
DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 003 |
19209054 |
МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 7) (*KIT2) (3.107) (ACDelco #M10244) |
DM35-69 (LF1, LLT) |
2010-2010 |
01 |
| 003 |
19209054 |
МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 7) (*KIT2) (3.107) (ACDelco #M10244) |
DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 004 |
19209055 |
SENSOR KIT, FUEL LVL (INCLS 7) (PRIMARY) (*KIT2) (ACDelco #SK1335) |
DM35-69 (LF1, LLT) |
2010-2010 |
01 |
| 004 |
19209055 |
SENSOR KIT, FUEL LVL (INCLS 7) (PRIMARY) (*KIT2) (ACDelco #SK1335) |
DR35-69 (LF1, LLT) |
2010-2010 |
01 |
| 005 |
|
SENDER, FUEL (ЧАСТЬ OF 6) |
|
2010-2010 |
|
| 006 |
19209056 |
SENSOR KIT, FUEL LVL (INCLS 5, 7) (AUXILLARY) (ACDelco #SK1336) |
DM35-69 (LF1, LLT) |
2010-2010 |
02 |
| 006 |
19209056 |
SENSOR KIT, FUEL LVL (INCLS 5, 7) (AUXILLARY) (ACDelco #SK1336) |
DR35-69 (LF1, LLT) |
2010-2010 |
02 |
| 007 |
22682111 |
SEAL, F/PMP (O RING) (ЧАСТЬ OF 3, 4, 6) (135.5 MM ID X 147.5MM OD X 6MMTALL) (*KIT1) (3.112) (ACDelco #G41)
| DM35-69 (LF1, LLT) |
2010-2010 |
02 |
|
| 007 |
22682111 |
SEAL, F/PMP (O RING) (ЧАСТЬ OF 3, 4, 6) (135.5 MM ID X 147.5MM OD X 6MMTALL) (*KIT1) (3.112) (ACDelco #G41)
| DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
02 |
|
| 008 |
20789050 |
PIPE, F/TNK FIL (СМ. ГРУППУ 03.000 ШЛАНГИ И ТРУБКИ ТОПЛИВНОГО БАКА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
D35-69 (LF1, LLT, LSA) |
2010-2010 |
01 |
| 009 |
11610236 |
CЛАМПА, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (ЧАСТЬ OF 10) |
|
2010-2010 |
01 |
| 010 |
15925742 |
HOSE, F/TNK FIL (INCLS 9) |
DM (LF1, LLT) |
2010-2010 |
01 |
| 010 |
15925742 |
HOSE, F/TNK FIL (INCLS 9) |
DR (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 011 |
20768688 |
CЛАМПА, F/TNK FIL HOSE |
DM, DR (LF1, LLT) |
2010-2010 |
01 |
| 012 |
|
PIPE, AUX F/TNK FIL EXTN (ЧАСТЬ OF 15) |
|
2010-2010 |
|
| 013 |
|
PIPE, F/TNK VENT (ЧАСТЬ OF 15) |
|
2010-2010 |
|
| 014 |
|
PIPE, F/TNK VENT VLV (ЧАСТЬ OF 15) |
|
2010-2010 |
|
| 015 |
20903277 |
TANK, FUEL (INCLS 12-14)
| DM35-69 (LF1, LLT) |
2010-2010 |
01 |
|
| 015 |
20903277 |
TANK, FUEL (INCLS 12-14)
| DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
|
| 015 |
25904036 |
TANK, FUEL (INCLS 12-14)
| DM (LF1, LLT) |
2010-2010 |
01 |
|
| 015 |
25904036 |
TANK, FUEL (INCLS 12-14)
| DR (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
|
| 016 |
15801795 |
SHIELD, F/TNK
| DM (LLT, LF1) |
2010-2010 |
01 |
|
| 016 |
15801795 |
SHIELD, F/TNK
| DR (LLT, LF1) (EXPORT) |
2010-2010 |
01 |
|
| 016 |
20903276 |
SHIELD, F/TNK |
DM35-69 (LF1, LLT) |
2010-2010 |
01 |
| 016 |
20903276 |
SHIELD, F/TNK |
DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 017 |
25679213 |
PIN, F/TNK UPR SHLD |
D |
2010-2010 |
04 |
| 018 |
12522916 |
RETAINER KIT, FUEL FEED PIPE FTG (ЧАСТЬ OF 19) (BLUE) (INCLS INST SHT RET) (USE WITH 5/16 TUBE, NYLON)
| DM35-69 (LF1, LLT) |
2010-2010 |
01 |
|
| 018 |
12522916 |
RETAINER KIT, FUEL FEED PIPE FTG (ЧАСТЬ OF 19) (BLUE) (INCLS INST SHT RET) (USE WITH 5/16 TUBE, NYLON)
| DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
|
| 019 |
15801032 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 18) (FRONT LINE) |
DM (LF1, LLT) |
2010-2010 |
01 |
| 019 |
15801032 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 18) (FRONT LINE) |
DR (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 019 |
20903285 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 18) |
DM35-69 (LF1, LLT) |
2010-2010 |
01 |
| 019 |
20903285 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 18) |
DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 020 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) |
DM35-69 (LF1, LLT) |
2010-2010 |
01 |
| 020 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) |
DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 021 |
20903288 |
PIPE, FUEL SDR FUEL FEED |
DM, DR35-69 (LF1, LLT) |
2010-2010 |
01 |
| 021 |
25990046 |
PIPE, FUEL SDR FUEL FEED |
DM (LF1, LLT) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 021 |
25990046 |
PIPE, FUEL SDR FUEL FEED |
DR (LF1, LLT) (NOT YET AVAILABLE) (EXPORT) |
2010-2010 |
01 |
| 022 |
|
COVER, EVAP EMIS CNSTR AIR INL OPG (*KIT1) |
|
2010-2010 |
|
| 023 |
|
SEAL, EVAP EMIS CNSTR AIR INL OPG CVR (*KIT1) |
|
2010-2010 |
|
| 024 |
|
ФИЛЬТР, EVAP EMIS CNSTR AIR INL (*KIT1) |
|
2010-2010 |
|
| 025 |
19177356 |
CANISTER, EVAP EMIS (ACDelco #215-645)
| D35-69 (LF1, LLT, LSA) |
2010-2010 |
01 |
|
| 026 |
25932573 |
VALVE, EVAP EMIS CNSTR VENT SOL (ACDelco #214-2230)
| D |
2010-2010 |
01 |
|
| 027 |
|
RETAINER, EVAP EMIS CNSTR |
|
2010-2010 |
|
| 028 |
13502903 |
SENSOR, F/TNK PRESS (ACDelco #13502903)
| D |
2010-2010 |
01 |
|
| 029 |
|
PIPE, BRK FUEL FEED EVAP EMIS (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2010-2010 |
|
| 030 |
12522917 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 31) (GREEN) (INCLS INST SHT RET) (USE WITH 3/8 TUBE, NYLON) |
DM69 (LF1, LLT) |
2010-2010 |
01 |
| 030 |
12522917 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 31) (GREEN) (INCLS INST SHT RET) (USE WITH 3/8 TUBE, NYLON) |
DR69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 030 |
21992748 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 31) (5/16 INCH QUICK CONNECT RETAINER CLIP) |
DM35-69 (LLT, MX7) |
2010-2010 |
01 |
| 030 |
21992748 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 31) (5/16 INCH QUICK CONNECT RETAINER CLIP) |
DR35-69 (LLT, MX7) (EXPORT) |
2010-2010 |
01 |
| 031 |
20903286 |
PIPE, FUEL FEED RR (INCLS 30, 32, 33) |
DM35-69 (LF1, LLT) |
2010-2010 |
01 |
| 031 |
20903286 |
PIPE, FUEL FEED RR (INCLS 30, 32, 33) |
DR35-69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 031 |
25990048 |
PIPE, FUEL FEED RR (INCLS 30, 32, 33) |
DM (LF1, LLT) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 032 |
|
LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 31) |
|
2010-2010 |
|
| 033 |
13500745 |
SENSOR, FUEL PRESS (ЧАСТЬ OF 31) (FUEL PRESS SENSOR БЛОК LABELED 0745) (3.682) (ACDelco #13500745) |
DM (LF1, LLT) |
2010-2010 |
01 |
| 033 |
13500745 |
SENSOR, FUEL PRESS (ЧАСТЬ OF 31) (FUEL PRESS SENSOR БЛОК LABELED 0745) (3.682) (ACDelco #13500745) |
DR (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 033 |
13500745 |
SENSOR, FUEL PRESS (ЧАСТЬ OF 31) (FUEL PRESS SENSOR БЛОК LABELED 0745) (ACDelco #13500745) |
DM (LF1, LLT) |
2010-2010 |
01 |
| 033 |
13500745 |
SENSOR, FUEL PRESS (ЧАСТЬ OF 31) (FUEL PRESS SENSOR БЛОК LABELED 0745) (ACDelco #13500745) |
DR (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 034 |
12186353 |
RETAINER, WHL SPD SEN WRG HARN CONN (BLACK) (7.00/6.25 DIA, SLIDING) |
D |
2010-2010 |
01 |
| K01 |
19177364 |
FILTER KIT, EVAP EMIS CNSTR (W/ SEAL) (INCLS 22-24) (ACDelco #215-656) |
D69 |
2010-2010 |
01 |
