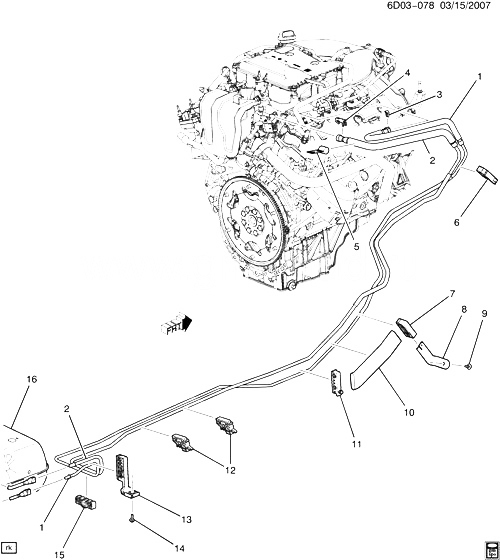

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25973154 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 3)
| DM35-47-69 (LLT, MX7) |
2010-2010 |
01 |
|
| 002 |
25973156 |
PIPE, FUEL FEED (INCLS 5)
| DM35-47-69 (LLT, MX7) |
2010-2010 |
01 |
|
| 002 |
25973156 |
PIPE, FUEL FEED (INCLS 5)
| DR35-47-69 (LLT, MX7) |
2010-2010 |
01 |
|
| 003 |
12522917 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 1) (GREEN) (INCLS INST SHT RET) (USE WITH 3/8 TUBE, NYLON) |
DM69 (LF1, LLT) |
2010-2010 |
01 |
| 003 |
12522917 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 1) (GREEN) (INCLS INST SHT RET) (USE WITH 3/8 TUBE, NYLON) |
DR69 (LF1, LLT) (EXPORT) |
2010-2010 |
01 |
| 003 |
21992748 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 1) (5/16 INCH QUICK CONNECT RETAINER CLIP) |
DM35-69 (LLT, MX7) |
2010-2010 |
01 |
| 003 |
21992748 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 1) (5/16 INCH QUICK CONNECT RETAINER CLIP) |
DR35-69 (LLT, MX7) (EXPORT) |
2010-2010 |
01 |
| 004 |
22695614 |
CLIP, FUEL FEED RTN HOSE (13 X 19 X 36MM) (ONE TUBE)
| D69 |
2008-2010 |
01 |
|
| 005 |
|
LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 2) |
|
2010-2010 |
|
| 006 |
15223305 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS TWO LINES W/PRONG) |
DM, DR35-69 (LLT, MX7) |
2010-2010 |
01 |
| 007 |
15223308 |
RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) |
DM, DN, DW |
2010-2010 |
01 |
| 007 |
15223308 |
RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) |
DR, DW |
2010-2010 |
01 |
| 007 |
15223308 |
RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) (3.162) |
DM, DN, DW |
2010-2010 |
01 |
| 007 |
15223308 |
RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) (3.162) |
DR, DW |
2010-2010 |
01 |
| 008 |
25761218 |
BRACKET, FUEL PIPE |
D |
2008-2010 |
01 |
| 009 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) |
|
2008-2010 |
01 |
| 010 |
|
SLEEVE, FUEL FEED PIPE |
|
2010-2010 |
|
| 011 |
15223306 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) |
DM, DN, DW |
2010-2010 |
01 |
| 011 |
15223306 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) |
DR, DY |
2010-2010 |
01 |
| 011 |
15223306 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) (3.162) |
DM, DN, DW |
2010-2010 |
01 |
| 011 |
15223306 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) (3.162) |
DR, DY |
2010-2010 |
01 |
| 012 |
15223307 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) |
DM, DN, DW |
2010-2010 |
02 |
| 012 |
15223307 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) |
DR, DY |
2010-2010 |
02 |
| 012 |
15223307 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) (3.162) |
DM, DN, DW |
2010-2010 |
02 |
| 012 |
15223307 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) (3.162) |
DR, DY |
2010-2010 |
02 |
| 013 |
15870391 |
RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) |
DM, DN |
2010-2010 |
01 |
| 013 |
15870391 |
RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) |
DR |
2010-2010 |
01 |
| 013 |
15870391 |
RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) (3.162) |
DM, DN |
2010-2010 |
01 |
| 013 |
15870391 |
RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) (3.162) |
DR |
2010-2010 |
01 |
| 014 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT)
|
2008-2010 |
01 |
|
| 015 |
15223304 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) |
DM, DR69 (LLT, LY7) |
2009-2010 |
01 |
| 015 |
15223304 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) |
DM, DR35-47-69 (LLT, MX7) |
2010-2010 |
01 |
| 016 |
|
TANK, FUEL (W/SDR) (СМ. ГРУППУ 03.000 ТОПЛИВНЫЙ БАК УГОЛЬНЫЙ ФИЛЬТР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2010 |
|
