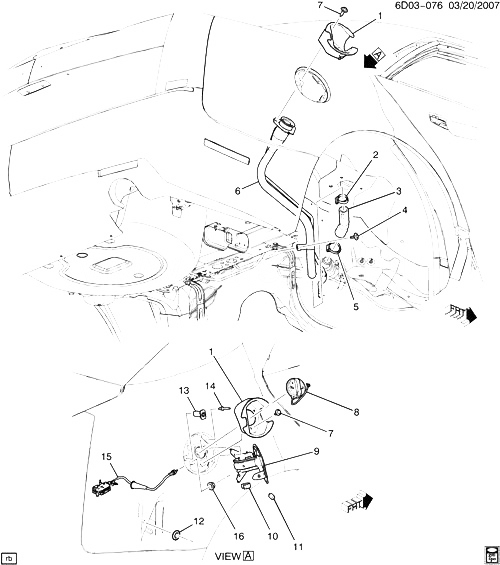

(6D03-076) - 2010 D35-69 ШЛАНГИ И ТРУБКИ ТОПЛИВНОГО БАКА CADILLAC - CTS SEDAN 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25954934 ШЛАНГИ, F/TNK FIL PIPE DM, DN 2009-2010 01
001 25954934 ШЛАНГИ, F/TNK FIL PIPE DR (EXPORT) 2009-2010 01
002 11610236 CЛАМПА, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (ЧАСТЬ OF 3) 2008-2010 01
003 15925742 HOSE, F/TNK FIL (INCLS 2) DN (LSA) 2009-2010 01
003 15925742 HOSE, F/TNK FIL (INCLS 2) DM (LF1, LLT) 2010-2010 01
003 15925742 HOSE, F/TNK FIL (INCLS 2) DR (LF1, LLT) (EXPORT) 2010-2010 01
004 11588928 БОЛТ, HEX, W/FL WA, M6X1X25, 14 THD, 24 O.D., DOG-PT, STL, GMW3200 (F/TNK FIL PIPE BRKT) 2008-2010 01
005 20768688 CЛАМПА, F/TNK FIL HOSE DM, DR (LF1, LLT) 2010-2010 01
005 25711370 CЛАМПА, F/TNK FIL HOSE (30-45MM CЛАМПА RANGE) DN47-69 (LSA) 2010-2010 01
006 20789050 PIPE, F/TNK FIL D35-69 (LF1, LLT, LSA) 2010-2010 01
007 15714276 SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (F/TNK FIL PIPE) (8.977) 2008-2010 03
008 15832215 CAP, F/TNK FIL (INCLUDES TETHER) (ACDelco #GT303) D 2008-2010 01
009 25966969 DOOR, F/TNK FIL (INCLS 10, 11) DM, DN 2009-2010 01
009 25966969 DOOR, F/TNK FIL (INCLS 10, 11) DR (EXPORT) 2009-2010 01
010 ПРУЖИНА, F/TNK FIL DR (ЧАСТЬ OF 9) 2010-2010
011 89047657 BUMPER, F/TNK FIL DR (ЧАСТЬ OF 9) (HINGE) D69 2010-2010 01
012 22653093 PLUG, F/TNK FIL DR LAT REL CBL HOLE (30.2 X 9.2 MM) (FITS 19.3MM DIA HOLE) (12.942) DM, DN69 (EXC N08) 2009-2010 01
013 25880365 ПРУЖИНА, F/TNK FIL DR (PRIOR TO INSTALL SEAL VOIDS IN PLUNGER HSG W/FLEXIABLE SEALER) D 2008-2010 01
014 11609731 RIVET, POP, .25 SHANK, .63 LEN, .50 OD, .06-.30 GRP RNG, 1008 STL, GMW3044 (F/TNK FIL DR) 2008-2010 02
015 25907014 ACTUATOR, F/TNK FIL DR LK D35-69 (N08) 2010-2010 01
016 11589175 ГАЙКА, HEX, M8X1.25, 4 THK, GM510M, GMW3359, BLACK (F/TNK FIL DR LK ACTR) 2008-2010 01
