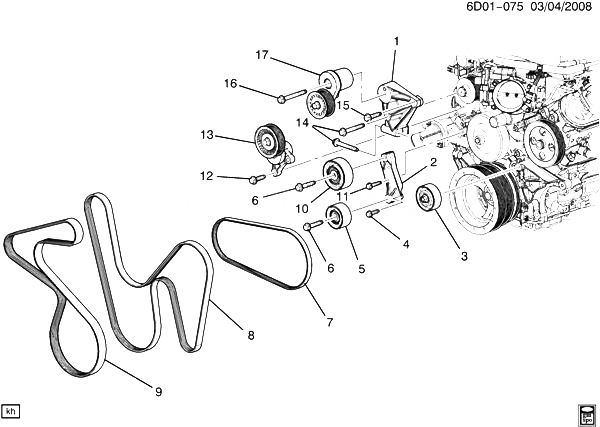

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12606500 |
BRACKET, SPCHG BELT TENSR |
DN (LSA) |
2010-2010 |
01 |
| 002 |
12606501 |
BRACKET, SPCHG BELT IDLER PUL |
DN (LSA) |
2010-2010 |
01 |
| 003 |
12568996 |
PULLEY, BELT IDLER (INCL, MOUNT БОЛТ) |
DN (LSA, JJB) |
2010-2010 |
01 |
| 004 |
11900254 |
БОЛТ, HFH, M8X1.25X29, 19 THD, 18 OD, 8.8, GMW3359, M-POINT (SPCHG BELT IDLER PUL BRKT) |
|
2009-2010 |
01 |
| 005 |
12606032 |
PULLEY, SPCHG BELT IDLER (SLACK SIDE) |
DN (LSA, JJB) |
2010-2010 |
01 |
| 006 |
11518630 |
БОЛТ, HFH, M10X1.5X60, 26 THD, 22.3 OD, 10.9, GMW3359, MAT POINT (BELT IDLER PUL) |
|
2009-2010 |
02 |
| 007 |
19180340 |
BELT KIT, КОНДИЦИОНЕР CMPR |
DN (LSA) |
2009-2010 |
01 |
| 008 |
12628027 |
BELT, W/PMP GEN P/S PUMP |
DN69 (LSA) |
2009-2010 |
01 |
| 009 |
12628026 |
BELT, SPCHG |
DN69 (LSA) |
2009-2010 |
01 |
| 010 |
12606031 |
PULLEY, SPCHG BELT IDLER (TIGHT SIDE) |
DN (LSA, JJB) |
2010-2010 |
01 |
| 011 |
11588727 |
БОЛТ-HFH, M8X1.25X45, 21.7 THD, 18 OD, 8.8 STL, GMW3359 (SPCHG BELT IDLER PUL BRKT) |
|
2009-2010 |
03 |
| 012 |
11571051 |
БОЛТ, HFH, M10X1.5X45, 26 THD, 19 OD, 10.9, GMW3359 M-PT. (DRV BELT TENSR) |
|
2009-2010 |
02 |
| 013 |
12628025 |
РОЛИК НАТЯЖИТЕЛЬ, DRV BELT |
DN69 (LSA) |
2009-2010 |
01 |
| 014 |
11588749 |
БОЛТ, M10X1.5X85, 35 THD, 10.9, 22.3 O.D. (SPCHG BELT TENSR BRKT) |
|
2009-2010 |
02 |
| 015 |
11588742 |
БОЛТ, SPCHG BELT TENSR BRKT (M10X1.5X50) (9.173) |
DN (LSA) |
2010-2010 |
01 |
| 016 |
11588752 |
БОЛТ-HFH, M10X1.5X100, 26 THD, 22.3 OD, 10.9, GMW3359, M-PT (SPCHG BELT TENSR) |
|
2009-2010 |
01 |
| 017 |
12622452 |
РОЛИК НАТЯЖИТЕЛЬ, SPCHG BELT |
DN (LSA, JJB) |
2010-2010 |
01 |
