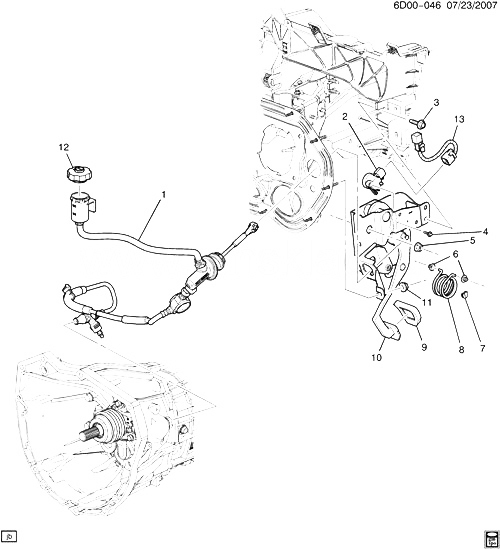

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24248350 |
CYLINDER, CLU MAS (INCLS 12) |
DM69 (JJD, MN6) |
2009-2010 |
01 |
| 002 |
89047699 |
SENSOR, CLU PED POSN (ЧАСТЬ OF 10) (INCLS 4) (4.625)
| D (MN6) |
2008-2010 |
01 |
|
| 003 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (CLU PED BRKT) (T/W 12345493 REPLCS 25534835)
|
2008-2010 |
02 |
|
| 004 |
11609999 |
SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (ЧАСТЬ OF 2, 10) |
|
2008-2010 |
01 |
| 005 |
11609746 |
ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (CLU PED BRKT)
|
2008-2010 |
02 |
|
| 006 |
|
BUSHING, CLU PED RTN SPR (ЧАСТЬ OF 10) |
|
2008-2010 |
|
| 007 |
|
BUSHING, CLU PED RTN SPR GDE (ЧАСТЬ OF 10) |
|
2008-2010 |
|
| 008 |
|
ПРУЖИНА, CLU PED RTN (ЧАСТЬ OF 10) |
|
2008-2010 |
|
| 009 |
|
PAD, CLU PED (ЧАСТЬ OF 10) |
|
2008-2010 |
|
| 010 |
25932330 |
PEDAL, CLU (W/BRKT) (INCLS 2, 4, 6-9, 13) |
DM (MN6) |
2009-2010 |
01 |
| 011 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CLU PED)
|
2008-2010 |
01 |
|
| 012 |
|
CAP, CLU M/CYL RSVR (ЧАСТЬ OF 1) |
|
2008-2010 |
|
| 013 |
25855318 |
HARNESS, CLU SHFT CONT ACTR WRG (ЧАСТЬ OF 10) |
DM |
2008-2010 |
01 |
