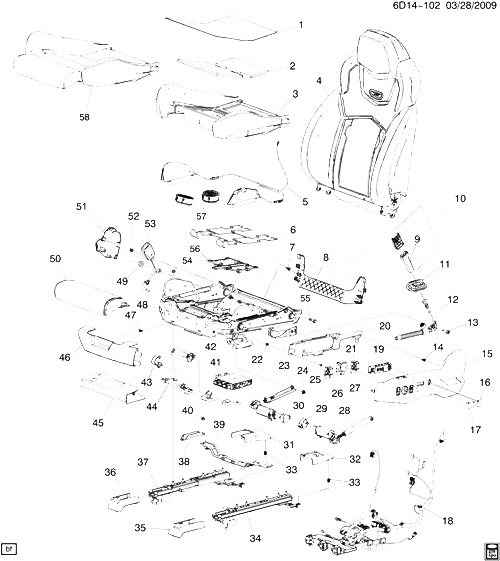

(6D14-102) - 2009-2010 DN69 ПАССАЖИРСКОЕ СИДЕНЬЕ-ПОДУШКА (VENTED/HEATED KB6) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
003 PAD, D/SEAT CUSH 2009-2010
004 COVER, D/SEAT BK CUSH (СМ. ГРУППУ 14.000 ВОДИТЕЛЬСКОЕ СИДЕНЬЕ-СПИНКА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (EBONY) 2009-2010
005 BLADDER, F/SEAT LUMBAR SUPT 2009-2010
006 WIRE, D/SEAT CUSH PAD (ЧАСТЬ OF 48) 2009-2010
007 CLIP, D/SEAT INR ADJR RR FIN (ЧАСТЬ OF 8) 2009-2010
008 15947259 COVER, D/SEAT CUSH CLOSEOUT (INCLS 7) (EBONY) (11.573) DN (19I, 31I) 2009-2009 01
008 25908343 COVER, D/SEAT CUSH CLOSEOUT (INCLS 7) (TITANIUM) (11.573) D69 (84I) 2009-2009 01
009 25982254 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (SLEEVE) DM, DN69 (19I) 2009-2009 02
009 25982256 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (SLEEVE) DM, DN69 (84I) (EXC KA1) 2009-2009 01
010 20826784 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (LOWER) DM, DN69 (19I) 2009-2009 01
010 20826786 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (LOWER) DM, DN69 (84I) 2009-2009 01
011 25982266 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DN (AQ9, AL2, A45, 195) 2009-2009 01
011 25982268 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) DN (W2E, AL2, A45, 845) 2009-2009 01
012 19208613 РОЛИК НАТЯЖИТЕЛЬ KIT, D/SEAT BELT (RETR SI) (INCLS 13) (EBONY) DN (195, 315, 845) 2009-2009 01
013 БОЛТ, D/SEAT BELT TENSR (RETR SI) (ЧАСТЬ OF 12) 2009-2010
014 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 15) 2009-2010 04
015 20793326 BEZEL, D/SEAT ADJR SW (INCLS 14) (EBONY) DN (KB6, 195) (EXC KA1) 2009-2009 01
015 20793327 BEZEL, D/SEAT ADJR SW (INCLS 14) (TITANIUM) DN (KB6, 845) (EXC KA1) 2009-2009 01
016 15222985 KNOB, D/SEAT RECL LVR (TITANIUM) D69 (84I) 2009-2009 01
016 15889530 KNOB, D/SEAT RECL LVR (EBONY) (16.682) D69 (19I) 2009-2009 01
017 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) D69 (84I) 2009-2009 01
017 15889524 KNOB, D/SEAT ADJR SW (EBONY) (16.682) DN (19I) 2009-2009 01
018 HARNESS, D/SEAT CONT MDL WRG 2009-2010
019 12451497 SWITCH, D/SEAT ADJR RECL (8-WAY) D69 2009-2009 01
020 25780740 BRACKET, D/SEAT RECL HDL BZL (W/O LAP PREРОЛИК НАТЯЖИТЕЛЬ) (FOR 1ST DES SEE 25994139) DM, DN (2ND DES) 2009-2009 01
020 25994139 BRACKET, D/SEAT RECL HDL BZL (W/LAP PREРОЛИК НАТЯЖИТЕЛЬ) (FOR 2ND DES SEE 25780740) DM, DN (1ST DES) 2009-2009 01
021 25858131 SWITCH, D/SEAT LUMBAR BOLSTER CONT (UPPER) DN (KB6) (EXC KA1) 2009-2009 01
021 25858131 SWITCH, D/SEAT LUMBAR BOLSTER CONT (UPPER) (11.378) DN (KB6) (EXC KA1) 2009-2009 01
022 NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (D/SEAT) 2009-2010 AR
023 ACTUATOR, F/SEAT TILT ADJR (ЧАСТЬ OF 48) (INCLS 30) 2009-2010
024 ГАЙКА, D/SEAT (ЧАСТЬ OF 48) 2009-2010
025 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT) 2009-2010 09
026 25858136 SWITCH, D/SEAT LUMBAR BOLSTER CONT (LOWER) DN (KB6) (EXC KA1) 2009-2009 01
026 25858136 SWITCH, D/SEAT LUMBAR BOLSTER CONT (LOWER) (11.378) DN (KB6) (EXC KA1) 2009-2009 01
027 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) DM, DN (19I) 2009-2009 01
027 25770400 SWITCH, D/SEAT LUMBAR CONT (EBONY) (USED W/4-WAY PWR LUMBAR) (LABELED 25770400) DN (KB6, 195) (EXC KA1) 2009-2009 01
027 25858130 SWITCH, D/SEAT LUMBAR CONT DN (IP5, KB6) (EXC KA1) 2009-2009 01
028 15894155 ACTUATOR, D/SEAT OTR ADJR RR VERT (ЧАСТЬ OF 48) (INCLS 29) DN (W2E) 2009-2009 01
028 15894164 ACTUATOR, D/SEAT OTR ADJR RR VERT (ЧАСТЬ OF 48) (INCLS 29) DN (AL2, AQ9) 2009-2009 01
029 МОДУЛЬ, D/SEAT ADJR MEMORY (ЧАСТЬ OF 28, 48) 2009-2010
030 МОДУЛЬ, D/SEAT ADJR MEMORY (ЧАСТЬ OF 23, 48) 2009-2010
031 15947295 COVER, D/SEAT INR ADJR TRK RR FIN (INCLS 33) (EBONY) DN (19I, 31I, 84I) 2009-2009 01
032 15947287 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 33) (EBONY) DN (19I, 31I, 84I) 2009-2009 01
033 CLIP, D/SEAT (ЧАСТЬ OF 31, 32) 2009-2010
034 TRACK, D/SEAT OTR ADJR (ЧАСТЬ OF 48) 2009-2010
035 15947303 COVER, D/SEAT OTR ADJR TRK FRT FIN (EBONY) DN (19I, 31I, 84I) 2009-2009 01
036 15947311 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) DN (19I, 31I, 84I) 2009-2009 01
037 TRACK, D/SEAT INR ADJR (ЧАСТЬ OF 48) 2009-2010
038 BRACE, D/SEAT (ЧАСТЬ OF 48) 2009-2010
039 BRACE, D/SEAT (ЧАСТЬ OF 48) 2009-2010
040 ГАЙКА, D/SEAT (ЧАСТЬ OF 48) 2009-2010
041 25857034 МОДУЛЬ, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25930648) (11.558) DN (KB6) 2009-2009 01
041 25857034 МОДУЛЬ, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25930648) DN (KB6) 2009-2009 01
042 ACTUATOR, D/SEAT ADJR (ЧАСТЬ OF 44, 48) 2009-2010
043 МОДУЛЬ, D/SEAT ADJR MEMORY (ЧАСТЬ OF 44, 48) 2009-2010
044 MOTOR, D/SEAT ADJR ACTR (ЧАСТЬ OF 48) (INCLS 42, 43) 2009-2010
045 20793318 COVER, D/SEAT ADJR FIN (EBONY) DN (KB6, 19I) (EXC KA1) 2009-2009 01
045 20793319 COVER, D/SEAT ADJR FIN (TITANIUM) DN (KB6, 84I) (EXC KA1) 2009-2009 01
046 15947193 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 47) (EBONY) DN (195, 315) 2009-2009 01
046 25908332 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 47) (TITANIUM) DM, DN (84I) 2009-2009 01
047 CLIP, D/SEAT (ЧАСТЬ OF 46) 2009-2010
048 20792985 РАМА, D/SEAT CUSH (INCLS 6, 23, 24, 28-30, 34, 37-40, 42-44, 54) DN (W2E, KB6) (EXC KA1) 2009-2009 01
049 ГАЙКА, D/SEAT BELT (BKL SI) (ЧАСТЬ OF 53) 2009-2010
050 PAD, F/SEAT CUSH FRT EXTN 2009-2010
051 15947251 COVER, D/SEAT INR RECL FIN (INCLS 52) (EBONY) DN (195, 315) 2009-2009 01
051 25908341 COVER, D/SEAT INR RECL FIN (INCLS 52) (TITANIUM) DM, DN (84I) 2009-2009 01
052 CLIP, D/SEAT (ЧАСТЬ OF 51) 2009-2010
053 19181819 BELT KIT, D/SEAT (BKL SI) (INCLS 49) (EBONY) DN (195, 315) 2009-2009 01
053 19181821 BELT KIT, D/SEAT (BKL SI) (INCLS 49) (TITANIUM) DN (W2E, AL2, A45, KB6, 845) (EXC KA1) 2009-2009 01
054 ГАЙКА, D/SEAT (ЧАСТЬ OF 48) 2009-2010
055 25828643 БОЛТ, F/SEAT D69 2009-2009 04
056 25994775 BRACKET, D/SEAT ADJR MEMORY MDL DM, DN 2009-2010 01
057 20793341 ВЕНТИЛЯТОР, D/SEAT CUSH VENTILATION HEAT COOL DN (KB6) (EXC KA1) 2009-2009 01
058 COVER, D/SEAT CUSH DN 2009-2010
