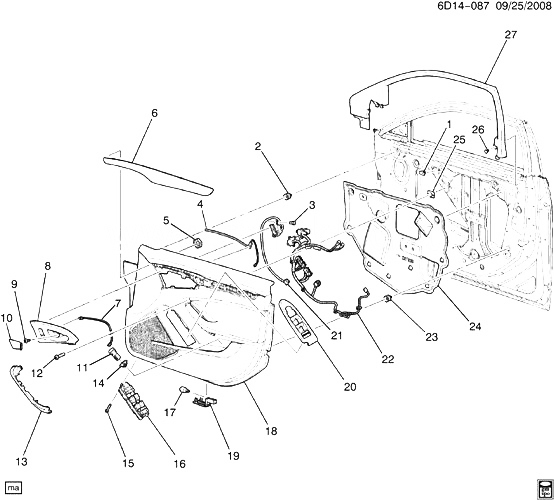

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11570654 |
ГАЙКА, FRT S/D TR (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) |
D69 |
2009-2009 |
02 |
| 002 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (ЧАСТЬ OF 18)
|
2009-2010 |
03 |
|
| 003 |
|
БОЛТ - HEX WASHER HEAD, M7X1.0X20.0, GM6202M STL, GMW3200 (ЧАСТЬ OF 18) |
|
2009-2010 |
AR |
| 004 |
15243683 |
ЛАМПА, FRT S/D WRNG (ЧАСТЬ OF 18) (FRT LIGHT PIPE)
| D69 (TSQ) |
2009-2010 |
02 |
|
| 005 |
11503417 |
ГАЙКА, M6.3 STMPD TYPE SR ZC (ЧАСТЬ OF 18) |
|
2009-2010 |
AR |
| 006 |
15243589 |
APPLIQUE, FRT S/D T/PNL (ЧАСТЬ OF 18) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER)
| DR69 (B19, DL7, DR5) (EXPORT) |
2009-2009 |
01 |
|
| 007 |
25856525 |
ЛАМПА, RR S/D WRNG (ЧАСТЬ OF 18) (LED PIN SPOT) (14.691)
| DM, DN, DR69 (TSQ) |
2009-2010 |
02 |
|
| 008 |
|
BEZEL, FRT S/D I/S HDL (ЧАСТЬ OF 18) |
|
2009-2010 |
|
| 009 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR)
|
2009-2010 |
01 |
|
| 010 |
15871924 |
COVER, FRT S/D PULL HDL (EBONY)
| D69 (19I) |
2009-2009 |
01 |
|
| 010 |
15871928 |
COVER, FRT S/D PULL HDL (CASHMERE)
| DR (39I) (EXPORT) |
2009-2009 |
01 |
|
| 010 |
25914600 |
COVER, FRT S/D PULL HDL (TITANIUM) |
D69 (84I) |
2009-2009 |
01 |
| 011 |
25796933 |
SWITCH, R/CMPT LID REL (ЧАСТЬ OF 18) (ACDelco #D1417G)
| D69 |
2009-2010 |
01 |
|
| 012 |
03539184 |
БОЛТ, FRT S/D PULL HDL (ATTACH TO NUT IN SHT MTL) (14.683) |
D69 |
2009-2009 |
04 |
| 013 |
25927094 |
CAP, FRT S/D PULL HDL БОЛТ (EBONY)
| D69 (19I) |
2009-2009 |
01 |
|
| 013 |
25927098 |
CAP, FRT S/D PULL HDL БОЛТ (CASHMERE)
| DR69 (39I) (EXPORT) |
2009-2009 |
01 |
|
| 013 |
25927110 |
CAP, FRT S/D PULL HDL БОЛТ (TITANIUM) |
D69 (84I) |
2009-2009 |
01 |
| 014 |
15867905 |
BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (EBONY) |
D69 (19I) |
2009-2009 |
01 |
| 014 |
15867906 |
BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (GRAY) |
D69 (89I) |
2009-2009 |
01 |
| 014 |
15867907 |
BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (CASHMERE) |
DR69 (A45, 39I) (EXPORT) |
2009-2010 |
01 |
| 014 |
25923398 |
BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (LT TITANIUM) |
DR69 (84I) (EXPORT) |
2009-2009 |
01 |
| 015 |
11561274 |
БОЛТ, FRT S/D WDO SW (ЧАСТЬ OF 18) (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (16.263) |
DR69 (EXPORT) |
2009-2009 |
03 |
| 016 |
25783501 |
SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) |
DR69 (D26) (EXPORT) |
2009-2009 |
01 |
| 016 |
25783501 |
SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) (10.485) |
DR69 (D26) (EXPORT) |
2009-2009 |
01 |
| 017 |
19115808 |
BULB, FRT S/D C/LP (ЧАСТЬ OF 18, 19) (8.991) (ACDelco #19115808) |
D |
2009-2010 |
02 |
| 018 |
20759439 |
TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) |
DR69 (A45, B19, D26, TSQ, 19I) (EXPORT) |
2009-2009 |
01 |
| 018 |
20759440 |
TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) |
DR (A45, B19, D26, TSQ, 84I) (EXPORT) |
2009-2009 |
01 |
| 018 |
20759441 |
TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) |
DR69 (A45, B19, D26, TSQ, 39I) (EXPORT) |
2009-2009 |
01 |
| 018 |
20759442 |
TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) |
DR69 (A45, D26, TSQ, 19I) (EXC B19) (EXPORT) |
2009-2009 |
01 |
| 018 |
20759443 |
TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) |
DR (A45, D26, TSQ, 84I) (EXC B19) (EXPORT) |
2009-2009 |
01 |
| 018 |
20759444 |
TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) |
DR69 (A45, D26, TSQ, 39I) (EXC B19) (EXPORT) |
2009-2009 |
01 |
| 019 |
10359030 |
ЛАМПА, CTSY (S/D ЛАМПА) (INCLS 17) (ЧАСТЬ OF 18) |
D69 |
2009-2010 |
04 |
| 020 |
15867899 |
BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (EBONY) |
DR69 (D26, 19I) (EXPORT) |
2009-2009 |
01 |
| 020 |
15867901 |
BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (CASHMERE) |
DR69 (D26, 39I) (EXPORT) |
2009-2009 |
01 |
| 020 |
25920926 |
BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (LT TITANIUM) |
DR69 (D26, 84I) (EXPORT) |
2009-2009 |
01 |
| 021 |
25898136 |
SWITCH, D/SEAT ADJR MEMORY (ЧАСТЬ OF 18) (ARGENT) |
DR (A45) (EXPORT) |
2009-2010 |
01 |
| 022 |
25857259 |
HARNESS, FRT S/D WRG (ЧАСТЬ OF 18) |
DR (A45, DL7, TSQ) (EXPORT) |
2009-2009 |
01 |
| 022 |
25857265 |
HARNESS, FRT S/D WRG (ЧАСТЬ OF 18) |
DR69 (A45, D26, TSQ) (EXPORT) |
2009-2009 |
01 |
| 022 |
25857265 |
HARNESS, FRT S/D WRG (ЧАСТЬ OF 18) |
DR (A45, DL7, TSQ) (EXPORT) |
2009-2009 |
01 |
| 023 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (ЧАСТЬ OF 18)
|
2009-2010 |
05 |
|
| 024 |
20794761 |
DEFLECTOR, FRT S/D WAT
| D69 |
2009-2009 |
01 |
|
| 025 |
20310739 |
ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690)
| D69 |
2009-2009 |
04 |
|
| 026 |
20699808 |
RETAINER, FRT S/D G/MLDG (PUSH IN) (ЧАСТЬ OF 27) (BLACK) (12.0MM) (X-MAS TREE) (14.875)
| D |
2009-2009 |
04 |
|
| 027 |
25846022 |
MOLDING, FRT S/D GARN (INCLS 26) (EBONY)
| D69 |
2009-2009 |
01 |
|
