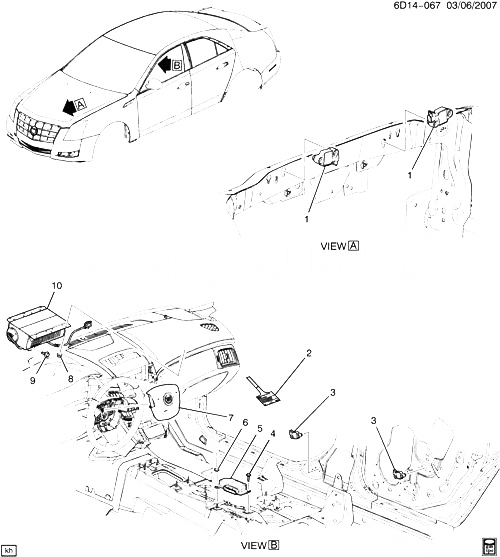

(6D14-067) - 2009-2010 DM,DN,DR69 INFLATABLE RESTRAINT SYSTEM/DRIVER PASSENGER CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15278534 SENSOR, F/END INFL RST DISCRM D69 2008-2009 02
002 21996989 TAG, INFL RST I/P MDL CAUTION (HANGING) D69 2008-2010 01
003 15278533 SENSOR, INFL RST SI IMP D69 2008-2009 04
004 БОЛТ, INFL RST DIAGN ENGY RESV MDL 2008-2010
004 11609989 БОЛТ, INFL RST DIAGN ENGY RESV MDL (SDM CAST GROUNDING ATTACHMENT) (M6X1X25, 15 THD, 17 OD) (8.900) D 2008-2009 04
005 20767247 МОДУЛЬ, INFL RST SEN DIAGN (LABELED 20767247) (FOR 1ST DES SEE 25922183) (FOR 3RD DES SEE 20795278) D69 (2ND DES) 2009-2009 01
005 20795278 МОДУЛЬ, INFL RST SEN DIAGN (LABELED 20795278) (FOR 1ST DES SEE 25922183) (FOR 2ND DES SEE 20767247) D69 (3RD DES) 2009-2009 01
005 25922183 МОДУЛЬ, INFL RST SEN DIAGN (LABELED 25922183) (FOR 2ND DES SEE 20767247) (FOR 3RD DES SEE 20795278) D69 (1ST DES) 2009-2009 01
006 ГАЙКА, INFL RST DIAGN ENGY RESV MDL 2008-2010
006 11561645 ГАЙКА, INFL RST DIAGN ENGY RESV MDL (SDM CASE GROUNDING ATTACHMENT) (M6X1, 3.45THK, 13.5 OD) (8.915) D 2008-2009 02
007 25943875 МОДУЛЬ, STRG WHL INFL RST (EBONY) D69 (19I, 31I, 84I) 2009-2009 01
007 25943876 МОДУЛЬ, STRG WHL INFL RST (COCOA) DM (39I) 2009-2009 01
007 25943876 МОДУЛЬ, STRG WHL INFL RST (COCOA) DR (39I) (EXPORT) 2009-2009 01
008 ГАЙКА, INFL RST I/P MDL 2008-2010
008 15685170 ГАЙКА, INFL RST I/P MDL (PSIR МОДУЛЬ TO I/P RETAINER) (M6X1.0, 19.0MM OD) (8.917) DM 2008-2009 06
008 15685170 ГАЙКА, INFL RST I/P MDL (PSIR МОДУЛЬ TO I/P RETAINER) (M6X1.0, 19.0MM OD) (8.917) DN 2009-2009 06
008 15685170 ГАЙКА, INFL RST I/P MDL (PSIR МОДУЛЬ TO I/P RETAINER) (M6X1.0, 19.0MM OD) (8.917) DR (EXPORT) 2009-2009 06
009 11561388 БОЛТ, I/P INFL RST MDL (M6X1X20, 11 THD, 17 OD) (8.900) DM, DN, DR 2009-2009 01
010 25992053 МОДУЛЬ, I/P INFL RST D69 2009-2009 01
