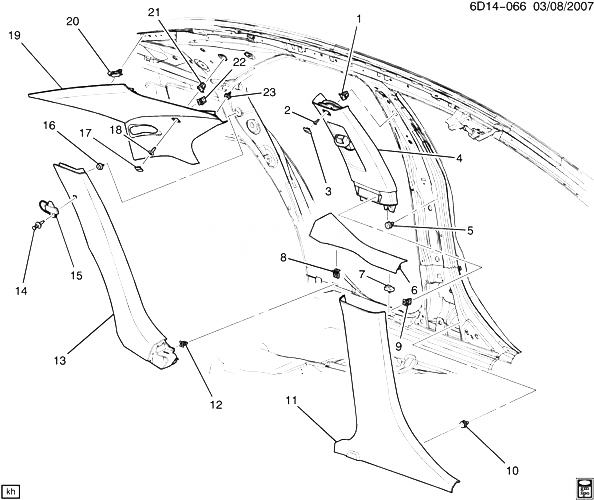

(6D14-066) - 2009-2010 DM,DN,DR69 ОТДЕЛКА/CENTER ПАНЕЛЬ ЗАДНЕЙ СТОЙКИ КУЗОВА QUARTER CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11609651 CLIP, C/PLR UPR T/PNL (ЧАСТЬ OF 4) (M21.8X15.0X20.5) (14.731) D69 2008-2010 02
002 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (ЧАСТЬ OF 4) 2008-2010 01
003 15871733 PLATE, INFL RST AIRBAG NA (ЧАСТЬ OF 4) (CASHMERE) (USED FOR C/PLR TRIM) D69 (39I) 2008-2009 02
003 15871733 PLATE, INFL RST AIRBAG NA (ЧАСТЬ OF 4) (CASHMERE) (USED FOR C/PLR TRIM) DN (31I) 2009-2009 02
003 25910759 PLATE, INFL RST AIRBAG NA (ЧАСТЬ OF 4) (TITANIUM) DM, DN (19I, 84I) 2009-2009 02
003 25910759 PLATE, INFL RST AIRBAG NA (ЧАСТЬ OF 4) (TITANIUM) DR (19I, 84I) (EXPORT) 2009-2009 02
004 25862282 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (CASHMERE) DM (39I) 2008-2009 01
004 25862282 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (CASHMERE) DN (31I) 2009-2009 01
004 25862282 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
004 25908300 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (CASHMERE) DM (39I) 2008-2009 01
004 25908300 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (CASHMERE) DN (31I) 2009-2009 01
004 25908300 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
004 25910757 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (TITANIUM) DM, DN69 (19I, 84I) 2009-2009 01
004 25910757 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (TITANIUM) DR69 (19I, 84I) (EXPORT) 2009-2009 01
004 25910758 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (TITANIUM) DM, DN69 (19I, 84I) 2009-2009 01
004 25910758 PANEL, C/PLR UPR TR (INCLS 1-3, 5) (TITANIUM) DR69 (19I, 84I) (EXPORT) 2009-2009 01
005 11561653 RETAINER, C/PLR UPR T/PNL (ЧАСТЬ OF 4) (YELLOW) (8.5MM DIA HOLE) (BIRDS BEAK DOUBLE) (14.630) D69 2008-2009 04
006 25865763 PLATE, RR S/D SILL TR (INCLS 7, 8) (EBONY) D69 (19I) 2008-2009 01
006 25865764 PLATE, RR S/D SILL TR (INCLS 7, 8) (EBONY) D69 (19I) 2008-2009 01
006 25865767 PLATE, RR S/D SILL TR (INCLS 7, 8) (CASHMERE) DM (39I) 2008-2009 01
006 25865767 PLATE, RR S/D SILL TR (INCLS 7, 8) (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
006 25865768 PLATE, RR S/D SILL TR (INCLS 7, 8) (CASHMERE) DM69 (39I) 2008-2009 01
006 25865768 PLATE, RR S/D SILL TR (INCLS 7, 8) (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
006 25910749 PLATE, RR S/D SILL TR (INCLS 7, 8) (TITANIUM) D69 (84I) 2009-2009 01
006 25910750 PLATE, RR S/D SILL TR (INCLS 7, 8) (TITANIUM) D69 (84I) 2009-2009 01
007 25672428 RETAINER, RR S/D SILL TR PLT (PUSH IN) (ЧАСТЬ OF 6) (7 X 14MM HOLE) (RECTANGLE) (11.175) D69 2008-2009 04
008 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 6) 2008-2010 01
009 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 11) 2008-2010 02
010 11561653 RETAINER, C/PLR LWR RR TR PNL (PUSH IN) (ЧАСТЬ OF 11) (YELLOW) (8.5MM DIA HOLE) (BIRDS BEAK DOUBLE) (14.630) D69 2008-2009 08
011 25867240 PANEL, C/PLR LWR TR (INCLS 9, 10) (EBONY) DM (19I) 2008-2009 01
011 25867240 PANEL, C/PLR LWR TR (INCLS 9, 10) (EBONY) DN (19I, 31I) 2009-2009 01
011 25867240 PANEL, C/PLR LWR TR (INCLS 9, 10) (EBONY) DR (19I) (EXPORT) 2009-2009 01
011 25994807 PANEL, C/PLR LWR TR (INCLS 9, 10) (EBONY) DM (19I) 2008-2009 01
011 25994807 PANEL, C/PLR LWR TR (INCLS 9, 10) (EBONY) DN (19I, 31I) 2009-2009 01
011 25994807 PANEL, C/PLR LWR TR (INCLS 9, 10) (EBONY) DR (19I) (EXPORT) 2009-2009 01
011 25994811 PANEL, C/PLR LWR TR (INCLS 9, 10) (CASHMERE) DM (39I) 2008-2009 01
011 25994811 PANEL, C/PLR LWR TR (INCLS 9, 10) (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
011 25994812 PANEL, C/PLR LWR TR (INCLS 9, 10) (CASHMERE) DM (39I) 2008-2009 01
011 25994812 PANEL, C/PLR LWR TR (INCLS 9, 10) (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
011 25994813 PANEL, C/PLR LWR TR (INCLS 9, 10) (TITANIUM) DM, DN69 (84I) 2009-2009 01
011 25994813 PANEL, C/PLR LWR TR (INCLS 9, 10) (TITANIUM) DR69 (84I) (EXPORT) 2009-2009 01
011 25994814 PANEL, C/PLR LWR TR (INCLS 9, 10) (TITANIUM) DM, DN69 (84I) 2009-2009 01
011 25994814 PANEL, C/PLR LWR TR (INCLS 9, 10) (TITANIUM) DR69 (84I) (EXPORT) 2009-2009 01
012 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 13) 2008-2010 01
013 15860119 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (CASHMERE) (15.100) DR (39I) (EXPORT) 2009-2009 01
013 15860119 PANEL, QTR LWR RR TR (INCLS 12, 14-16) (CASHMERE) DM (39I) 2008-2009 01
013 15860120 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (CASHMERE) (15.100) DR (39I) (EXPORT) 2009-2009 01
013 15860120 PANEL, QTR LWR RR TR (INCLS 12, 14-16) (CASHMERE) DM (39I) 2008-2009 01
013 25861618 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (EBONY) (15.100) DN (19I, 31I) 2009-2009 01
013 25861618 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (EBONY) (15.100) DR (19I) (EXPORT) 2009-2009 01
013 25861618 PANEL, QTR LWR RR TR (INCLS 12, 14-16) (EBONY) DM (19I) 2008-2009 01
013 25931758 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (EBONY) DN (19I, 31I) 2009-2009 01
013 25931758 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (EBONY) DR (19I) (EXPORT) 2009-2009 01
013 25931758 PANEL, QTR LWR RR TR (INCLS 12, 14-16) (EBONY) (14.731) DM (19I) 2008-2009 01
013 25931763 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (TITANIUM) DM, DN69 (84I) 2009-2009 01
013 25931763 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (TITANIUM) DR69 (84I) (EXPORT) 2009-2009 01
013 25931764 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (TITANIUM) DM, DN69 (84I) 2009-2009 01
013 25931764 PANEL, BODY L/PLR LWR TR (INCLS 12, 14-16) (TITANIUM) DR69 (84I) (EXPORT) 2009-2009 01
014 20510029 RETAINER, R/SEAT SHLDR BELT GDE (ЧАСТЬ OF 13) (12.118) D69 2008-2009 02
015 22584100 GUIDE, R/SEAT SHLDR BELT (ЧАСТЬ OF 13) (BLACK) DM (19I, 39I, 84I) 2009-2009 02
015 22584100 GUIDE, R/SEAT SHLDR BELT (ЧАСТЬ OF 13) (BLACK) DN (19I, 31I) (EXPORT) 2009-2009 02
015 22584100 GUIDE, R/SEAT SHLDR BELT (ЧАСТЬ OF 13) (BLACK) DR (19I, 39I, 84I) (EXPORT) 2009-2009 02
016 20510029 RETAINER, R/SEAT SHLDR BELT GDE (ЧАСТЬ OF 13) (12.118) D69 2008-2009 02
017 15871733 PLATE, INFL RST AIRBAG NA (ЧАСТЬ OF 19) (CASHMERE) (USED FOR C/PLR TRIM) D69 (39I) 2008-2009 02
017 15871733 PLATE, INFL RST AIRBAG NA (ЧАСТЬ OF 19) (CASHMERE) (USED FOR C/PLR TRIM) DN (31I) 2009-2009 02
017 25910759 PLATE, INFL RST AIRBAG NA (ЧАСТЬ OF 19) (TITANIUM) DM, DN (19I, 84I) 2009-2009 02
017 25910759 PLATE, INFL RST AIRBAG NA (ЧАСТЬ OF 19) (TITANIUM) DR (19I, 84I) (EXPORT) 2009-2009 02
018 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (ЧАСТЬ OF 19) 2008-2010 01
019 25979331 PANEL, QTR UPR TR (INCLS 17, 18, 20-23) (TITANIUM) D69 (19I, 84I) 2009-2009 01
019 25979332 PANEL, QTR UPR TR (INCLS 17, 18, 20-23) (TITANIUM) D69 (19I, 84I) 2009-2009 01
019 25979333 PANEL, QTR UPR TR (INCLS 17, 18, 20-23) (CASHMERE) DM (39I) 2008-2009 01
019 25979333 PANEL, QTR UPR TR (INCLS 17, 18, 20-23) (CASHMERE) DN (39I) 2009-2009 01
019 25979333 PANEL, QTR UPR TR (INCLS 17, 18, 20-23) (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
019 25979334 PANEL, QTR UPR TR (INCLS 17, 18, 20-23) (CASHMERE) DM (39I) 2009-2009 01
019 25979334 PANEL, QTR UPR TR (INCLS 17, 18, 20-23) (CASHMERE) DN (39I) 2009-2009 01
019 25979334 PANEL, QTR UPR TR (INCLS 17, 18, 20-23) (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
020 11570802 RETAINER, QTR UPR T/PNL CLIP (ЧАСТЬ OF 19) (70.4X13) (TETHER RETAINER) D69 2008-2009 02
021 11609651 CLIP, QTR UPR T/PNL (ЧАСТЬ OF 19) (M21.8X15.0X20.5) (14.731) D69 2008-2009 02
022 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 19) 2008-2010 01
023 11561654 RETAINER, QTR UPR T/PNL (PUSH IN) (ЧАСТЬ OF 19) (PLAIN) (8.5MM DIA HOLE) (BIRDS BEAK SINGLE) (12.800) D69 2008-2010 06
