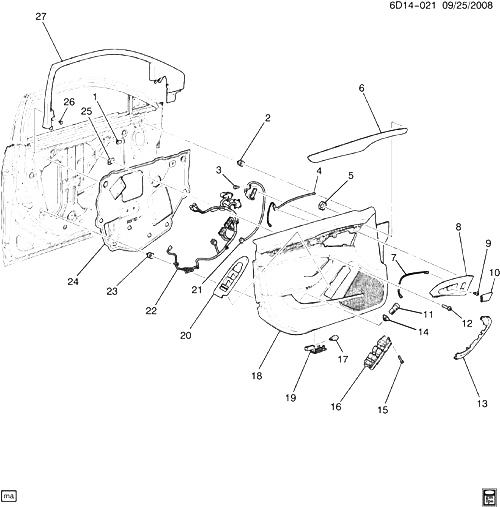

(6D14-021) - 2009-2010 DM,DN69 ОБЛИЦОВКА ПЕРЕДНЕЙ ВОДИТЕЛЬСКОЙ ДВЕРИ (MEMORY A45, ЛАМПА PACKAGE TSQ) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11570654 ГАЙКА, FRT S/D TR (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) D69 2008-2009 02
002 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (ЧАСТЬ OF 18) 2008-2010 03
003 БОЛТ - HEX WASHER HEAD, M7X1.0X20.0, GM6202M STL, GMW3200 (ЧАСТЬ OF 18) 2008-2010 AR
004 15243683 ЛАМПА, FRT S/D WRNG (ЧАСТЬ OF 18) (FRT LIGHT PIPE) D69 (TSQ) 2008-2010 02
005 11503417 ГАЙКА, M6.3 STMPD TYPE SR ZC (ЧАСТЬ OF 18) 2008-2010 AR
006 APPLIQUE, FRT S/D T/PNL (ЧАСТЬ OF 18) 2009-2010
006 15243588 APPLIQUE, FRT S/D T/PNL (ЧАСТЬ OF 18) (SAPELE) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) DM69 (B19) 2008-2009 01
006 15243588 APPLIQUE, FRT S/D T/PNL (ЧАСТЬ OF 18) (SAPELE) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) DR69 (B19) (EXPORT) 2009-2009 01
007 25856525 ЛАМПА, FRT S/D WRNG (ЧАСТЬ OF 18) (LED PIN SPOT) DM69 (B19, DR5, TSQ, UHA, UHF) 2008-2010 02
007 25856525 ЛАМПА, FRT S/D WRNG (ЧАСТЬ OF 18) (LED PIN SPOT) DN69 (A45, DR5, DL7, TSQ) 2009-2010 02
008 BEZEL, FRT S/D I/S HDL (ЧАСТЬ OF 18) 2009-2010
009 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR) 2008-2010 01
010 15871923 COVER, FRT S/D PULL HDL (EBONY) D69 (19I) 2008-2009 01
010 15871927 COVER, FRT S/D PULL HDL (CASHMERE) DM (39I) 2008-2009 01
010 15871927 COVER, FRT S/D PULL HDL (CASHMERE) DN (31I) 2009-2009 01
010 15871927 COVER, FRT S/D PULL HDL (CASHMERE) DR (39I) (EXPORT) 2009-2009 01
010 25914599 COVER, FRT S/D PULL HDL (TITANIUM) D69 (84I) 2009-2009 01
011 25796933 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 18) (ACDelco #D1417G) D69 2008-2010 01
012 03539184 БОЛТ, FRT S/D PULL HDL (ATTACH TO NUT IN SHT MTL) (14.683) D69 2008-2009 04
013 25927093 CAP, FRT S/D PULL HDL БОЛТ (EBONY) D69 (19I) 2008-2009 01
013 25927097 CAP, FRT S/D PULL HDL БОЛТ (CASHMERE) D69 (39I) 2008-2009 01
013 25927097 CAP, FRT S/D PULL HDL БОЛТ (CASHMERE) DN69 (31I) 2009-2009 01
013 25927109 CAP, FRT S/D PULL HDL БОЛТ (TITANIUM) D69 (84I) 2009-2009 01
014 15867905 BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (EBONY) D69 (19I) 2009-2009 01
014 15867906 BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (GRAY) D69 (89I) 2009-2009 01
014 15867907 BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (CASHMERE) DM69 (A45, 39I) 2009-2009 01
014 15867907 BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (CASHMERE) DN69 (31I) 2009-2009 01
014 15867907 BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (CASHMERE) DR69 (A45, 39I) (EXPORT) 2009-2010 01
014 25923398 BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (LT TITANIUM) DM, DN69 (84I) 2009-2009 01
014 25923398 BEZEL, R/CMPT LID REL SW (ЧАСТЬ OF 18) (LT TITANIUM) DR69 (84I) (EXPORT) 2009-2009 01
015 11561274 БОЛТ, FRT S/D WDO SW (ЧАСТЬ OF 18) (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (16.263) DM69 2008-2009 03
015 11561274 БОЛТ, FRT S/D WDO SW (ЧАСТЬ OF 18) (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (16.263) DN 2009-2009 03
015 11561274 БОЛТ, FRT S/D WDO SW (ЧАСТЬ OF 18) (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (16.263) DR69 (EXPORT) 2009-2009 03
016 25783499 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) DM (DL7) 2008-2009 01
016 25783499 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) (10.485) DM (DL7) 2008-2009 01
016 25783500 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) DM (A45, DR5, UHA, UHF) 2009-2009 01
016 25783500 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) DN (DR5) 2009-2009 01
016 25783500 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) (10.485) DM (A45, DR5, UHA, UHF) 2009-2009 01
016 25783500 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) (10.485) DN (DR5) 2009-2009 01
016 25783502 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) DR69 (D26) (EXPORT) 2009-2009 01
016 25783502 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) (10.485) DR69 (D26) (EXPORT) 2009-2009 01
016 25855132 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) DM (DR5) (EXC UHA, UHF) 2009-2009 01
016 25855132 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) (10.485) DM (DR5) (EXC UHA, UHF) 2009-2009 01
016 25855134 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) DM (DL7, UA6) (EXC UHA, UHB, UHC, UHD, UHF) 2009-2009 01
016 25855134 SWITCH, DR LK SI WDO (ЧАСТЬ OF 18) (ARGENT) (10.485) DM (DL7, UA6) (EXC UHA, UHB, UHC, UHD, UHF) 2009-2009 01
017 19115808 BULB, FRT S/D C/LP (ЧАСТЬ OF 18, 19) (8.991) (ACDelco #19115808) D 2008-2010 02
018 20759363 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DN69 (A45, DR5, TSQ, 19I) 2009-2009 01
018 20759364 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DN69 (A45, DR5, TSQ, 84I) 2009-2009 01
018 20759365 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DN69 (A45, DR5, TSQ, 31I) 2009-2009 01
018 20759366 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, B19, DR5, TSQ, UHA, UHF, 19I) 2009-2009 01
018 20759367 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, B19, DR5, TSQ, UHA, UHF, 84I) 2009-2009 01
018 20759368 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, B19, DR5, TSQ, UHA, UHF, 39I) 2009-2009 01
018 20759369 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, DR5, TSQ, UHA, UHF, 19I) (EXC B19) 2009-2009 01
018 20759370 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, DR5, TSQ, UHA, UHF, 84I) (EXC B19) 2009-2009 01
018 20759371 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, DR5, TSQ, UHA, UHF, 39I) (EXC B19) 2009-2009 01
018 20759378 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DN69 (A45, DL7, TSQ, 19I) 2009-2009 01
018 20759379 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DN69 (A45, DL7, TSQ, 84I) 2009-2009 01
018 20759380 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DN69 (A45, DL7, TSQ, 31I) 2009-2009 01
018 20759381 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, B19, DL7, TSQ, UA2, 19I) 2009-2009 01
018 20759381 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, B19, DL7, TSQ, UA6, UHA, UHB, UHC, UHD, UHF, 19I) 2009-2009 01
018 20759382 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, B19, DL7, TSQ, UA2, 84I) 2009-2009 01
018 20759382 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, B19, DL7, TSQ, UA6, UHA, UHB, UHC, UHD, UHF, 84I) 2009-2009 01
018 20759383 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, B19, DL7, TSQ, UA2, 39I) 2009-2009 01
018 20759383 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, B19, DL7, TSQ, UA6, UHA, UHB, UHC, UHD, UHF, 39I) 2009-2009 01
018 20759384 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, DL7, TSQ, UA2, 19I) (EXC B19) 2009-2009 01
018 20759384 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, DL7, TSQ, UA6, UHA, UHB, UHC, UHD, UHF, 19I) (EXC B19) 2009-2009 01
018 20759385 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, DL7, TSQ, UA2, 84I) (EXC B19) 2009-2009 01
018 20759385 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, DL7, TSQ, UA6, UHA, UHB, UHC, UHD, UHF, 84I) (EXC B19) 2009-2009 01
018 20759386 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, DL7, TSQ, UA2, 39I) (EXC B19) 2009-2009 01
018 20759386 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, DL7, TSQ, UA6, UHA, UHB, UHC, UHD, UHF, 39I) (EXC B19) 2009-2009 01
018 20759427 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DR69 (A45, B19, D26, TSQ, 19I) (EXPORT) 2009-2009 01
018 20759428 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DR (A45, B19, D26, TSQ, 84I) (EXPORT) 2009-2009 01
018 20759429 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DR69 (A45, B19, D26, TSQ, 39I) (EXPORT) 2009-2009 01
018 20759430 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DR69 (A45, D26, TSQ, 19I) (EXC B19) (EXPORT) 2009-2009 01
018 20759431 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DR (A45, D26, TSQ, 84I) (EXC B19) (EXPORT) 2009-2009 01
018 20759432 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DR69 (A45, D26, TSQ, 39I) (EXC B19) (EXPORT) 2009-2009 01
018 20759455 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, B19, DR5, TSQ, 19I) (EXC UHA, UHF) 2009-2009 01
018 20759456 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, B19, DR5, TSQ, 84I) (EXC UHA, UHF) 2009-2009 01
018 20759457 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, B19, DR5, TSQ, 39I) (EXC UHA, UHF) 2009-2009 01
018 20759458 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, DR5, TSQ, 19I) (EXC B19, UHA, UHF) 2009-2009 01
018 20759459 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, DR5, TSQ, 84I) (EXC B19, UHA, UHF) 2009-2009 01
018 20759460 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, DR5, TSQ, 39I) (EXC B19, UHA, UHF) 2009-2009 01
018 20759471 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, B19, DL7, TSQ, UA6, 19I) (EXC UHA, UHB, UHC, UHD, UHF) 2009-2009 01
018 20759472 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, B19, DL7, TSQ, UA6, 84I) (EXC UHA, UHB, UHC, UHD, UHF) 2009-2009 01
018 20759473 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, B19, DL7, TSQ, UA6, 39I) (EXC UHA, UHB, UHC, UHD, UHF) 2009-2009 01
018 20759474 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DM69 (A45, DL7, TSQ, UA6, 19I) (EXC B19, UHA, UHB, UHC, UHD, UHF) 2009-2009 01
018 20759475 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (TITANIUM) DM69 (A45, DL7, TSQ, UA6, 84I) (EXC B19, UHA, UHB, UHC, UHD, UHF) 2009-2009 01
018 20759476 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, DL7, TSQ, UA6, 39I) (EXC B19, UHA, UHB, UHC, UHD, UHF) 2009-2009 01
018 20802413 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (EBONY) DN69 (A45, DR5, TSQ, 19I) (EXC B18) 2009-2009 01
018 20802510 TRIM, FRT S/D (INCLS 2-8, 11, 14-17, 19-23) (CASHMERE) DM69 (A45, DR5, TSQ, 39I) (EXC B19, UHA, UHF) 2009-2009 01
019 10359030 ЛАМПА, CTSY (S/D ЛАМПА) (INCLS 17) (ЧАСТЬ OF 18) D69 2008-2010 04
020 15867890 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (EBONY) D69 (DR5, 19I) 2008-2009 01
020 15867891 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (GRAY) DM, DN (DR5, 89I) 2009-2009 01
020 15867892 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (CASHMERE) DM (39I) 2008-2009 01
020 15867892 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (CASHMERE) DN (DR5, 31I) 2009-2009 01
020 15867893 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (EBONY) DM (DL7, 19I) 2008-2009 01
020 15867893 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (EBONY) DN (DL7, 19I) 2009-2009 01
020 15867894 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (GRAY) DM69 (DL7, 89I) 2008-2009 01
020 15867894 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (GRAY) DN (DL7, 89I) 2009-2009 01
020 15867895 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (CASHMERE) DM69 (DL7, 39I) 2008-2009 01
020 15867895 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (CASHMERE) DN (DL7, 31I) 2009-2009 01
020 25920925 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (LT TITANIUM) DN (A45, DL7, TSQ, 84I) 2009-2009 01
020 25920929 BEZEL, FRT S/D WDO SW (ЧАСТЬ OF 18) (LT TITANIUM) DM, DN (A45, DR5, TSQ, 84I) 2009-2009 01
021 25898134 SWITCH, D/SEAT ADJR MEMORY (ЧАСТЬ OF 18) (ARGENT) DM, DN (DR5) 2009-2010 01
021 25898136 SWITCH, D/SEAT ADJR MEMORY (ЧАСТЬ OF 18) (ARGENT) DR (A45) (EXPORT) 2009-2010 01
022 25857257 HARNESS, FRT S/D WRG (ЧАСТЬ OF 18) DN (A45, DR5, TSQ) 2009-2009 01
022 25857265 HARNESS, FRT S/D WRG (ЧАСТЬ OF 18) DR69 (A45, D26, TSQ) (EXPORT) 2009-2009 01
023 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (ЧАСТЬ OF 18) 2008-2010 05
024 20794762 DEFLECTOR, FRT S/D WAT D69 2008-2009 01
025 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D69 2008-2009 04
026 20699808 RETAINER, FRT S/D G/MLDG (PUSH IN) (ЧАСТЬ OF 27) (BLACK) (12.0MM) (X-MAS TREE) (14.875) D 2008-2009 04
027 25846021 MOLDING, FRT S/D GARN (INCLS 26) (EBONY) D69 2009-2009 01
