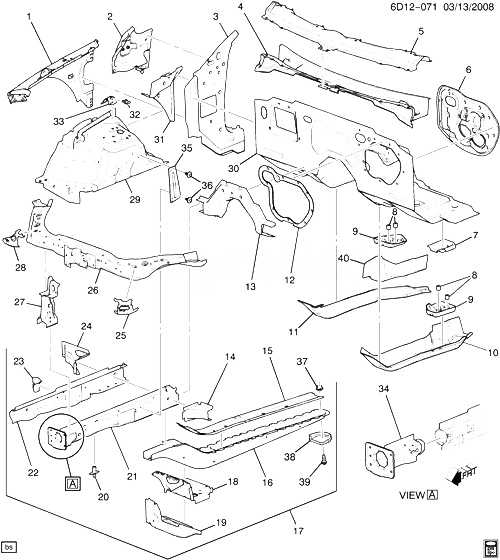

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25811623 |
RAIL, F/CMPT OTR SI UPR
| DM, DN69 |
2009-2010 |
01 |
|
| 001 |
25954300 |
RAIL, F/CMPT OTR SI UPR
| D69 |
2008-2009 |
01 |
|
| 002 |
25878468 |
REINFORCEMENT, BODY H/PLR UPR |
D69 |
2008-2010 |
01 |
| 002 |
25878469 |
REINFORCEMENT, BODY H/PLR UPR |
D69 |
2008-2010 |
01 |
| 003 |
25909945 |
PANEL, BODY H/PLR INR (INCLS 31) |
D69 |
2009-2010 |
01 |
| 003 |
25909946 |
PANEL, BODY H/PLR INR (INCLS 31) |
D69 |
2008-2010 |
01 |
| 004 |
|
PANEL, PLNM LWR |
|
2008-2009 |
|
| 005 |
|
PANEL, W/S FRM PLNM |
|
2008-2009 |
|
| 006 |
25913292 |
BARRIER, BRK PED BRKT SND |
DM69 (MYB, MX0, MX7) |
2008-2009 |
01 |
| 007 |
25696592 |
SUPPORT, PARK BRK FRT CBL |
D |
2008-2009 |
01 |
| 008 |
11518350 |
ГАЙКА, TRANS SUPT (ЧАСТЬ OF 9) (M10X1.5X24MM) |
D |
2008-2009 |
02 |
| 009 |
|
REINFORCEMENT, TRANS SUPT (INCLS 8) |
|
2008-2009 |
|
| 010 |
25719541 |
REINFORCEMENT, TRANS SUPT |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 011 |
25710948 |
REINFORCEMENT, TRANS SUPT |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 012 |
|
REINFORCEMENT, DA PNL (AT STRG COL OPG) |
|
2008-2009 |
|
| 013 |
|
BAR, FLR PNL #1 CR |
|
2008-2009 |
|
| 014 |
|
REINFORCEMENT, FLR PNL #1 C/BAR (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 015 |
|
REINFORCEMENT, F/CMPT S/RL RR (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 016 |
|
RAIL, F/CMPT RR SI (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 017 |
20765259 |
RAIL, F/CMPT SI (INCLS 14-16, 18-24, 37) (BUILT PRIOR TO 01/01/09) (FOR 2ND DES SEE 20818957) (FULL VERSION) |
D69 |
2009-2009 |
01 |
| 017 |
20818956 |
RAIL, F/CMPT SI (INCLS 14-16, 18-24, 37) (FULL VERSION) |
DM69 |
2008-2010 |
01 |
| 017 |
20818957 |
RAIL, F/CMPT SI (INCLS 14-16, 18-24, 37) (BUILT 01/01/09 AFTER) (FOR 1ST DES SEE 25971985) (FULL VERSION) |
D69 |
2009-2009 |
01 |
| 018 |
|
EXTENSION, FLR PNL #1 C/BAR (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 019 |
|
REINFORCEMENT, FLR PNL #1 C/BAR OTR (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 020 |
|
ГАЙКА, ENG MT C/MBR (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 021 |
|
PLATE, F/CMPT S/RL (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 022 |
|
RAIL, F/CMPT OTR SI LWR (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 023 |
|
BRACKET, FRT W/H LWR FRT PNL (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 024 |
|
EXTENSION, F/CMPT OTR S/RL (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 025 |
15900643 |
BRACKET, F/END UPR TIE BAR (ЧАСТЬ OF 26)
| D69 |
2008-2010 |
01 |
|
| 026 |
25999277 |
BAR, F/END UPR TIE (INCLS 25, 28)
| DM, DN |
2009-2010 |
01 |
|
| 027 |
25922923 |
REINFORCEMENT, F/END UPR TIE BAR |
D69 |
2008-2010 |
01 |
| 027 |
25922924 |
REINFORCEMENT, F/END UPR TIE BAR
| D69 |
2008-2010 |
01 |
|
| 028 |
15900644 |
BRACKET, F/END UPR TIE BAR (ЧАСТЬ OF 26)
| D69 |
2008-2010 |
01 |
|
| 029 |
25932610 |
PANEL, FRT W/H (INCLS 33)
| D69 |
2008-2010 |
01 |
|
| 029 |
25932611 |
PANEL, FRT W/H (INCLS 33) |
D69 |
2008-2010 |
01 |
| 030 |
|
PANEL, DA |
|
2008-2009 |
|
| 031 |
|
PANEL, BODY H/PLR INR (ЧАСТЬ OF 3) |
|
2008-2009 |
|
| 032 |
11609990 |
STUD, КАПОТ OPEN ASST ROD BRKT (M8X1.25X20)
| D69 |
2008-2010 |
01 |
|
| 033 |
|
BRACKET, КАПОТ OPEN ASST ROD (ЧАСТЬ OF 29) |
|
2008-2009 |
|
| 034 |
15923685 |
RAIL, F/CMPT SI (FRT/SHORT VERSION)
| D69 |
2008-2009 |
01 |
|
| 034 |
15923686 |
RAIL, F/CMPT SI (FRT/SHORT VERSION)
| D69 |
2008-2009 |
01 |
|
| 035 |
10384299 |
REINFORCEMENT, FRT W/H PNL RR BR |
D69 |
2009-2009 |
01 |
| 036 |
11518808 |
БОЛТ ASM HEX HD CON SPA WS, M6X1.0X20, GMW25M (8.8) STL, GMW3179 (FRT W/H PNL RR BR) |
|
2008-2010 |
04 |
| 037 |
|
ГАЙКА, U/B RR S/RL (ЧАСТЬ OF 17) |
|
2008-2009 |
|
| 038 |
|
INSULATOR, TRANS SUPT |
|
2008-2010 |
|
| 038 |
25825687 |
INSULATOR, TRANS SUPT |
DM69 (MYB, MX7) |
2008-2009 |
02 |
| 039 |
11518625 |
БОЛТ, PAN, M10X1.5X35, 33.5THD, 20 O.D., 10.9, 6138M (TRANS BR BRKT) |
|
2008-2010 |
02 |
| 040 |
25718784 |
EXTENSION, TRANS MT SUPT FRT RAIL (4.083) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
