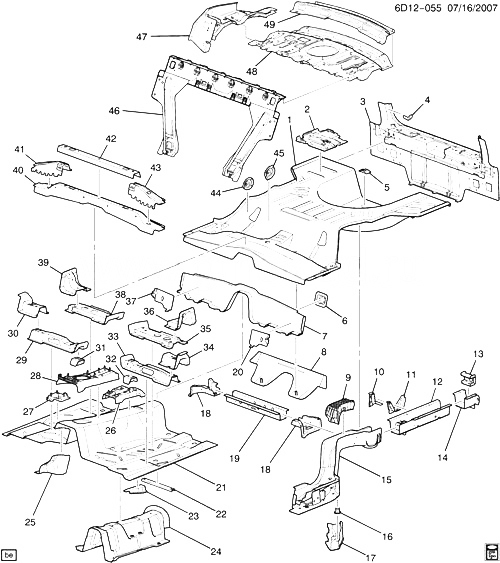

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25883364 |
PANEL, R/FLR (INCLS 5) |
D69 |
2009-2010 |
01 |
| 002 |
25834003 |
TRAY, BAT |
D69 |
2009-2009 |
01 |
| 003 |
25988345 |
PANEL, R/END (INCLS 4)
| D69 |
2008-2010 |
01 |
|
| 004 |
|
BRACKET, R/CMPT SI CPT SUPT (ЧАСТЬ OF 3) |
|
2009-2010 |
|
| 005 |
25650571 |
BRACKET, SPA WHL STOW (ЧАСТЬ OF 1) |
D |
2008-2010 |
01 |
| 006 |
25675853 |
BRACKET, F/TNK |
D |
2008-2010 |
02 |
| 007 |
|
BAR, FLR PNL #4 |
|
2009-2010 |
|
| 008 |
|
PLATE, R/SEAT BELT ANC (BKL SI) |
|
2009-2010 |
|
| 009 |
25859827 |
REINFORCEMENT KIT, R/CMPT FLR PNL RL INTER (INSTRUCTION #19120709) |
D69 |
2008-2010 |
01 |
| 009 |
25859828 |
REINFORCEMENT KIT, R/CMPT FLR PNL RL INTER |
D69 |
2008-2010 |
01 |
| 011 |
15217298 |
EXTENSION, R/FLR PNL RR (ЧАСТЬ OF 15)
| D69 |
2008-2010 |
02 |
|
| 012 |
20777228 |
RAIL, R/CMPT FLR PNL (W/RR SUSP SUPT) (INCLS 13, 14) (ЧАСТЬ OF 15) |
D69 |
2008-2009 |
01 |
| 012 |
20777229 |
RAIL, R/CMPT FLR PNL (W/RR SUSP SUPT) (INCLS 13, 14) (ЧАСТЬ OF 15) |
D69 |
2008-2009 |
01 |
| 013 |
|
REINFORCEMENT, R/CMPT FLR PNL RL EXTN (ЧАСТЬ OF 12, 15) |
|
2009-2010 |
|
| 014 |
25664871 |
EXTENSION, R/CMPT FLR PNL RL (ЧАСТЬ OF 12, 15) (FOR RH OR LH)
| D69 |
2008-2010 |
01 |
|
| 015 |
15929324 |
RAIL, R/CMPT FLR PNL RR (INCLS 11-14, 16, 17)
| D69 |
2008-2009 |
01 |
|
| 015 |
15929325 |
RAIL, R/CMPT FLR PNL RR (INCLS 11-14, 16, 17)
| D69 |
2008-2009 |
01 |
|
| 016 |
11519001 |
ГАЙКА, HEX M16X2.0X37.9, OD 50, SAE1010, PLAIN.TEFLON PER GM6076M (ЧАСТЬ OF 15) (8.899) |
|
2008-2010 |
01 |
| 017 |
25911674 |
REINFORCEMENT, RR SUSP SUPT (ЧАСТЬ OF 15) |
D |
2008-2010 |
01 |
| 017 |
25911675 |
REINFORCEMENT, RR SUSP SUPT (ЧАСТЬ OF 15) |
D |
2008-2010 |
01 |
| 018 |
15251409 |
EXTENSION, FLR PNL #5 C/BAR |
D69 |
2008-2010 |
02 |
| 019 |
15774787 |
BAR, FLR PNL #5 |
D |
2008-2010 |
01 |
| 020 |
|
REINFORCEMENT, FLR PNL #4 C/BAR |
|
2009-2010 |
|
| 021 |
|
PANEL, F/FLR |
|
2009-2010 |
|
| 022 |
25752041 |
REINFORCEMENT, FLR PNL #4 C/BAR |
D69 |
2008-2010 |
01 |
| 023 |
25693149 |
BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) |
D |
2008-2010 |
01 |
| 023 |
25693150 |
BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) |
D |
2008-2010 |
01 |
| 024 |
|
REINFORCEMENT, FLR PNL CTR |
|
2009-2010 |
|
| 025 |
|
PANEL, FLR PNL FIL (AT TUN PNL) |
|
2009-2010 |
|
| 026 |
|
BRACKET, F/FLR CNSL RR |
|
2009-2010 |
|
| 027 |
|
BRACKET, VEH YAW SEN LATL ACCLRM |
|
2009-2010 |
|
| 028 |
|
REINFORCEMENT, FLR PNL AT TUN PNL |
|
2009-2010 |
|
| 029 |
|
BAR, FLR PNL #2 CR |
|
2009-2010 |
|
| 030 |
|
EXTENSION, FLR PNL #2 C/BAR |
|
2009-2010 |
|
| 031 |
|
REINFORCEMENT, FLR PNL #2 C/BAR |
|
2009-2010 |
|
| 032 |
|
REINFORCEMENT, FLR PNL #2 C/BAR |
|
2009-2010 |
|
| 033 |
|
BAR, FLR PNL #2 CR |
|
2009-2010 |
|
| 034 |
|
EXTENSION, FLR PNL #2 C/BAR |
|
2009-2010 |
|
| 035 |
|
BAR, FLR PNL #3 CR |
|
2009-2010 |
|
| 036 |
|
EXTENSION, FLR PNL #3 C/BAR |
|
2009-2010 |
|
| 037 |
|
REINFORCEMENT, FLR PNL #4 C/BAR |
|
2009-2010 |
|
| 038 |
|
BAR, FLR PNL #3 CR |
|
2009-2010 |
|
| 039 |
|
EXTENSION, FLR PNL #3 BAR |
|
2009-2010 |
|
| 040 |
|
BAR, FLR PNL #4 CR |
|
2009-2010 |
|
| 041 |
|
EXTENSION, FLR PNL #4 C/BAR |
|
2009-2010 |
|
| 042 |
|
REINFORCEMENT, FLR PNL #4 BAR UPR |
|
2009-2010 |
|
| 043 |
|
EXTENSION, FLR PNL #4 C/BAR |
|
2009-2010 |
|
| 044 |
|
PLATE, CHILD ST RST SYS BELT BRKT ANC |
|
2009-2010 |
|
| 045 |
|
PLATE, CHILD ST RST SYS BELT BRKT ANC |
|
2009-2010 |
|
| 046 |
|
SUPPORT, R/SEAT H/RST |
|
2009-2010 |
|
| 047 |
15259372 |
REINFORCEMENT, R/WDO PNL |
D69 |
2008-2010 |
01 |
| 047 |
15259373 |
REINFORCEMENT, R/WDO PNL |
D69 |
2008-2010 |
01 |
| 048 |
25942405 |
PANEL, R/WDO |
D69 |
2008-2010 |
01 |
| 049 |
15264263 |
PANEL, R/WDO DRN |
D69 |
2008-2010 |
01 |
