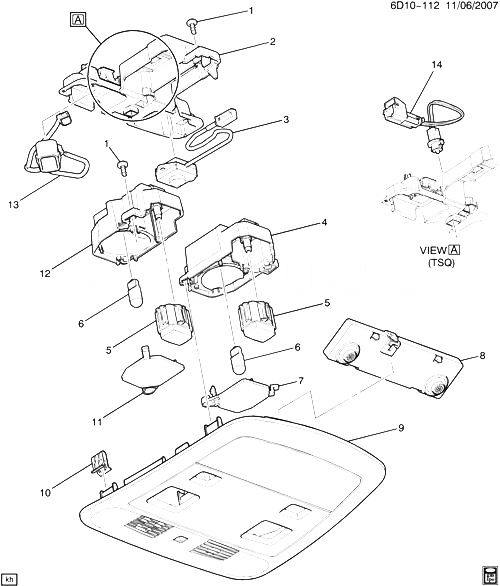

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11562028 |
БОЛТ, RF CNSL (ЧАСТЬ OF 9) |
D69 |
2008-2010 |
AR |
| 002 |
|
PLATE, RF CNSL BKG (ЧАСТЬ OF 9) |
|
2009-2010 |
|
| 003 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE (ЧАСТЬ OF 9) |
DM69 (C3U, CFN, UA2, UD7, U2R, U2S, U2Y) (EXC UG1) |
2009-2009 |
01 |
| 003 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE (ЧАСТЬ OF 9) |
DM69 (C3U, CFN, UA2, UD7, U2X) |
2009-2009 |
01 |
| 003 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE (ЧАСТЬ OF 9) |
DN69 (CE1, C3U, CFN, TSQ, UA2, UD7, U2S, U2X, U2Y) (EXC UG1) |
2009-2009 |
01 |
| 003 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE (ЧАСТЬ OF 9) |
DR69 (C3U, CFN, UA2, UD7, U2R, U2S, U2Y, U2X) (EXPORT) |
2009-2009 |
01 |
| 004 |
25886563 |
ЛАМПА, RF CNSL CTSY RDG (ЧАСТЬ OF 9) (INCLS 5-7)
| D69 |
2008-2009 |
01 |
|
| 005 |
|
PUSHBUTTON, W/S HDR CTSY RDG LP SW (ЧАСТЬ OF 4, 9, 12) |
|
2009-2010 |
|
| 006 |
01999382 |
BULB, (ЧАСТЬ OF 4, 9, 12) (ACDelco #W5WLL) (LONGER LIFE) |
|
2008-2010 |
02 |
| 007 |
25886565 |
LENS, RF CNSL RDG LP (ЧАСТЬ OF 4, 9) |
D69 |
2008-2009 |
01 |
| 008 |
15283682 |
SENSOR, THEFT DTRNT (ЧАСТЬ OF 9)
| DM, DN, DR69 (CFN, C3U, UA2, UD7, U2X) (EXPORT) |
2009-2009 |
01 |
|
| 009 |
15876690 |
КОНСОЛЬ, RF (INCLS 1-8, 10-13) (CASHMERE) (W/O VNC MIC) |
D69 (CFN, UA2, UD7, U2R, 39I) (EXC CE1, TSQ, UE1, UG1) |
2008-2009 |
01 |
| 009 |
15876692 |
КОНСОЛЬ, RF (INCLS 1-8, 10-14) (CASHMERE) (W/O VNC MIC) |
D69 (CE1, CFN, TSQ, UA2, UD7, U2R, 39I) (EXC UE1, UG1) |
2008-2009 |
01 |
| 009 |
25822402 |
КОНСОЛЬ, RF (INCLS 1-8, 10-14) (CASHMERE) (W/VNC MICROPHONE) |
DM, DN, DR69 (CE1, CFN, TSQ, UA2, UD7, U2X, 31I, 39I) (EXPORT) |
2009-2009 |
01 |
| 009 |
25822402 |
КОНСОЛЬ, RF (INCLS 1-8, 10-14) (CASHMERE) (W/VNC MICROPHONE) |
DM, DN69 (CE1, CFN, TSQ, UA2, UD7, U2R, U2S, U2Y, 31I, 39I) (EXC UG1) (EXPORT) |
2009-2009 |
01 |
| 009 |
25822402 |
КОНСОЛЬ, RF (INCLS 1-8, 10-14) (CASHMERE) (W/VNC MICROPHONE) |
DR69 (CE1, CFN, TSQ, UA2, UD7, U2R, U2S, U2Y, 31I, 39I) (EXPORT) |
2009-2009 |
01 |
| 009 |
25822410 |
КОНСОЛЬ, RF (INCLS 1-8, 10-13) (CASHMERE) (W/VNC MICROPHONE) |
DM69 (CFN, UA2, 39I) (EXC CE1, TSQ) |
2008-2010 |
01 |
| 009 |
25822410 |
КОНСОЛЬ, RF (INCLS 1-8, 10-13) (CASHMERE) (W/VNC MICROPHONE) |
DR69 (CFN, UA2, 39I) (EXC CE1, TSQ) (EXPORT) |
2009-2010 |
01 |
| 009 |
25904797 |
КОНСОЛЬ, RF (INCLS 1-8, 10-14) (TITANIUM) |
DM, DN69 (CE1, CFN, TSQ, UA2, UD7, 19I, 84I) (EXC UG1) |
2009-2009 |
01 |
| 009 |
25904799 |
КОНСОЛЬ, RF (INCLS 1-8, 10-13) |
DM69 (CFN, UA2, UD7, 19I, 84I) (EXC CE1, TSQ, UG1) |
2009-2009 |
01 |
| 009 |
25970831 |
КОНСОЛЬ, RF (INCLS 1-8, 10-14) (TITANIUM) |
DR (CE1, CFN, TSQ, 19I, 84I) (EXPORT) |
2009-2009 |
01 |
| 009 |
25970832 |
КОНСОЛЬ, RF (INCLS 1-8, 10-14) (CASHMERE) (STD, LED, VNC-MIC) |
DR69 (CE1, CFN, TSQ, UA2, UD7, 39I) (EXC UG1) (EXPORT) |
2009-2009 |
01 |
| 009 |
25970837 |
КОНСОЛЬ, RF (INCLS 1-8, 10-13) (TITANIUM) |
DR69 (19I, 84I) (EXC CE1, TSQ) (EXPORT) |
2009-2009 |
01 |
| 009 |
25970838 |
КОНСОЛЬ, RF (INCLS 1-8, 10-13) |
DR (CFN, UA2, UD7, U2R, U2Y, 39I) (EXC CE1, TSQ, UG1) (EXPORT) |
2009-2009 |
01 |
| 009 |
25970838 |
КОНСОЛЬ, RF (INCLS 1-8, 10-13) |
DR (CFN, UA2, UD7, U2X, 39I) (EXC CE1, TSQ, UG1) (EXPORT) |
2009-2009 |
01 |
| 010 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (ЧАСТЬ OF 9)
|
2008-2010 |
04 |
|
| 011 |
25886564 |
LENS, RF CNSL RDG LP (ЧАСТЬ OF 9, 12) |
D69 |
2008-2009 |
01 |
| 012 |
25886562 |
ЛАМПА, RF CNSL CTSY RDG (ЧАСТЬ OF 9) (INCLS 5, 6, 11)
| D69 |
2008-2009 |
01 |
|
| 013 |
15241529 |
MICROPHONE, MOBILE TEL (ЧАСТЬ OF 9) (2-WAY CAVITY) |
DM, DN69 |
2009-2009 |
01 |
| 014 |
25821823 |
ЛАМПА, RF CNSL CTSY (ЧАСТЬ OF 9) (PIN SPOT LED) |
D69 (TSQ) |
2008-2009 |
01 |
