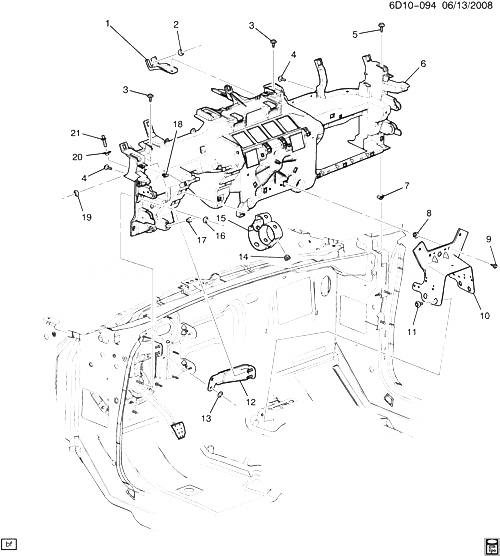

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25795381 |
BRACKET, INST CARR (FOD) |
D69 |
2009-2010 |
02 |
| 002 |
11517792 |
ГАЙКА, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (I/P CARR BRKT) |
|
2009-2010 |
03 |
| 003 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (INST CARR BRKT) (T/W 12345493 REPLCS 25534835)
|
2009-2010 |
03 |
|
| 004 |
11609540 |
БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (ЧАСТЬ OF 6)
|
2009-2010 |
08 |
|
| 005 |
11516594 |
БОЛТ-HEX, M8X1.25X30, 22THD, 24MM O.D., 9.8, 7114M (INST CARR) |
|
2009-2010 |
02 |
| 006 |
20838308 |
КРОНШТЕЙН, INST (INCLS 4, 8, 14, 15, 17, 18, 20, 21) (RHD) |
DR69 (EXPORT) |
2009-2010 |
01 |
| 006 |
20840954 |
КРОНШТЕЙН, INST (INCLS 4, 8, 14, 15, 17, 18, 20, 21) (RHD) |
DM, DN |
2009-2010 |
01 |
| 006 |
25897966 |
КРОНШТЕЙН, INST (RHD) (INCLS 4, 8, 14, 15, 17, 18, 20, 21) |
DR (EXPORT) |
2009-2010 |
01 |
| 007 |
11516149 |
ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (I/P CARR)
|
2009-2010 |
02 |
|
| 008 |
22717573 |
NUT - PUSH-IN MULTI THR, M6X1.0, SAE 1050-1065, ZO (ЧАСТЬ OF 6) |
|
2009-2010 |
13 |
| 009 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (INST CARR BRKT)
|
2009-2010 |
04 |
|
| 010 |
25795382 |
BRACKET, I/P CARR (TO TUNNEL ATTACH, RWD) |
D69 |
2009-2009 |
01 |
| 011 |
11519388 |
БОЛТ, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (INST CARR BRKT)
|
2009-2010 |
04 |
|
| 012 |
15836476 |
BRACKET, STRG COL SUPT |
DM, DN |
2009-2010 |
01 |
| 012 |
15836477 |
BRACKET, STRG COL SUPT (RHD CARR TO MOD PLT) |
DR (EXPORT) |
2009-2010 |
01 |
| 013 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (STRG COL SUPT BRKT)
|
2009-2010 |
02 |
|
| 014 |
11609540 |
БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (ЧАСТЬ OF 6)
|
2009-2010 |
02 |
|
| 015 |
|
BRACKET, I/P DRVR KNEE BOLS (ЧАСТЬ OF 6) |
|
2009-2010 |
|
| 016 |
11517792 |
ГАЙКА, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (I/P CARR) |
|
2009-2010 |
04 |
| 017 |
22717573 |
NUT - PUSH-IN MULTI THR, M6X1.0, SAE 1050-1065, ZO (ЧАСТЬ OF 6) |
|
2009-2010 |
12 |
| 018 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (ЧАСТЬ OF 6)
|
2009-2010 |
13 |
|
| 019 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (I/P STRG COL OPG SUPT)
|
2009-2010 |
02 |
|
| 020 |
11516819 |
NUT-STAMPED M10 X 1.5 (ЧАСТЬ OF 6) |
|
2009-2010 |
02 |
| 021 |
11609875 |
STUD-FLANGE, M10X1.5X12.5, M10X1.5X29, 18 OD, 9.8, GMW3044, HDR-PT (ЧАСТЬ OF 6) (8.981) |
|
2009-2010 |
02 |
