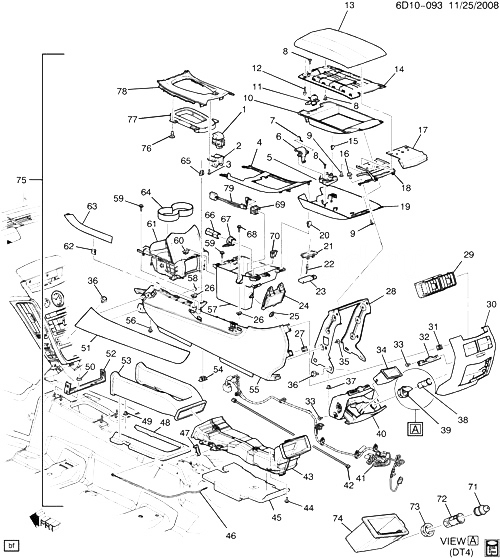

(6D10-093) - 2009 DN,DR69 КОНСОЛЬ/ПОЛ CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15935228 SWITCH, PARK BRK (ЧАСТЬ OF 78) DN69 (MG9, MYD) 2009-2009 01
001 15935228 SWITCH, PARK BRK (ЧАСТЬ OF 78) DR69 (MYB) (EXPORT) 2009-2009 01
002 25803086 RETAINER, F/FLR CNSL TRANS SHFT OPG TR PLT (ЧАСТЬ OF 78) DR69 (MYB, 19I, 39I, 84I) (EXPORT) 2009-2009 01
003 БОЛТ, PARK BRK SW BZL (ЧАСТЬ OF 78) 2009-2009
004 PLATE, F/FLR CNSL TR (*KIT2) 2009-2009
005 25862930 RETAINER, F/FLR CNSL COMPT DR LAT (PUSH ON) (LWR A/RST LATCH) (ЧАСТЬ OF 13) (*KIT3) D69 2009-2009 01
006 25903344 LATCH, F/FLR COMPT DR (LWR A/RST LATCH) (ЧАСТЬ OF 13) (*KIT3) D69 2009-2009 01
007 25903345 ПРУЖИНА, F/FLR FRT CNSL COMPT DR (LWR) (ЧАСТЬ OF 13) (*KIT3) D69 2009-2009 01
008 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 13) 2009-2009 07
009 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 13) 2009-2009 06
010 TRAY, F/FLR CNSL STOR (ЧАСТЬ OF 13) 2009-2009
011 25862928 LATCH, F/FLR CNSL A/RST (UPR) (ЧАСТЬ OF 13) (UPR) D69 2009-2009 01
012 10215230 BUMPER, F/FLR CNSL COMPT DR (ЧАСТЬ OF 13) (APPROX LENGTH 15.8M) (10.565) D69 2009-2009 02
013 25903337 ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19) (CASHMERE) D69 (394) 2009-2009 01
013 25903339 ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19) (EBONY) D69 (19W, 194) 2009-2009 01
013 25903342 ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19) (TITANIUM) D69 (844) (EXC J77) 2009-2009 01
013 25903342 ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19) (TITANIUM) D69 (89W) 2009-2009 01
013 25918862 ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19) (TITANIUM) D69 (84W, 844) 2009-2009 01
014 TRAY, F/FLR CNSL STOR (ЧАСТЬ OF 13) 2009-2009
015 11570189 CLIP, F/FLR CNSL A/RST (ARMREST BIN TO LOWER RET) (ЧАСТЬ OF 13) D69 2009-2009 03
016 11516421 БОЛТ, HFH, M6X1X10, 14.2 O.D., 9.8, 7114M (F/FLR CNSL A/RST HGE) 2009-2009 03
017 20786773 COVER, F/FLR CNSL A/RST HGE (ЧАСТЬ OF 13) (EBONY) DR69 (EXPORT) 2009-2009 01
017 25923328 COVER, F/FLR CNSL A/RST HGE (ЧАСТЬ OF 13) (SILVER) DR69 (EXPORT) 2009-2009 01
018 15951262 HINGE, F/FLR CNSL COMPT DR (ЧАСТЬ OF 13) (BLACK) D69 2009-2009 01
019 ARMREST, F/FLR CNSL (ЧАСТЬ OF 13) 2009-2009
020 11570189 CLIP, F/FLR CNSL TR PLT (TR PLT TO COMPT BIN) (*KIT2) D69 2009-2009 04
021 25886155 BRACKET, IGN LK KEY XMTR ANT (XLR/XLR-V) (EASY KEY SYSTEM-R/CMPT BRACKET) D69 2009-2009 01
022 09418420 RIVET, POP .187 DIA , .49 LONG DOME HEAD .39-OD, AA5056 GRADE 19 (IGN LK KEY XMTR ANT BRKT) 2009-2009 02
023 25884445 АНТЕННА, IGN LK KEY XMTR (PASSIVE АНТЕННА W/2 PIN CONN) DR69 2009-2009 01
024 25730079 АНТЕННА, IGN LK KEY XMTR (BLACK) (95 X 114 X 22) (F/FLR) (ACTIVE АНТЕННА W/5 PIN CONN) D69 2009-2009 01
025 11502553 ГАЙКА, STAMPED, M6.3 STUD, SELF THD, STL, PC (R/CON DR LK RCVR ANT) 2009-2009 03
026 11589183 ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (ЧАСТЬ OF 55) 2009-2009 01
027 11570189 CLIP, F/FLR CNSL SI T/PNL (ЧАСТЬ OF 55) D69 2009-2009 02
028 15848492 BRACKET, F/FLR CNSL RR (INCLS 37) D69 2009-2009 01
029 25770289 OUTLET, AUX FLR AIR (EBONY) (*KIT1) D 2009-2009 01
030 15923600 COVER, F/FLR CNSL RR (EBONY) (COVER ONLY) (*KIT1) D69 (19I) 2009-2009 01
030 15923601 COVER, F/FLR CNSL RR (TITANIUM) (COVER ONLY) (*KIT1) D69 (U2R, UT2, 844, 84W) (EXC J77) 2009-2009 01
030 15923602 COVER, F/FLR CNSL RR (CASHMERE) (COVER ONLY) (*KIT1) D69 (UAV, U2R, U2S, U2T, U2X, U2Y, 394) 2009-2009 01
030 25918852 COVER, F/FLR CNSL RR (TITANIUM) (W/O COMPARTMENT) (*KIT1) D69 (84I) 2009-2009 01
031 11570189 CLIP, F/FLR CNSL RR CVR (*KIT1) D69 2009-2009 04
032 CONTROL, VENT (*KIT1) 2009-2009
033 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (F/FLR CNSL RR CVR) (*KIT1) 2009-2009 06
034 15848491 COMPARTMENT, F/FLR CNSL RR (EBONY) (ПЕПЕЛЬНИЦА) (*KIT1) D69 2009-2009 01
035 11609492 БОЛТ, F/FLR FRT CNSL BRKT (8 X 1.25 X 372) (17.208) D69 2009-2009 06
036 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/FLR CNSL) 2009-2009 08
037 11589183 ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (ЧАСТЬ OF 28) 2009-2009 01
038 25774623 RECEPTACLE, ACSRY PWR (ЧАСТЬ OF 40) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) (*KIT1) D69 (JJD) 2009-2009 01
039 15187371 RETAINER, ACSRY PWR RCPT (ЧАСТЬ OF 40) (EBONY) (INCLS COVER) (*KIT1) D69 2009-2009 01
040 15866925 COMPARTMENT, F/FLR CNSL RR (INCLS 38, 39) (EBONY) (*KIT1) D69 (19I) 2009-2009 01
040 15866927 COMPARTMENT, F/FLR CNSL RR (INCLS 38, 39) (CASHMERE) (*KIT1) D69 (U2R, U2T, UAV, U2S, U2X, U2Y, 394) 2009-2009 01
040 25918848 COMPARTMENT, F/FLR CNSL RR (INCLS 38, 39) (TITANIUM) (*KIT1) D69 (84I) 2009-2009 01
041 25913312 HARNESS, F/FLR CNSL WRG (INCLS 42) DR69 (IL4, J77, U2R, U2T) (EXC UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
041 25913312 HARNESS, F/FLR CNSL WRG (INCLS 42) DR69 (ILW, J77, U2R, U2T) (EXPORT) 2009-2009 01
041 25913314 HARNESS, F/FLR CNSL WRG (INCLS 42) DR69 (IL4, J77, UAV, U2S, U2X, U2Y) (EXC UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
041 25913315 HARNESS, F/FLR CNSL WRG (INCLS 42) DR69 (IL4, J77, UHA, UHB, UHC, UHD, UHF, U2R, U2T) (EXPORT) 2009-2009 01
041 25913316 HARNESS, F/FLR CNSL WRG (INCLS 42) DN69 (IP5, J77, UAV, U2S, U2X, U2Y, UHA, UHB, UHC, UHD, UHF) 2009-2009 01
041 25913316 HARNESS, F/FLR CNSL WRG (INCLS 42) DR69 (IL4, J77, UAV, U2S, U2X, U2Y, UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
042 25833058 CABLE, AUDIO VIDEO MDL (I/P) (ЧАСТЬ OF 41) (ACDelco #25833058) DR69 (U2R, U2T, IL4, ILW) 2009-2009 01
042 25833059 CABLE, AUDIO VIDEO MDL (I/P) (ЧАСТЬ OF 41) (F/FLR) (ACDelco #25833059) DN69 (IP5, UAV, U2S, U2X, U2Y, UHA, UHB, UHC, UHD, UHF) 2009-2009 01
043 25801211 DUCT, F/FLR CNSL RR AIR (INCLS 47) (L SHAPED) DM69 2009-2009 01
043 25801211 DUCT, F/FLR CNSL RR AIR (INCLS 47) (L SHAPED) DN69 2009-2009 01
043 25801211 DUCT, F/FLR CNSL RR AIR (INCLS 47) (L SHAPED) DR69 2009-2009 01
044 11609462 SCREW, M4.2X1.41X13, GMW4205 (FLR RR AIR OTLT DUCT) 2009-2009 03
045 INSULATOR, F/FLR CNSL RR AIR DUCT 2009-2009
046 25801212 CABLE, MODE CONT D 2009-2009 01
047 25781507 LEVER, F/FLR CNSL RR AIR VLV (ЧАСТЬ OF 43) D69 2009-2009 01
048 INSULATOR, F/FLR CNSL RR AIR DUCT 2009-2009
049 11589183 ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (FLR RR AIR DISTR) 2009-2009 02
050 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (F/FLR CNSL FRT SUPT) 2009-2009 02
051 25918863 PLATE, F/FLR CNSL CVR TR (TITANIUM) DM, DN (84I) 2009-2009 01
051 25918863 PLATE, F/FLR CNSL CVR TR (TITANIUM) DR (84I) (EXPORT) 2009-2009 01
051 25918864 PLATE, F/FLR CNSL CVR TR (TITANIUM) DM, DN (84I) 2009-2009 01
051 25918864 PLATE, F/FLR CNSL CVR TR (TITANIUM) DR (84I) (EXPORT) 2009-2009 01
051 25977103 PLATE, F/FLR CNSL CVR TR (EBONY) DN69 (19I) 2009-2009 01
051 25977103 PLATE, F/FLR CNSL CVR TR (EBONY) DR69 (19I) (EXPORT) 2009-2009 01
051 25977105 PLATE, F/FLR CNSL CVR TR (CASHMERE) DR69 (394) (EXPORT) 2009-2009 01
051 25977108 PLATE, F/FLR CNSL CVR TR (CASHMERE) DR69 (394) (EXPORT) 2009-2009 01
051 25977109 PLATE, F/FLR CNSL CVR TR (EBONY) DN69 (19I) 2009-2009 01
051 25977109 PLATE, F/FLR CNSL CVR TR (EBONY) DR69 (19I) (EXPORT) 2009-2009 01
052 25762739 SUPPORT, F/FLR CNSL FRT D69 2009-2009 01
053 15843191 DUCT, F/FLR CNSL RR AIR (U SHAPED) DM69 2009-2009 01
053 15843191 DUCT, F/FLR CNSL RR AIR (U SHAPED) DN69 2009-2009 01
053 15843191 DUCT, F/FLR CNSL RR AIR (U SHAPED) DR69 2009-2009 01
054 11589183 ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (ЧАСТЬ OF 55) 2009-2009 02
055 25946938 RETAINER, F/FLR CNSL (INCLS 26, 27, 54) (MED CASHMERE) DR69 (39I) (EXPORT) 2009-2009 01
055 25946939 RETAINER, F/FLR CNSL (INCLS 26, 27, 54) (CASHMERE) DR69 (394) (EXPORT) 2009-2009 01
055 25977113 RETAINER, F/FLR CNSL (INCLS 26, 27, 54) (EBONY) D69 (19I, 84I, 89I) 2009-2009 01
055 25977118 RETAINER, F/FLR CNSL (INCLS 26, 27, 54) (EBONY) D69 (19I, 84I, 89I) 2009-2009 01
056 11609462 SCREW, M4.2X1.41X13, GMW4205 (FLR RR AIR DISTR) 2009-2009 02
057 25881408 COMPARTMENT, F/FLR CNSL (BLACK) D69 2009-2009 01
058 11501937 ГАЙКА, PUSH ON, .153 TO .159 DIA STUD, .70 O.D., .35 THK, SPR STL, PC (F/FLR CNSL TR PLT) (ACDelco #11501937) 2009-2009 08
059 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (F/FLR CNSL CUP HLDR) 2009-2009 04
060 11570654 ГАЙКА, F/FLR CNSL CUP HLDR BRKT (ЧАСТЬ OF 61) (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) D69 2009-2009 06
061 25905704 ДЕРЖАТЕЛЬ, F/FLR CNSL CUP (INCLS 60, 64) (SILVER) (STAINLESS) D69 (19W, 84W, 194, 394, 844) 2009-2009 01
061 25943890 ДЕРЖАТЕЛЬ, F/FLR CNSL CUP (INCLS 60, 64) (BLACK) (V) DN69 (19I, 84I) 2009-2009 01
062 11570189 CLIP, F/FLR CNSL SI T/PNL (ЧАСТЬ OF 63) (SI PNL TO END CAP (CVR)) D69 2009-2009 02
062 16754704 CLIP, F/FLR CNSL SI T/PNL (ЧАСТЬ OF 63) (10 X 10) (APLQ TO SI PNL) (STEEL) (10.056) DN69 2009-2009 03
062 16754704 CLIP, F/FLR CNSL SI T/PNL (ЧАСТЬ OF 63) (10 X 10) (APLQ TO SI PNL) (STEEL) (10.056) DR69 (EXPORT) 2009-2009 03
063 20821365 APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE) DN (B18) 2009-2009 01
063 20821366 APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE) DN (B18) 2009-2009 01
063 25900692 APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE WOOD) DN69 2009-2009 01
063 25900692 APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE WOOD) DR69 (B19) (EXPORT) 2009-2009 01
063 25900693 APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE WOOD) DN69 2009-2009 01
063 25900693 APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE WOOD) DR69 (B19) (EXPORT) 2009-2009 01
063 25900696 APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) DR69 (EXC B19) (EXPORT) 2009-2009 01
063 25900697 APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) DR69 (EXC B19) (EXPORT) 2009-2009 01
064 15866948 LINER, F/FLR CNSL CUP HLDR (ЧАСТЬ OF 61) (EBONY) D69 2009-2009 01
065 11610112 CLIP, F/FLR CNSL TR PLT (TR PLT TO SI PNL) (ЧАСТЬ OF 78) (10.4 X 13 X 9) (14.683) D69 2009-2009 02
066 25774623 RECEPTACLE, ACSRY PWR (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) D69 (JJD) 2009-2009 01
068 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/FLR CNSL COMPT) 2009-2009 04
069 25814513 BRACKET, DIGITAL RDO RCVR DN69 (IL4, IP5) 2009-2009 01
069 25814513 BRACKET, DIGITAL RDO RCVR DR69 (IL4, UAV, U2S, U2X, U2Y) (EXPORT) 2009-2009 01
069 25814514 BRACKET, DIGITAL RDO RCVR DR69 (ILW, IL4, U2R, U2T) (EXPORT) 2009-2009 01
070 15907929 RETAINER, F/FLR CNSL COMPT D69 (UHA, UHB, UHC, UHD, UHF, U2R, U2T, UAV, U2S, U2X, U2Y) (EXPORT) 2009-2009 01
071 11516141 LIGHTER, CIG (BLACK) (W/SMALL, PLASTIC KNOB END 14.0MM) (*KIT4) D 2009-2009 01
072 25776667 RECEPTACLE, C/LTR (2 TERMINALS) (*KIT4) D69 2009-2009 01
073 25749635 RETAINER, C/LTR RCPT (EBONY) (W/O CAP) (*KIT4) D69 (DT4) 2009-2009 02
073 25793816 RETAINER, C/LTR RCPT (EBONY) (INCLUDES CAP) (W/ALUMINUM RING) (*KIT4) D (JJD) 2009-2009 01
074 15844359 ПЕПЕЛЬНИЦА, F/FLR CNSL RR (*KIT4) D69 (DT4) 2009-2009 01
075 20808936 КОНСОЛЬ, F/FLR (INCLS 4-70) DM, DN69 (19I) 2009-2009 01
075 20808936 КОНСОЛЬ, F/FLR (INCLS 4-70) DN69 (31I) 2009-2009 01
075 20808936 КОНСОЛЬ, F/FLR (INCLS 4-70) DR69 (19I) (EXPORT) 2009-2009 01
075 20808938 КОНСОЛЬ, F/FLR (INCLS 4-70) DR69 (39I) (EXPORT) 2009-2009 01
075 20808940 КОНСОЛЬ, F/FLR (INCLS 4-70) DR69 (84I) (EXPORT) 2009-2009 01
075 25802887 КОНСОЛЬ, F/FLR (INCLS 4-70) (EBONY) DR (J77, U2R, U2T, 19W) (EXPORT) 2009-2009 01
075 25802888 КОНСОЛЬ, F/FLR (INCLS 4-70) DR (J77, U2R, U2T, 84W) (EXPORT) 2009-2009 01
075 25802890 КОНСОЛЬ, F/FLR (INCLS 4-70) (EBONY) DR69 (J77, U2R, U2T, 19W, 194) (EXC UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
075 25802891 КОНСОЛЬ, F/FLR (INCLS 4-70) (CASHMERE) DR69 (J77, U2R, U2T, 394) (EXC UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
075 25802892 КОНСОЛЬ, F/FLR (INCLS 4-70) (TITANIUM/EBONY) DR69 (J77, U2R, U2T, 844) (EXC UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
075 25802903 КОНСОЛЬ, F/FLR (INCLS 4-70) (EBONY) DR69 (J77, UAV, U2S, U2X, U2Y, 194) (EXC UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
075 25802904 КОНСОЛЬ, F/FLR (INCLS 4-70) (CASHMERE) DR69 (J77, UAV, U2S, U2X, U2Y, 394) (EXC UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
075 25802905 КОНСОЛЬ, F/FLR (INCLS 4-70) (TITANIUM) DR69 (J77, UAV, U2S, U2X, U2Y, 844) (EXC UHA, UHB, UHC, UHD, UHF) (EXPORT) 2009-2009 01
075 25802908 КОНСОЛЬ, F/FLR (INCLS 4-70) (EBONY) (EASY KEY) DR69 (J77, UHA, UHB, UHC, UHD, UHF, U2R, U2T, 194) (EXPORT) 2009-2009 01
075 25802909 КОНСОЛЬ, F/FLR (INCLS 4-70) (CASHMERE) (EASY KEY) DR69 (J77, UHA, UHB, UHC, UHD, UHF, U2R, U2T, 394) (EXPORT) 2009-2009 01
075 25802910 КОНСОЛЬ, F/FLR (INCLS 4-70) (TITANIUM/EBONY) (EASY KEY) DR69 (J77, UHA, UHB, UHC, UHD, UHF, U2R, U2T, 844) (EXPORT) 2009-2009 01
075 25802927 КОНСОЛЬ, F/FLR (INCLS 4-70) (EBONY) (EASY KEY) DR69 (J77, UAV, U2S, U2X, U2Y, UHA, UHB, UHC, UHD, UHF, 194) (EXPORT) 2009-2009 01
075 25802928 КОНСОЛЬ, F/FLR (INCLS 4-70) (CASHMERE) (EASY KEY) DR69 (J77, UAV, U2S, U2X, U2Y, UHA, UHB, UHC, UHD, UHF, 394) (EXPORT) 2009-2009 01
075 25802929 КОНСОЛЬ, F/FLR (INCLS 4-70) (TITANIUM) (EASY KEY) DR69 (J77, UAV, U2S, U2X, U2Y, UHA, UHB, UHC, UHD, UHF, 844) (EXPORT) 2009-2009 01
075 25943877 КОНСОЛЬ, F/FLR (INCLS 4-70) (EBONY) (EASY KEY) (CTS-V SERIES) DN69 (UAV, U2S, U2X, U2Y, UHA, UHB, UHC, UHD, UHF, 195, 315) 2009-2009 01
075 25943878 КОНСОЛЬ, F/FLR (INCLS 4-70) (TITANIUM) (EASY KEY) (CTS-V SERIES) DN69 (UAV, U2S, U2X, U2Y, UHA, UHB, UHC, UHD, UHF, 845) 2009-2009 01
076 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 78) 2009-2009 04
077 20799874 INDICATOR, A/TRNS CONT (ЧАСТЬ OF 78) DN69 (MYD, 19I, 31I, 84I) 2009-2009 01
077 25801116 INDICATOR, A/TRNS CONT (SHFTR TR PLT) (ЧАСТЬ OF 78) D69 (MYB, MYD) 2009-2009 01
078 25802949 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 1-3, 65, 76, 77) DR (MYB, 19I, 39I, 84I) (EXPORT) 2009-2009 01
078 25865307 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 1-3, 65, 76, 77) DN (MG9, 19I, 31I, 84I) 2009-2009 01
078 25865308 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 1-3, 65, 76, 77) DN (MYD, 19I, 31I, 84I) 2009-2009 01
079 25908035 CABLE, MP3 PLYR (IPOD CONNECTION CABLE) (ACDelco #25908035) D69 (UAV, U2S, U2X, U2Y) 2009-2009 01
K01 25759206 COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (NEUTRAL) (PO CNSL ASM) D69 (DT4, 70I) 2009-2009 01
K01 25907951 COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (EBONY) (INCLS COVER AND RR COMPARTMENT) D69 (19I) 2009-2009 01
K01 25918844 COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (TITANIUM) (W/COMPARTMENT) D69 (84I) 2009-2009 01
K02 25905699 PLATE, F/FLR CNSL TR (INCLS 4, 20) (SILVER) (W/CLIPS) D69 2009-2009 01
K02 25943884 PLATE, F/FLR CNSL TR (INCLS 4, 20) (BLACK) DN 2009-2009 01
K03 25903343 LATCH, F/FLR CNSL A/RST (LWR) (INCLS 5-7) (LWR) D69 2009-2009 01
K04 15244115 ПЕПЕЛЬНИЦА PKG, I/P (INCLS 71-74) (BLACK) (INSTALL .40) (.235 KGS) (BIN TYPE) (FRT RR) (PLASTIC) D69 (DT4) 2009-2009 01
