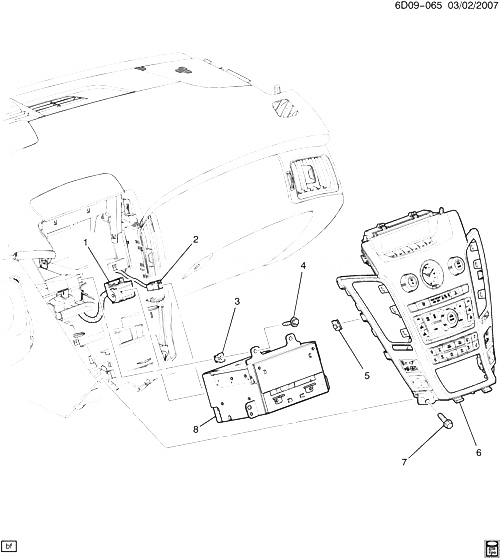

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2010 |
|
| 002 |
25833050 |
CABLE, RDO ANT (I/P WRG HARN) (ACDelco #25833050) |
DM69 (TT6, TT7, TT8) |
2008-2009 |
01 |
| 002 |
25833050 |
CABLE, RDO ANT (I/P WRG HARN) (ACDelco #25833050) |
DN69 (MG9, MYD, JJD, U2S) (EXC R1J) |
2009-2009 |
01 |
| 002 |
25833050 |
CABLE, RDO ANT (I/P WRG HARN) (ACDelco #25833050) |
DR69 (JJD, U2X, U2Y, U2S, U2R) (EXPORT) |
2009-2009 |
01 |
| 002 |
25833062 |
CABLE, RDO ANT (BODY WRG HARN) (ACDelco #25833062) |
DM69 (UAV, UQS, U2Y, U2X, U2R, UQA, U2T, U2S) |
2009-2009 |
01 |
| 002 |
25833062 |
CABLE, RDO ANT (BODY WRG HARN) (ACDelco #25833062) |
DN69 (UAV, U2Y, U2X, U2S) |
2009-2009 |
01 |
| 002 |
25833062 |
CABLE, RDO ANT (BODY WRG HARN) (ACDelco #25833062) |
DR69 (U2Y, U2X, U2S, U2R) (EXPORT) |
2009-2009 |
01 |
| 003 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (I/P)
|
2008-2010 |
19 |
|
| 004 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO)
|
2008-2010 |
04 |
|
| 005 |
|
CLIP, I/P CTR TR PNL (ЧАСТЬ OF 6) |
|
2009-2010 |
|
| 006 |
|
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 5) (СМ. ГРУППУ 10.000 ПРИБОРНАЯ ПАНЕЛЬ/CENTER CONTROL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2010 |
|
| 007 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT)
|
2008-2010 |
02 |
|
| 008 |
|
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYRHARD DR |
|
2008-2010 |
|
| 008 |
19117334 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (ACDelco #19117334) |
DM69 (U2T) |
2008-2009 |
01 |
| 008 |
20763583 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYRHARD DR (ACDelco #20763583) |
D69 (U2S) (EXC FCN, UK1, UL1, UL2, UL8) |
2008-2009 |
01 |
| 008 |
20773368 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (LABELED 20773368) (ACDelco #20773368) |
DM69 (U2R) (EXC U2K) |
2008-2009 |
01 |
| 008 |
20773368 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (LABELED 20773368) (ACDelco #20773368) |
DR69 (U2R) (EXC U2K) (EXPORT) |
2009-2009 |
01 |
| 008 |
20773369 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (LABELED 20773369) (ACDelco #20773369) |
DM69 (U2R, U2K) |
2008-2009 |
01 |
| 008 |
20773370 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (LABELED 20773370) (ACDelco #20773370) |
DM69 (U2T) |
2008-2009 |
01 |
| 008 |
20857842 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (ACDelco #20857842) (LABELED 20857842) |
DM69 (U2R) (EXC U2K) |
2009-2009 |
01 |
| 008 |
20857842 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (ACDelco #20857842) (LABELED 20857842) |
DR69 (U2R) (EXC U2K) (EXPORT) |
2009-2009 |
01 |
| 008 |
20857843 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (ACDelco #20857843) (LABELED 20857843) |
DM69 (U2K, U2R) |
2009-2009 |
01 |
| 008 |
20857844 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (ACDelco #20857844) (LABELED 20857844) |
DM69 (U2T) |
2009-2009 |
01 |
