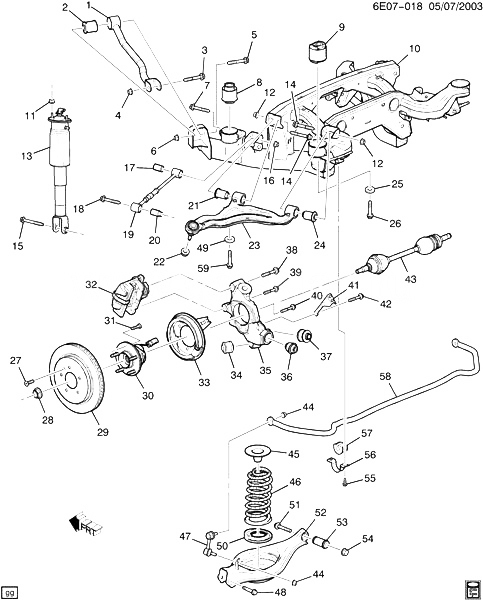

(6E07-018) - 2009-2010 DM,DN,DR69 ЗАДНЯЯ ПОДВЕСКА CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25939260 ARM, RR SUSP TRAILING (INCLS 2) D69 2008-2009 02
002 BUSHING, RR SUSP TRAILING ARM (ЧАСТЬ OF 1) 2009-2010
003 11518725 БОЛТ, HFH, M14X2.0X95, 45 THD, 34 OD, 10.9, 7114M, CONICAL ПРУЖИНА WA (RR SUSP TRAILING ARM) 2008-2010 02
004 11516382 ГАЙКА, RR SUSP TRAILING ARM (M14X2X15) (W/O J CLIP RETAINER) (8.917) D69 2008-2010 02
005 11519149 БОЛТ, RR SUSP TRAILING ARM (ЗАДНИЙ) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) D69 2008-2010 02
006 11516382 ГАЙКА, RR SUSP TRAILING ARM (M14X2X15) (W/O J CLIP RETAINER) (8.917) D69 2008-2010 02
007 11519149 БОЛТ, RR SUSP ADJ LINK (INNER) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) D69 2008-2010 02
008 25887836 MOUNT, RR SUSP SUPT (ЗАДНИЙ) D69 2008-2010 01
009 25887835 MOUNT, RR SUSP SUPT (ЗАДНИЙ) D69 2008-2010 01
010 15267614 SUPPORT, RR SUSP D (JJM) 2008-2010 01
011 11516076 ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (RR S/ABS) 2008-2010 01
012 11516382 ГАЙКА, RR SUSP UPR CONT ARM (TO SUPPORT-FRONT) (M14X2X15) (W/O J CLIP RETAINER) (8.917) D69 2008-2010 02
013 15219475 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-331) DM69 (FE3) 2008-2009 01
013 15219475 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-331) DR (FE3) (EXPORT) 2009-2009 01
013 15219476 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-332) DM69 (FE3) 2008-2009 01
013 15219476 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-332) DR (FE3) (EXPORT) 2009-2009 01
013 25849149 АМОРТИЗАТОР, RR SHK (W/UPR MT) DN (FE4, F55) 2009-2009 01
013 25849150 АМОРТИЗАТОР, RR SHK (W/UPR MT) DN (FE4, F55) 2009-2009 01
013 25884697 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-487) DM69 (FE1) 2008-2010 01
013 25884697 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-487) DR (FE1) (EXPORT) 2009-2010 01
013 25884698 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-488) DM69 (FE1) 2008-2010 01
013 25884698 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-488) DR (FE1) (EXPORT) 2009-2010 01
013 25884699 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-417) DM69 (FE2) 2008-2009 01
013 25884699 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-417) DR (FE2) (EXPORT) 2009-2009 01
013 25884700 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-418) DM69 (FE2) 2008-2009 01
013 25884700 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-418) DR (FE2) (EXPORT) 2009-2009 01
014 11519150 БОЛТ, RR SUSP UPR CONT ARM (INNER) (M14X2X100) DM69 2008-2010 04
015 11516873 БОЛТ, HEX HD CON SPR WA, M14X2X100 (RR S/ABS) 2008-2010 02
016 11516382 ГАЙКА, RR SUSP ADJ LINK (TO SUPT-ЗАДНИЙ) (M14X2X15) (W/O J CLIP RETAINER) (8.917) D69 2008-2010 02
017 BUSHING, RR SUSP ADJ LINK (ЧАСТЬ OF 19) 2009-2010
018 11519078 БОЛТ, RR SUSP ADJ LINK (OUTER) (M14X2X110) (W/CON WASHER) (5.506) D69 2008-2010 02
019 15267634 LINK, RR SUSP ADJ (INCLS 17, 20) D69 2008-2010 02
020 BUSHING, RR SUSP ADJ LINK (ЧАСТЬ OF 19) 2009-2010
021 BUSHING, RR SUSP UPR CONT ARM (ЧАСТЬ OF 23) 2009-2010
022 03537773 ГАЙКА, RR SUSP UPR CONT ARM (OUTER) (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) D69 2008-2010 02
023 15267619 ARM, RR SUSP UPR CONT (INCLS 21, 24) D69 2008-2010 01
023 15267620 ARM, RR SUSP UPR CONT (INCLS 21, 24) D69 2008-2010 01
024 BUSHING, RR SUSP UPR CONT ARM (ЧАСТЬ OF 23) 2009-2010
025 11609636 WASHER, FLAT M16X32X3, SAE1050, GMW3044 (RR SUSP) 2008-2010 02
026 11570509 БОЛТ, RR SUSP (ЗАДНИЙ) (M14X2X160.68, 53 THD) D69 2008-2009 02
027 11515720 SCREW, FLAT 6 LOBED, M6X1X20, 14.5 THD, 9.8, T-30 TORX, HDR PT (RR BRK ROT (PUSH ON)) (8.908) 2008-2010 04
028 10257766 ГАЙКА, RR WHL DRV UJT SHF (M27X2X18) (HFH LOCK) (6.056) DN69 2009-2010 02
028 10289657 ГАЙКА, RR WHL DRV UJT SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE) (6.056) DM 2009-2010 02
028 10289657 ГАЙКА, RR WHL DRV UJT SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE) (6.056) DR (EXPORT) 2009-2010 02
029 ROTOR, RR BRK 2008-2010
029 15267107 ROTOR, RR BRK (17 ТОРМОЗА) DM69 (JE5) 2009-2009 02
029 15267107 ROTOR, RR BRK (17 ТОРМОЗА) DR69 (JE5) (EXPORT) 2009-2009 02
029 15267108 ROTOR, RR BRK (18 ТОРМОЗА) DM69 (J55) 2008-2009 02
029 15267108 ROTOR, RR BRK (18 ТОРМОЗА) DR69 (J55) (EXPORT) 2009-2009 02
029 25851166 ROTOR, RR BRK D69 (J56) 2009-2010 02
029 25851166 ROTOR, RR BRK D69 (J63) 2009-2010 02
030 13502216 HUB, RR WHL (W/ BRG) (INCLS 31) (W/O SENSOR) (ACDelco #FW372) DM69 (JE5, J55) 2008-2009 02
030 13502216 HUB, RR WHL (W/ BRG) (INCLS 31) (W/O SENSOR) (ACDelco #FW372) DR69 (JE5, J55) (EXPORT) 2009-2009 02
030 25954415 HUB, RR WHL (W/ BRG) (INCLS 31) (ACDelco #RW20-119) DN (J56, J63) 2009-2009 02
031 11588811 STUD, RR WHL (ЧАСТЬ OF 30) (M14X1.5X24, 58 TOTAL LENGTH) DM 2008-2010 10
031 11588811 STUD, RR WHL (ЧАСТЬ OF 30) (M14X1.5X24, 58 TOTAL LENGTH) DN 2009-2010 10
031 11588811 STUD, RR WHL (ЧАСТЬ OF 30) (M14X1.5X24, 58 TOTAL LENGTH) DR (EXPORT) 2009-2010 10
032 CALIPER, RR BRK (СМ. ГРУППУ 05.000 CALIPER/ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2009-2010
033 BRAKE, RR (СМ. ГРУППУ 05.000 СТОЯНОЧНЫЙ ТОРМОЗ ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2009-2010
034 BUSHING, RR SUSP TRAILING ARM (ЧАСТЬ OF 35) 2009-2010
035 15775071 KNUCKLE, RR SUSP (INCLS 34, 36, 37) D69 2008-2010 01
035 15775072 KNUCKLE, RR SUSP (INCLS 34, 36, 37) D69 2008-2010 01
036 BUSHING, RR SUSP LWR CONT ARM (ЧАСТЬ OF 35) 2009-2010
037 BUSHING, RR SUSP SUPT (ЧАСТЬ OF 35) 2009-2010
038 11518337 БОЛТ, HFH M12X1.75X75, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, REDUCED BODY (RR BRK CLPR BRKT) 2008-2010 02
039 11519097 БОЛТ, HFH M12X1.75X55, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, RED BODY. (RR BRK CLPR BRKT) 2008-2010 02
040 18022052 БОЛТ, RR WHL HUB (M12X1.75X51, 20THD) (5.812) DM69 (JE5, J55) 2008-2009 03
040 18022052 БОЛТ, FRT WHL BRG (M12X1.75X51, 20THD) (5.812) DN69 (J56) 2009-2009 02
041 25693149 BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) D 2008-2010 01
041 25693150 BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) D 2008-2010 01
042 11518842 БОЛТ, HFH M10X1.5X60, 22.3 OD, 26 THD, 10.9, 7114M, ADH 6194M, RED BODY (PARK BRK CBL BRKT) 2008-2010 04
043 SHAFT KIT, RR WHL DRV (СМ. ГРУППУ 05.000 ВАЛ ЗАДНЕЙ ОСИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2010
044 11516078 ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (RR STAB SHF LINK) 2008-2010 04
045 20765234 INSULATOR, RR SPR UPR D69 2008-2010 02
046 15219458 ПРУЖИНА, RR DM (8ST, 9ST) 2008-2010 02
046 15219458 ПРУЖИНА, RR DR (8ST, 9ST) (EXPORT) 2009-2010 02
046 15793347 ПРУЖИНА, RR DM (8SU, 9SU) 2008-2010 02
046 15793347 ПРУЖИНА, RR DR (8SU, 9SU) (EXPORT) 2009-2010 02
046 15793348 ПРУЖИНА, RR DN69 (8ZK, 8ZL, 8ZM, 9ZK, 9ZL, 9ZM) 2009-2010 02
046 25798541 ПРУЖИНА, RR DM (8WW, 9WW) 2008-2010 02
046 25798541 ПРУЖИНА, RR DM (8WX, 9WX) 2008-2010 02
046 25798541 ПРУЖИНА, RR DM (8WY, 9WY) 2008-2010 02
046 25798541 ПРУЖИНА, RR DM (8WZ, 9WZ) 2008-2010 02
046 25798541 ПРУЖИНА, RR DR (8WW, 9WW) (EXPORT) 2009-2010 02
046 25798541 ПРУЖИНА, RR DR (8WX, 9WX) (EXPORT) 2009-2010 02
046 25798541 ПРУЖИНА, RR DR (8WY, 9WY) (EXPORT) 2009-2010 02
046 25798541 ПРУЖИНА, RR DR (8WZ, 9WZ) (EXPORT) 2009-2010 02
047 15267655 LINK, RR STAB SHF D69 2008-2010 01
047 25964514 LINK, RR STAB SHF D69 2008-2010 01
048 11609819 БОЛТ, RR SUSP LWR CONT ARM (TO KNUCKLE) (8.900) D69 2008-2009 02
049 11609636 WASHER, FLAT M16X32X3, SAE1050, GMW3044 (RR SUSP) 2008-2010 02
050 25805110 INSULATOR, RR SPR LWR D69 2008-2009 02
051 11519150 БОЛТ, RR SUSP LWR CONT ARM (INNER) (M14X2X100) D69 2008-2009 02
052 20777471 ARM, RR SUSP LWR CONT (INCLS 53) D69 2008-2009 01
052 20777472 ARM, RR SUSP LWR CONT (INCLS 53) D69 2008-2009 01
053 BUSHING, RR SUSP LWR CONT ARM (ЧАСТЬ OF 52) 2009-2010
054 11516382 ГАЙКА, RR SUSP UPR CONT ARM (TO SUPPORT-FRONT) (M14X2X15) (W/O J CLIP RETAINER) (8.917) D69 2008-2009 02
055 11516328 БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (RR STAB SHF BRKT) 2008-2010 04
056 25719675 BRACKET, RR STAB SHF D69 2008-2010 02
057 15267653 INSULATOR, RR STAB SHF (16MM) (65 DURO) D69 (FE1) 2008-2009 02
057 15880709 INSULATOR, RR STAB SHF (17MM) (65 DURO) DM69 (FE1, FE2) 2008-2010 02
057 15880709 INSULATOR, RR STAB SHF (17MM) (65 DURO) DR69 (FE1, FE2) (EXPORT) 2009-2010 02
057 15880711 INSULATOR, RR STAB SHF (18MM) (65 DURO) DM (MV7, FE2, FE3, MN6) 2008-2009 02
057 15880711 INSULATOR, RR STAB SHF (18MM) (65 DURO) DM (MYB, FE2, FE3, MX0) 2008-2009 02
057 15880711 INSULATOR, RR STAB SHF (18MM) (65 DURO) DR (MV7, FE2, FE3, MN6) (EXPORT) 2009-2009 02
057 15880711 INSULATOR, RR STAB SHF (18MM) (65 DURO) DR (MYB, FE2, FE3, MX0) (EXPORT) 2009-2009 02
057 25771205 INSULATOR, RR STAB SHF (23.4MM) (60 DURO) D 2008-2010 02
058 15267654 SHAFT, RR STAB DM69 (MV1, MV7, FE1, MN6) 2008-2009 01
058 15267654 SHAFT, RR STAB DM69 (MYB, FE1, MX0) 2008-2009 01
058 15267654 SHAFT, RR STAB DR69 (MV7, FE1, MN6) (EXPORT) 2009-2009 01
058 15267654 SHAFT, RR STAB DR69 (MYB, FE1, MX0) (EXPORT) 2009-2009 01
058 15880706 SHAFT, RR STAB DM (MX7, MYB, FE1, FE2) 2008-2009 01
058 15880706 SHAFT, RR STAB DR (MX7, MYB, FE1, FE2) (EXPORT) 2009-2009 01
058 15880708 SHAFT, RR STAB DM69 (MV1, MV7, FE2, FE3, MN6) 2008-2009 01
058 15880708 SHAFT, RR STAB DM69 (MYB, FE2, FE3, MX0) 2008-2009 01
058 15880708 SHAFT, RR STAB DR69 (MV7, FE2, FE3, MN6) (EXPORT) 2009-2009 01
058 15880708 SHAFT, RR STAB DR69 (MYB, FE2, FE3, MX0) (EXPORT) 2009-2009 01
058 25819249 SHAFT, RR STAB (25.4MM HOLLOW) DN69 2009-2010 01
059 11570356 БОЛТ, RR SUSP (FRONT) (M16X2X163, 53 THD) D69 2008-2009 02
