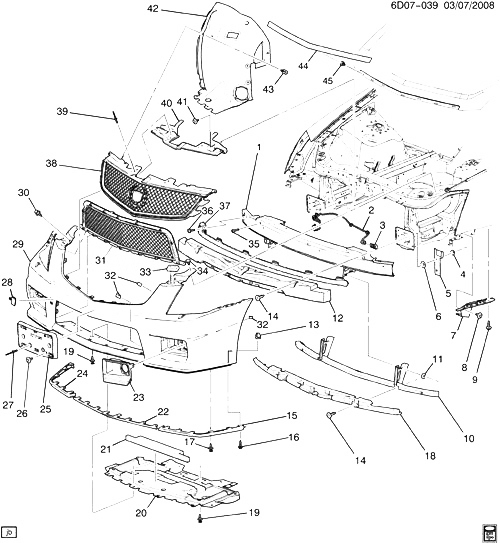

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25860888 |
BAR, FRT BPR IMP |
D69 (B3T) (EXPORT) |
2009-2009 |
01 |
| 002 |
25952187 |
HARNESS, I/P WRG HARN EXTN (FOR SAFINGDISCRM SENSOR) |
DM, DN (B3T) |
2009-2010 |
01 |
| 003 |
25916157 |
SENSOR, PEDESTRIAN IMPACT DETECTION (СМ. ГРУППУ 02.000 PEDESTRIAN PROTECTION SYSTEM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
D69 (B3T) |
2009-2010 |
01 |
| 004 |
11517397 |
ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS) |
|
2009-2010 |
08 |
| 005 |
15869580 |
BRACKET, HDLP
| D69 |
2009-2009 |
01 |
|
| 005 |
25924112 |
BRACKET, HDLP |
D69 |
2009-2009 |
01 |
| 006 |
11609344 |
ГАЙКА, STAMP SPECIAL БОЛТ RETAINER, 35.0X17.42X2.50, SAE 1050-1065 SPR STL, GM7111M (FRT BPR IMP BAR STUD PLT (PUSH ON)) |
|
2009-2010 |
01 |
| 007 |
20831753 |
REINFORCEMENT, FRT BPR FASCIA
| D69 |
2009-2010 |
01 |
|
| 007 |
20831754 |
REINFORCEMENT, FRT BPR FASCIA
| D69 |
2009-2010 |
01 |
|
| 008 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA REINF)
|
2009-2010 |
02 |
|
| 009 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA RET)
|
2009-2010 |
02 |
|
| 010 |
25860887 |
BAR, FRT BPR LWR IMP |
D69 (B3T) (EXPORT) |
2009-2010 |
01 |
| 011 |
11517397 |
ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS LWR) |
|
2009-2010 |
04 |
| 012 |
25880228 |
АМОРТИЗАТОР, FRT BPR FASCIA ENGY UPR |
DN (B3T) (EXPORT) |
2009-2010 |
01 |
| 013 |
25536302 |
ГАЙКА, FRT BPR UPR FASCIA (4.2 X 1.41) (TAPPING NUT) (3.430)
| D69 |
2009-2010 |
04 |
|
| 014 |
21077131 |
RETAINER, FRT BPR FASCIA ENGY ABS
| DN |
2009-2010 |
03 |
|
| 015 |
|
FASCIA, FRT BPR LWR (*KIT1) |
|
2009-2010 |
|
| 016 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT BPR FASCIA OTR RET) (*KIT1)
|
2009-2010 |
04 |
|
| 017 |
21030249 |
RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR LWR FASCIA) (*KIT1) (8.950) (PUSH IN)
|
2009-2010 |
14 |
|
| 018 |
25880230 |
АМОРТИЗАТОР, FRT BPR FASCIA ENGY LWR |
DN (B3T) (EXPORT) |
2009-2010 |
01 |
| 019 |
11589291 |
RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (F/CMPT SPH SHLD (PUSH IN))
|
2009-2010 |
12 |
|
| 020 |
25825393 |
DEFLECTOR, FRT AIR (INCLS 21) |
DM, DN (LSA) |
2009-2010 |
01 |
| 021 |
25845432 |
SEAL, RAD AIR LWR (ЧАСТЬ OF 20) |
D69 (LSA) |
2009-2009 |
01 |
| 022 |
|
FASCIA, FRT BPR LWR (*KIT1) |
|
2009-2010 |
|
| 023 |
15272157 |
BEZEL, FRT FOG LP (FOR VEHICLES BUILT W/FRONT BRAKE ОХЛАЖДЕНИЕ DUCTS) (ON VEH BUILT BEFORE 3/31/08 OR IF REPLACED BEZEL HAS OPENINGS/SLOTSMUST ALSO ORDER 25961369) |
D69 (EXC TT6, TT7, TT8) |
2009-2009 |
01 |
| 023 |
20757039 |
BEZEL, FRT FOG LP (FOR VEHICLES BUILT W/O FRONT BRAKE ОХЛАЖДЕНИЕ DUCTS) |
D69 (EXC TT6, TT7, TT8) |
2009-2009 |
01 |
| 023 |
25863011 |
BEZEL, FRT FOG LP (INNER) |
DN (CE4, TT7, TT8) |
2009-2009 |
02 |
| 023 |
25863012 |
BEZEL, FRT FOG LP (OUTER) |
DN (CE4, TT6, TT7, TT8) |
2009-2009 |
01 |
| 023 |
25863013 |
BEZEL, FRT FOG LP |
DN (CE4, TT6, TT7, TT8) |
2009-2009 |
01 |
| 024 |
|
FASCIA, FRT BPR LWR (*KIT1) |
|
2009-2010 |
|
| 025 |
25819989 |
BRACKET, FRT LIC PLT |
DN (VK3) |
2009-2010 |
01 |
| 025 |
25820117 |
BRACKET, FRT LIC PLT |
DN (VL4) |
2009-2010 |
01 |
| 025 |
25820118 |
BRACKET, FRT LIC PLT |
DN (VL6) |
2009-2010 |
01 |
| 026 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT) |
|
2009-2010 |
04 |
| 027 |
11516807 |
RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (FRT LIC PLT BRKT)
|
2009-2010 |
02 |
|
| 028 |
25891070 |
COVER, FRT BPR FASCIA FRT TOW HOOK ACC HOLE |
DN |
2009-2010 |
01 |
| 029 |
25947966 |
FASCIA, FRT BPR (КРАСКА TO MATCH) |
DN |
2009-2010 |
01 |
| 030 |
21030249 |
RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR UPR FASCIA) (8.950) (PUSH IN)
|
2009-2010 |
02 |
|
| 031 |
25891997 |
GRILLE, RAD LWR (СМ. ГРУППУ 01.000 GRILLE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
DN (CE4) |
2009-2010 |
01 |
| 032 |
11562364 |
RETAINER, FRT BPR FASCIA (18X10X11.6) (1.269)
| DN |
2009-2010 |
33 |
|
| 033 |
25768800 |
BUMPER, FRT BPR FASCIA
| D69 |
2009-2010 |
02 |
|
| 034 |
11589293 |
RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (FRT BPR FASCIA (PUSH IN))
|
2009-2010 |
02 |
|
| 035 |
11561427 |
SCREW - RND HD W/SHLDR M6X1X24 (FRT BPR IMP BAR) |
|
2009-2010 |
05 |
| 036 |
11609422 |
БОЛТ, FRT BPR IMP BAR (M5X0.5X17.4, 14.2 OD, 9.8, GW3359, M-POINT) (0.206) |
D69 (B3T) (EXPORT) |
2009-2010 |
01 |
| 037 |
25812678 |
SENSOR, PEDESTRIAN IMPACT DETECTION (СМ. ГРУППУ 02.000 PEDESTRIAN PROTECTION SYSTEM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА.) (ACTIVE КАПОТ SYSTEM DISCRIMINATION SENSOR-FRT UPR BEAM) |
D69 (B3T) |
2009-2010 |
01 |
| 038 |
25891998 |
GRILLE, RAD UPR (СМ. ГРУППУ 01.000 GRILLE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
DN (CE4) |
2009-2010 |
01 |
| 039 |
10125439 |
RIVET, FLAT HD, 3 LEG EXPANSION, M4.8 SHAFT, 23.5 LG, 9.8 O.D., AL (FRT BPR FASCIA SUPT)
|
2009-2010 |
04 |
|
| 040 |
15272155 |
SUPPORT, FRT BPR FASCIA
| D69 |
2009-2010 |
01 |
|
| 041 |
11609540 |
БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (FRT BPR CTR FIL SUPT)
|
2009-2010 |
04 |
|
| 042 |
25796003 |
EXTENSION, FRT BPR FASCIA |
DN |
2009-2010 |
01 |
| 042 |
25796004 |
EXTENSION, FRT BPR FASCIA |
DN |
2009-2010 |
01 |
| 043 |
11589291 |
RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (FRT BPR FASCIA EXTN)
|
2009-2010 |
06 |
|
| 044 |
|
MOLDING, КАПОТ FRT |
|
2009-2010 |
|
| 045 |
11570524 |
RETAINER, КАПОТ CTR MLDG (10.5 X 11.8 X 8.73)
| DN |
2009-2010 |
08 |
|
| K01 |
25882978 |
DEFLECTOR, RAD AIR LWR (INCLS 15-17, 22, 24) (7.831) |
DN |
2009-2010 |
01 |
