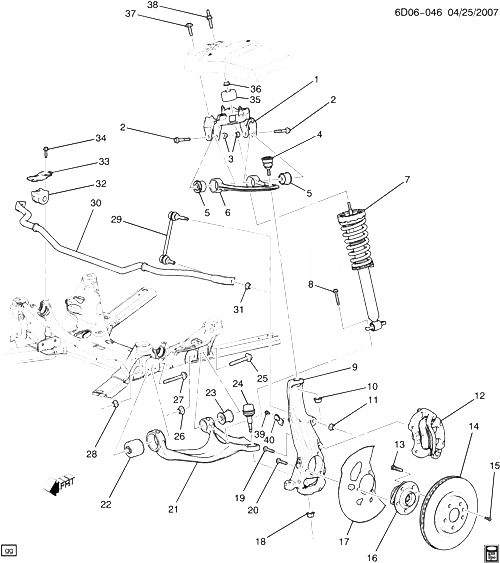

(6D06-046) - 2009-2010 DM,DN,DR69 ПОДВЕСКА-ПЕРЕДНЯЯ (ЗАДНИЙ КОЛЕСО DRIVE MN6,MX0) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15219467 BRACKET, FRT UPR CONT ARM (INCLS 2-6, 35) DR69 (EXPORT) 2009-2010 01
001 15219467 BRACKET, FRT UPR CONT ARM (INCLS 2-6, 35) (FRT UPR CONTROL ARM INCLUDED) DM69 2008-2010 01
001 15219468 BRACKET, FRT UPR CONT ARM (INCLS 2-6, 35) DM69 (MYB, MX0) 2008-2009 01
001 15219468 BRACKET, FRT UPR CONT ARM (INCLS 2-6, 35) DR69 (MYB, MX0) (EXPORT) 2009-2009 01
001 19168536 BRACKET, FRT UPR CONT ARM (INCLS 2-6, 35) DM (MYB, MX7) 2008-2010 01
001 25849157 BRACKET, FRT UPR CONT ARM (INCLS 2-6, 35) DN69 2009-2010 01
001 25849158 BRACKET, FRT UPR CONT ARM (INCLS 2-6, 35) DN69 2009-2010 01
002 11519961 БОЛТ-HFH M12X1.75X75, 28.25 THD, 26.6 OD, 10.9, 7114M, MACH, HDR-PT (ЧАСТЬ OF 1) 2008-2010 04
003 11516078 ГАЙКА, FRT UPR CONT ARM (ЧАСТЬ OF 1) (M12X1.75X18) (8.917) DN69 2009-2009 04
003 11516078 ГАЙКА, FRT UPR CONT ARM (ЧАСТЬ OF 1) (M12X1.75X18) (8.917) DR69 (EXPORT) 2009-2009 04
004 STUD, FRT UPR CONT ARM BALL (ЧАСТЬ OF 1) 2009-2010
005 BUSHING, FRT UPR CONT ARM (ЧАСТЬ OF 1) 2009-2010
006 ARM, FRT UPR CONT (ЧАСТЬ OF 1) 2009-2010
007 АМОРТИЗАТОР, FRT SHK (W/SPR) (СМ. ГРУППУ 07.000 АМОРТИЗАТОР/ПЕРЕДНЯЯ СТОЙКА ПРУЖИНА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2009-2010
008 11516546 БОЛТ, HFL, M8X1.25X50, 37.2 THD, 18 OD, 10.9, PZO 7114M (FRT S/ABS) 2008-2010 04
009 15775067 KNUCKLE, STRG (INCLS 39, 40) DM (J55, JE5, MN6, MX0) 2008-2010 01
009 15775067 KNUCKLE, STRG (INCLS 39, 40) DN (J56) 2009-2010 01
009 15775067 KNUCKLE, STRG (INCLS 39, 40) DN (JJL, J63) 2009-2010 01
009 15775067 KNUCKLE, STRG (INCLS 39, 40) DR (J55, JE5, MN6, MX0) (EXPORT) 2009-2010 01
009 15775068 KNUCKLE, STRG (INCLS 39, 40) DM (JE5, J55, MN6, MX0) 2008-2010 01
009 15775068 KNUCKLE, STRG (INCLS 39, 40) DN (J56) 2009-2010 01
009 15775068 KNUCKLE, STRG (INCLS 39, 40) DN (J63, JJL) 2009-2010 01
009 15775068 KNUCKLE, STRG (INCLS 39, 40) DR (JE5, J55, MN6, MX0) (EXPORT) 2009-2010 01
010 ГАЙКА, FRT UPR CONT ARM BALL STUD 2008-2010
010 11519879 ГАЙКА, FRT UPR CONT ARM BALL STUD (TO STRG ARM) (M12X1.75X16.75, 28 OD) (8.915) D69 2008-2009 02
011 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (FRT STAB SHF LINK) 2008-2010 02
012 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ DISC ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2010
013 11588811 STUD, FRT WHL (ЧАСТЬ OF 16) (M14X1.5X24, 58 TOTAL LENGTH) DM 2008-2010 10
013 11588811 STUD, FRT WHL (ЧАСТЬ OF 16) (M14X1.5X24, 58 TOTAL LENGTH) DN 2009-2010 10
013 11588811 STUD, FRT WHL (ЧАСТЬ OF 16) (M14X1.5X24, 58 TOTAL LENGTH) DR (EXPORT) 2009-2010 10
014 15267102 ROTOR, FRT BRK (MCHG) DM (JE5) 2008-2010 02
014 15267102 ROTOR, FRT BRK (MCHG) DR (JE5) (EXPORT) 2009-2010 02
014 15267103 ROTOR, FRT BRK (MCHG) DM (J55) 2008-2010 02
014 15267103 ROTOR, FRT BRK (MCHG) DR (J55) (EXPORT) 2009-2010 02
014 20795300 ROTOR, FRT BRK DN69 (J63) 2009-2010 01
014 20795302 ROTOR, FRT BRK DN69 (J63) 2009-2010 01
014 25851237 ROTOR, FRT BRK DN (J56) 2009-2010 02
015 11570339 БОЛТ, FRT BRK ROT (M6X1X20, 12.3 OD) (14.2 THD) (8.908) D 2009-2010 02
016 13502216 HUB, FRT WHL (W/BRG) (INCLS 13) (W/O SENSOR) (5.806) (ACDelco #FW372) DR69 (JE5, J55) (EXPORT) 2009-2009 01
016 13502216 HUB, FRT WHL (W/BRG) (INCLS 13) (W/O SENSOR) (5.806) (ACDelco #FW372) DM69 (JE5, J55) 2009-2009 02
016 25954415 HUB, FRT WHL (W/BRG) (INCLS 13) (5.806) (ACDelco #RW20-119) DN (J56, J63) 2009-2010 02
017 25851241 SHIELD, FRT BRK DN (J56) 2009-2009 01
017 25851303 SHIELD, FRT BRK DN (J56) 2009-2009 01
017 25861810 SHIELD, FRT BRK DM69 (JE5, MN6, MX0) 2008-2009 01
017 25861810 SHIELD, FRT BRK DR69 (JE5, MN6, MX0) (EXPORT) 2009-2009 01
017 25861811 SHIELD, FRT BRK DM69 (JE5, MN6, MX0) 2008-2010 01
017 25861811 SHIELD, FRT BRK DR69 (JE5, MN6, MX0) (EXPORT) 2009-2010 01
017 25861812 SHIELD, FRT BRK DM69 (J55, MN6, MX0) 2008-2009 01
017 25861812 SHIELD, FRT BRK DR69 (J55, MN6, MX0) (EXPORT) 2009-2009 01
017 25861813 SHIELD, FRT BRK DM69 (J55, MN6, MX0) 2008-2009 01
017 25861813 SHIELD, FRT BRK DR69 (J55, MN6, MX0) (EXPORT) 2009-2009 01
017 25949512 SHIELD, FRT BRK DN69 (J56, J63) 2009-2010 01
017 25949513 SHIELD, FRT BRK DN69 (J56, J63) 2009-2010 01
018 03537773 ГАЙКА, FRT LWR CONT ARM FRT (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) (5.383) DM (MYB, FE1, FE2, MX7) 2009-2009 02
018 11518854 ГАЙКА, FRT LWR CONT ARM FRT (M14X2) (8.917) DM (MV7, MYB, FE1, FE2, FE3, JJL, MN6, MX0) 2009-2009 02
018 11518854 ГАЙКА, FRT LWR CONT ARM FRT (M14X2) (8.917) DN (FE4, JJL) 2009-2009 02
018 11518854 ГАЙКА, FRT LWR CONT ARM FRT (M14X2) (8.917) DR (MV7, MYB, FE1, FE2, FE3, JJL, MN6, MX0) (EXPORT) 2009-2009 02
019 11518314 БОЛТ, FRT BRK CLPR (USE T/W 89021297 ADH) (M14X2X50, 34THD) (8.900) DM 2008-2009 04
019 11518314 БОЛТ, FRT BRK CLPR (USE T/W 89021297 ADH) (M14X2X50, 34THD) (8.900) DN 2009-2009 04
019 11518314 БОЛТ, FRT BRK CLPR (USE T/W 89021297 ADH) (M14X2X50, 34THD) (8.900) DR (EXPORT) 2009-2009 04
019 11570788 БОЛТ, FRT BRK CLPR (M14X2.0X56.5) DN (J56, J63) 2009-2010 04
020 18022052 БОЛТ, FRT WHL BRG (M12X1.75X51, 20THD) (5.812) DM69 (JE5, J55, MN6, MX0) 2008-2009 02
020 18022052 БОЛТ, FRT WHL BRG (M12X1.75X51, 20THD) (5.812) DN69 (J56) 2009-2009 02
020 18022052 БОЛТ, FRT WHL BRG (M12X1.75X51, 20THD) (5.812) DR69 (J55, MN6, MX0) 2009-2009 03
021 15250265 ARM, FRT LWR CONT (INCLS 22-24) DM69 (MN6, MX0) 2008-2009 01
021 15250266 ARM, FRT LWR CONT (INCLS 22-24) DM69 (MN6, MX0) 2008-2009 01
021 25862781 ARM, FRT LWR CONT (INCLS 22-24) DM (MYB, FE1, FE2, JJL, MX7) 2009-2009 01
021 25862782 ARM, FRT LWR CONT (INCLS 22-24) DM (MYB, FE1, FE2, JJL, MX7) 2009-2009 01
022 BUSHING, FRT LWR CONT ARM (ЧАСТЬ OF 21) 2009-2010
023 BUSHING, FRT LWR CONT ARM (ЧАСТЬ OF 21) 2009-2010
024 STUD, FRT LWR CONT ARM BALL (ЧАСТЬ OF 21) 2009-2010
025 11562579 БОЛТ, FRT LWR CONT ARM RR (HFH, M16X2X110, 38 THD, 39.5 OD, 10.9 STL) (8.900) DM, DR (MV7, MYB, FE1, FE2, FE3, JJL, MN6, MX0) 2009-2009 02
025 11562579 БОЛТ, FRT LWR CONT ARM RR (HFH, M16X2X110, 38 THD, 39.5 OD, 10.9 STL) (8.900) DN (FE4, JJL) 2009-2009 02
026 03537773 ГАЙКА, FRT LWR CONT ARM RR (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) (5.383) DM (MYB, FE1, FE2, MX7) 2008-2009 02
026 11562581 ГАЙКА, FRT LWR CONT ARM RR (8.917) DM (MV7, MYB, FE1, FE2, FE3, JJL, MN6, MX0) 2009-2009 02
026 11562581 ГАЙКА, FRT LWR CONT ARM RR (8.917) DN (FE4, JJL) 2009-2009 02
026 11562581 ГАЙКА, FRT LWR CONT ARM RR (8.917) DR (MV7, MYB, FE1, FE2, FE3, JJL, MN6, MX0) (EXPORT) 2009-2009 02
027 11562580 БОЛТ, FRT LWR CONT ARM FRT (HFH, M14X2X110, 48 THD, 35.0 OD, 10.9) (NON-POINTED POINT) D69 (MV7, MYB, FE1, FE2, FE3, JJL, MN6, MX0) 2009-2009 02
028 11518854 ГАЙКА, FRT LWR CONT ARM FRT (M14X2) (8.917) DM, DR (MV7, MYB, FE1, FE2, FE3, JJL, MN6, MX0) 2009-2009 02
028 11518854 ГАЙКА, FRT LWR CONT ARM FRT (M14X2) (8.917) DN (FE4, JJL) 2009-2009 02
029 15250258 LINK, FRT STAB SHF DM (MN6, MX0) 2009-2010 02
029 15250258 LINK, FRT STAB SHF DR (MN6, MX0) (EXPORT) 2009-2010 02
030 15250259 SHAFT, FRT STAB DM (FE1, MN6, MX0) 2009-2009 01
030 15250259 SHAFT, FRT STAB DR (FE1, MN6, MX0) (EXPORT) 2009-2009 01
030 15948223 SHAFT, FRT STAB DN (JJL) 2009-2010 01
030 25808055 SHAFT, FRT STAB DM (FE2, FE3, MN6, MX0) 2009-2009 01
030 25808055 SHAFT, FRT STAB DR (FE2, FE3, MN6, MX0) (EXPORT) 2009-2009 01
031 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (FRT STAB SHF LINK (AT SHF)) 2008-2010 02
032 15250272 INSULATOR, FRT STAB SHF DM69 (FE1, MN6, MX0) 2008-2009 02
032 15250272 INSULATOR, FRT STAB SHF DR (FE1, MN6, MX0) (EXPORT) 2009-2009 02
032 25808056 INSULATOR, FRT STAB SHF DM69 (FE2, FE3, MN6, MX0) 2009-2009 02
032 25808056 INSULATOR, FRT STAB SHF DR69 (FE2, FE3, MN6, MX0) (EXPORT) 2009-2009 02
032 25808056 INSULATOR, FRT STAB SHF DN69 2009-2010 02
033 15250260 CЛАМПА, FRT STAB SHF INSL DM, DN (MN6, MX0) 2009-2010 02
033 15250260 CЛАМПА, FRT STAB SHF INSL DR (MN6, MX0) (EXPORT) 2009-2010 02
034 11518626 БОЛТ, HFH, M10X1.5X40, 28.7 THD, 22.3 OD, 10.9, GMW3359, 7.5MM MAT POINT (FRT STAB SHF INSL CLA) 2008-2010 04
035 MOUNT, FRT S/ABS UPR (ЧАСТЬ OF 1) 2009-2010
036 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (FRT S/ABS) (ACDelco #11517996) 2008-2010 02
037 11519393 БОЛТ, HEX W/CON ПРУЖИНА WA, M12X1.75X50, 35 OD, 42 THD, 10.9, 7114M (FRT S/ABS UPR BRKT) 2008-2010 10
038 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (ЧАСТЬ OF 4) (ACDelco #11517996) 2008-2010 02
039 11516477 БОЛТ-HWH, M6X1X13, 13.2 OD, 6202M, 7114M, TAP, TR-PT (ЧАСТЬ OF 9) 2008-2010 02
040 25809676 BRACKET, WHL SPD SEN WIRE (ЧАСТЬ OF 9) DM 2008-2010 01
040 25809676 BRACKET, WHL SPD SEN WIRE (ЧАСТЬ OF 9) DN 2009-2010 01
040 25809676 BRACKET, WHL SPD SEN WIRE (ЧАСТЬ OF 9) DR (EXPORT) 2009-2010 01
040 25809677 BRACKET, WHL SPD SEN WIRE (ЧАСТЬ OF 9) DM 2008-2010 01
040 25809677 BRACKET, WHL SPD SEN WIRE (ЧАСТЬ OF 9) DN 2009-2010 01
040 25809677 BRACKET, WHL SPD SEN WIRE (ЧАСТЬ OF 9) DR (EXPORT) 2009-2010 01
