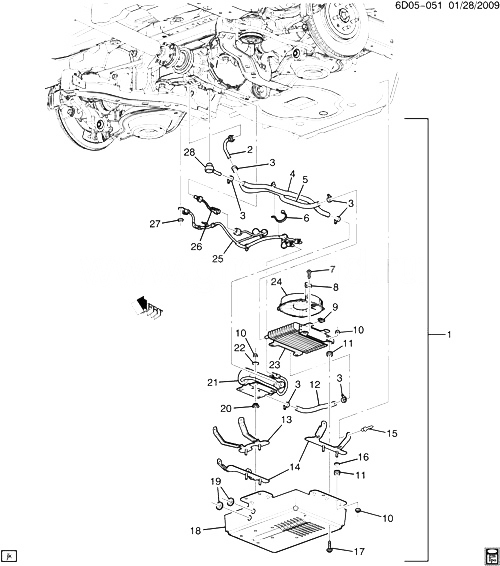

(6D05-051) - 2009 DN69 DIFFERENTIAL КРОНШТЕЙН COOLER(KNR) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20792934 COOLER, DIFF OIL (INCLS 2-28) DN69 (KNR) (EXPORT) 2009-2009 01
002 FITTING, DIFF OIL CLR (*KIT4) 2009-2009
003 CЛАМПА, DIFF OIL CLR (*KIT3) 2009-2009
004 HOSE, DIFF OIL CLR OTLT (*KIT3) 2009-2009
005 HOSE, DIFF OIL CLR INL (*KIT3) 2009-2009
006 STRAP, DIFF OIL CLR HOSE (*KIT3) 2009-2009
007 БОЛТ, DIFF OIL CLR (ЧАСТЬ OF 23) 2009-2009
008 BRACKET, DIFF OIL CLR (ЧАСТЬ OF 23) 2009-2009
009 ГАЙКА, DIFF OIL CLR (ЧАСТЬ OF 23) 2009-2009
010 ГАЙКА, BRACKET DIFF OIL CLR (*KIT1) 2009-2009
011 GROMMET, DIFF OIL CLR (*KIT1) 2009-2009
012 HOSE, DIFF OIL CLR OTLT (*KIT3) 2009-2009
013 BRACKET, DIFF OIL CLR (*KIT2) 2009-2009
014 BRACKET, DIFF OIL CLR (*KIT2) 2009-2009
015 RIVET, DIFF OIL CLR (*KIT1) 2009-2009
016 WASHER, BRACKET DIFF OIL CLR (*KIT1) 2009-2009
017 БОЛТ, DIFF OIL CLR (*KIT1) 2009-2009
018 SHIELD, DIFF OIL CLR (*KIT2) 2009-2009
019 GROMMET, DIFF OIL CLR HOSE (*KIT1) 2009-2009
020 GROMMET, PUMP INTER AXLE DIFF LUB (*KIT1) 2009-2009
021 15786766 PUMP, INTER AXLE DIFF LUB DN69 (KNR) (EXPORT) 2009-2009 01
022 WASHER, PUMP INTER AXLE DIFF LUB (*KIT1) 2009-2009
023 20792965 COOLER, DIFF OIL (W/ FAN) (INCLS 7-9, 24) DN69 (KNR) (EXPORT) 2009-2009 01
024 FAN, DIFF OIL CLR (ЧАСТЬ OF 23) 2009-2009
025 20792976 HARNESS, BODY RR WRG HARN EXTN DN69 (KNR) 2009-2009 01
026 20907436 SENSOR, DIFF OIL CLR TEMP DN69 (KNR) 2009-2009 01
027 ГАЙКА, BODY RR WRG HARN EXTN (*KIT1) 2009-2009
028 FITTING, DIFF OIL CLR (*KIT4) 2009-2009
K01 20792973 FASTENER KIT, DIFF OIL CLR (INCLS 10, 11, 15-17, 19, 20, 22, 27) DN69 (KNR) (EXPORT) 2009-2009 01
K02 20792966 BRACKET, DIFF OIL CLR (INCLS 13, 14, 18) DN69 (KNR) (EXPORT) 2009-2009 01
K03 20792972 HOSE KIT, DIFF OIL CLR (INCLS 3-6, 12) DN69 (KNR) (EXPORT) 2009-2009 01
K04 20792967 ADAPTER, DIFF OIL CLR (INCLS 2, 28) DN69 (KNR) (EXPORT) 2009-2009 01
