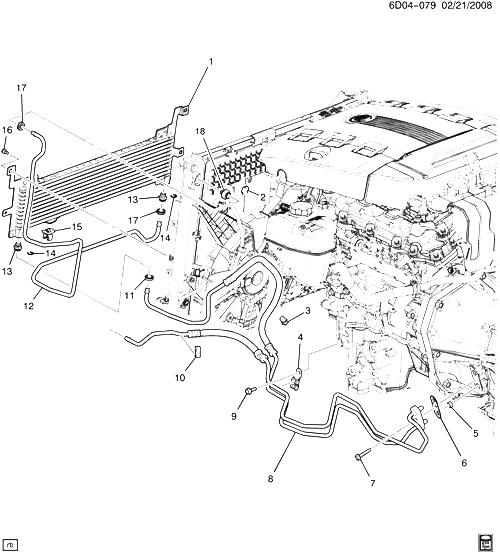

(6D04-079) - 2008-2009 DM69 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА (MYB, ПОЛНОПРИВОДНЫЙ MX7, EXTRA CAPACITY V03, HEAVY DUTY V08) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25829909 COOLER, TRANS FLUID AUX (INCLS 13-15) (ACDelco #25829909) DM 2008-2010 01
001 25829909 COOLER, TRANS FLUID AUX (INCLS 13-15) (ACDelco #25829909) DR (EXPORT) 2009-2010 01
002 RETAINER, TRANS FLUID CLR PIPE FTG 2008-2009
003 25830126 CLIP, TRANS FLUID CLR PIPE DM 2008-2010 01
003 25830126 CLIP, TRANS FLUID CLR PIPE DR (EXPORT) 2009-2010 01
004 BRACKET, TRANS OIL CLR INL OTLT PIPE (ЧАСТЬ OF 8) 2008-2009
005 24237658 SEAL, TRANS FLUID CLR PIPE FTG (SEALS ONE PIPE) D 2008-2010 02
006 15251488 SEAL, TRANS FLUID CLR HOSE (ЧАСТЬ OF 8) (SEALS TWO ТРУБКИ) DM 2008-2010 01
006 15251488 SEAL, TRANS FLUID CLR HOSE (ЧАСТЬ OF 8) (SEALS TWO ТРУБКИ) DR (EXPORT) 2009-2010 01
007 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) 2008-2010 01
008 25829902 HOSE, TRANS FLUID CLR (INCLS 4, 6, 11) DM (MYB, MX7, V03) 2008-2010 01
009 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2008-2010 01
010 10405874 CLIP, TRANS FLUID CLR HOSE (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) D69 2008-2009 01
011 15052228 CЛАМПА, TRANS FLUID CLR HOSE (ЧАСТЬ OF 8) (PLASTIC RETAINER) (ACDelco #15052228) DM 2008-2010 02
011 15052228 CЛАМПА, TRANS FLUID CLR HOSE (ЧАСТЬ OF 8) (PLASTIC RETAINER) (ACDelco #15052228) DR (EXPORT) 2009-2010 02
012 25829910 PIPE, TRANS FLUID AUX CLR (INCLS 17) DM69 (LP1, LY7, LLT) 2008-2009 01
012 25829910 PIPE, TRANS FLUID AUX CLR (INCLS 17) DR69 (LP1, LY7, LLT) (EXPORT) 2009-2009 01
013 19129762 FITTING, TRANS FLUID CLR PIPE (ЧАСТЬ OF 1) DM 2008-2010 04
013 19129762 FITTING, TRANS FLUID CLR PIPE (ЧАСТЬ OF 1) DR (EXPORT) 2009-2010 04
014 24205103 RETAINER, TRANS FLUID AUX CLR (ЧАСТЬ OF 1) (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103) DM 2008-2010 01
014 24205103 RETAINER, TRANS FLUID AUX CLR (ЧАСТЬ OF 1) (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103) DR (EXPORT) 2009-2010 01
015 10405874 CLIP, TRANS FLUID CLR HOSE (ЧАСТЬ OF 1) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) D69 2008-2009 01
016 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2008-2010 02
017 15052228 CAP, TRANS FLUID CLR PIPE CONN (ЧАСТЬ OF 12) (PLASTIC RETAINER) (ACDelco #15052228) DM 2008-2010 02
017 15052228 CAP, TRANS FLUID CLR PIPE CONN (ЧАСТЬ OF 12) (PLASTIC RETAINER) (ACDelco #15052228) DR (EXPORT) 2009-2010 02
018 FITTING, TRANS FLUID CLR PIPE 2008-2009
