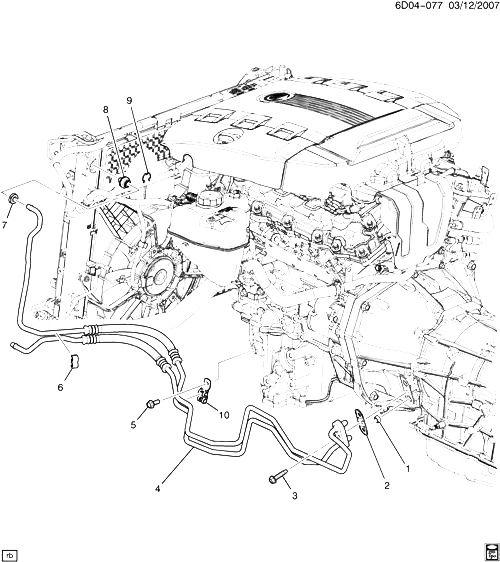

(6D04-077) - 2008-2009 DM69 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА (MYB, ПОЛНОПРИВОДНЫЙ MX7, EXC EXTRA CAPACITY V03, HEAVY DUTY V08) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24237658 SEAL, TRANS FLUID CLR PIPE FTG (SEALS ONE PIPE) D 2008-2010 02
002 15251488 SEAL, TRANS FLUID CLR HOSE (ЧАСТЬ OF 4) (SEALS TWO ТРУБКИ) DM 2008-2010 01
002 15251488 SEAL, TRANS FLUID CLR HOSE (ЧАСТЬ OF 4) (SEALS TWO ТРУБКИ) DR (EXPORT) 2009-2010 01
003 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) 2008-2010 01
004 15853683 HOSE, TRANS FLUID CLR (INCLS 2, 6, 7, 10) DM (MYB, MX7) (EXC V03) 2008-2010 01
004 15853683 HOSE, TRANS FLUID CLR (INCLS 2, 6, 7, 10) DR (MYB, MX7) (EXC V03) (EXPORT) 2009-2010 01
005 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2008-2010 01
006 10405874 CLIP, TRANS FLUID CLR HOSE (ЧАСТЬ OF 4) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) D69 2008-2009 01
007 15052228 CЛАМПА, TRANS FLUID CLR HOSE (ЧАСТЬ OF 4) (PLASTIC RETAINER) (ACDelco #15052228) DM 2008-2010 02
007 15052228 CЛАМПА, TRANS FLUID CLR HOSE (ЧАСТЬ OF 4) (PLASTIC RETAINER) (ACDelco #15052228) DR (EXPORT) 2009-2010 02
008 FITTING, TRANS FLUID CLR PIPE 2008-2009
009 RETAINER, TRANS FLUID CLR PIPE FTG 2008-2009
010 BRACKET, TRANS OIL CLR INL OTLT PIPE (ЧАСТЬ OF 4) 2008-2009
