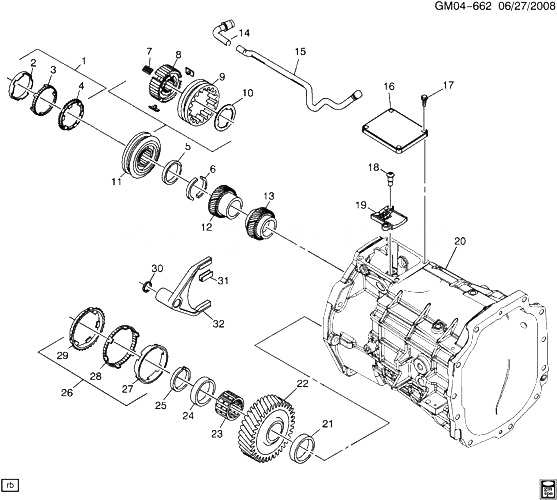

(GM04-662) - 2009-2010 DN69 6-ТИ СКОРОСТНАЯ МКПП ЧАСТЬ 4 (MG9) 6TH REVERSE GEARS CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19180031 RING, REV GR BLOCKING (INCLS 2-4) D (MG9) 2009-2010 01
002 CONE, REV GR SYN (INNER) (ЧАСТЬ OF 1) 2009-2010
003 CONE, REV GR SYN (OUTER) (ЧАСТЬ OF 1) 2009-2010
004 RING, REV GR BLOCKING (ЧАСТЬ OF 1) 2009-2010
005 19180521 WASHER, 5TH GR THR (ENCLOSURE RING) (4.419) D (MG9) 2009-2010 01
006 19180520 WASHER, 5TH GR THR (SPLIT WASHER) (4.419) D (MG9) 2009-2010 01
007 19178694 ПРУЖИНА, REV GR SYN (ЧАСТЬ OF 11) (4.384) D (MG9) 2009-2010 03
008 HUB, REV GR (ЧАСТЬ OF 11) 2009-2010
009 SLEEVE, REV GR SYN (ЧАСТЬ OF 11) 2009-2010
010 RETAINER, REV GR SYN INSERT (ЧАСТЬ OF 11) 2009-2010
011 19180030 SYNCHRONIZER, REV GR (INCLS 7-10) D (MG9) 2009-2010 01
012 19206231 GEAR, 5TH (DRVN) DN (MG9) 2009-2010 01
013 19206230 GEAR, 6TH (DRVN) DN (MG9) 2009-2010 01
014 PIPE, TRANS VENT (ЧАСТЬ OF 15) 2009-2010
015 19206216 PIPE, TRANS VENT (INCLS 14) DN (MG9) 2009-2010 01
016 89059434 COVER, SHFT CONT SHF D (LSA, MG9) 2009-2010 01
017 12455048 БОЛТ, SHFT CONT SHF CVR (M8X1.25) (4.307) D (MG9) 2009-2010 04
018 12523243 БОЛТ, SHFT GDE DTNT PLT (4.303) D (MG9) 2009-2010 02
019 19178664 PLATE, SHFT GDE DTNT D (MG9) 2009-2010 01
020 19206206 CASE, TRANS DN (MG9) 2009-2010 01
021 19206237 SPACER, 6TH CNTR GR DN (MG9) 2009-2010 01
022 19206233 GEAR, 6TH (DRV) DN (MG9) 2009-2010 01
023 12523247 BEARING, 6TH GR (4.355) D (MG9) 2009-2010 01
024 19180037 SPACER, 6TH GR BRG D (MG9) 2009-2010 01
025 12541299 RING, 5TH 6TH GR SYN HUB RET (.89 I.D.) D (MG9) 2009-2010 01
026 19180031 RING, 6TH GR BLOCKING (INCLS 27-29) D (MG9) 2009-2010 01
027 CONE, 5TH 6TH GR SYN OTR (INNER) (ЧАСТЬ OF 26) 2009-2010
028 CONE, 5TH 6TH GR SYN OTR (OUTER) (ЧАСТЬ OF 26) 2009-2010
029 RING, 6TH GR BLOCKING (ЧАСТЬ OF 26) 2009-2010
030 12523055 RING, REV SHFT FORK RET (4.422) D (MG9) 2009-2010 01
031 12523208 INSERT, REV SHFT FORK D (MG9) 2009-2010 02
032 19180045 FORK, REV SHFT D (MG9) 2009-2010 01
