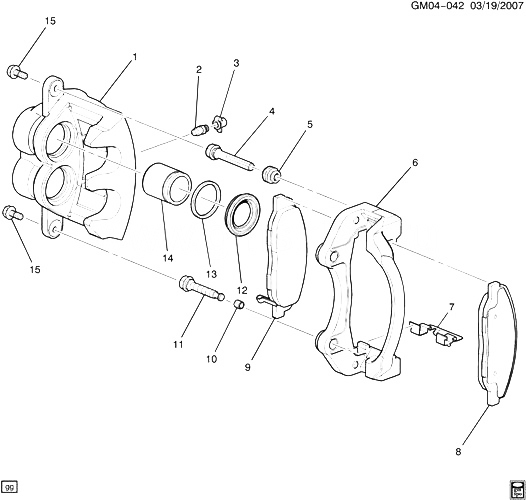

(GM04-042) - 2009 DM,DR69 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ (JE5) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15851351 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) DM (JE5, MX7) 2008-2009 01
001 15851351 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) DM (JE5, MN6, MX0) 2008-2010 01
001 15851351 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) DR (JE5, MX7) (EXPORT) 2009-2009 01
001 15851351 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) DR (JE5, MN6, MX0) (EXPORT) 2009-2010 01
001 15853359 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) DM (JE5, MX7) 2008-2009 01
001 15853359 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) DM (JE5, MN6, MX0) 2008-2010 01
001 15853359 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) DR (JE5, MX7) (EXPORT) 2009-2009 01
001 15853359 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (17) DR (JE5, MN6, MX0) (EXPORT) 2009-2010 01
002 89027179 VALVE, FRT BRK CLPR BLEDR ( DM (JE5) 2008-2010 02
002 89027179 VALVE, FRT BRK CLPR BLEDR ( DR (JE5) (EXPORT) 2009-2010 02
003 88935785 CAP, FRT BRK CLPR BLEDR VLV ( DM (JE5) 2008-2010 02
003 88935785 CAP, FRT BRK CLPR BLEDR VLV ( DR (JE5) (EXPORT) 2009-2010 02
004 15851359 PIN, FRT BRK CLPR GDE (W/O BUSHING) DM (JE5) 2008-2010 02
004 15851359 PIN, FRT BRK CLPR GDE (W/O BUSHING) DR (JE5) 2009-2010 02
005 SEAL, FRT BRK CLPR GDE PIN (*KIT3) 2009-2009
006 15851354 BRACKET, FRT BRK CLPR (17) DM (JE5) 2008-2010 02
006 15851354 BRACKET, FRT BRK CLPR (17) DR (JE5) (EXPORT) 2009-2010 02
007 2009-2009
008 PAD, FRT DISC BRK OTR (*KIT2) 2009-2009
009 PAD, FRT DISC BRK INR (*KIT2) 2009-2009
010 BUSHING, FRT BRK CLPR GDE PIN ( 2009-2009
011 15851358 PIN, FRT BRK CLPR GDE (INCLS 10) (W/PLASTIC SLEEVE 1.5MM FROM TIP) (W/BUSHING) DM (JE5) 2008-2010 02
011 15851358 PIN, FRT BRK CLPR GDE (INCLS 10) (W/PLASTIC SLEEVE 1.5MM FROM TIP) (W/BUSHING) DR (JE5) 2009-2010 02
012 BOOT, FRT BRK CLPR PSTN ( 2009-2009
013 SEAL, FRT BRK CLPR PSTN ( 2009-2009
014 15926281 PISTON, FRT BRK CLPR ( DM (JE5) 2008-2010 04
014 15926281 PISTON, FRT BRK CLPR ( DR (JE5) (EXPORT) 2009-2010 04
015 89027183 DM (JE5) 2008-2010 04
015 89027183 DR (JE5) (EXPORT) 2009-2010 04
K01 25814701 SEAL KIT, FRT BRK CLPR PSTN (INCLS 12, 13) (INCLS 2 PISTON BOOTS PISTON SEALS) D (JE5, JL9) 2009-2010 02
K02 25814699 PAD KIT, FRT DISC BRK (INCLS 7-9) DM69 (JE5, MN6, MX0, MX7) 2008-2010 01
K02 25814699 PAD KIT, FRT DISC BRK (INCLS 7-9) DR69 (JE5, MN6, MX0, MX7) (EXPORT) 2009-2010 01
K02 25940447 PAD KIT, FRT DISC BRK (INCLS 7-9) DN69 2009-2010 01
K03 25814700 SEAL KIT, FRT BRK CLPR GDE PIN (INCLS 5, 10) (INCLS 2 SEALS 1 BUSHING) DM69 (JE5) 2008-2010 02
K03 25814700 SEAL KIT, FRT BRK CLPR GDE PIN (INCLS 5, 10) (INCLS 2 SEALS 1 BUSHING) DR69 (JE5) (EXPORT) 2009-2010 02
