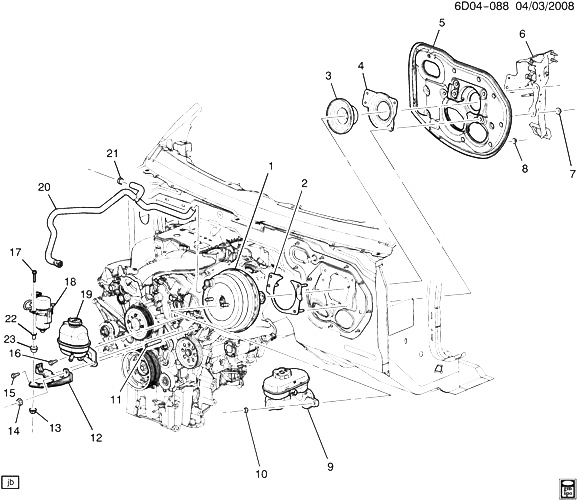

(6D04-088) - 2009 DM,DR69 ТОРМОЗНОЙ УСИЛИТЕЛЬ КРЕПЛЕНИЕ ГЛАВНОГО ЦИЛИНДРА (LLT/3.6V) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20800047 BOOSTER, P/B ( DM, DN69 2009-2009 01
001 20800049 BOOSTER, P/B ( DR69 (EXPORT) 2009-2009 01
002 25675835 BRACKET, BRK PED BRKT DM69 2008-2009 01
002 25675835 BRACKET, BRK PED BRKT DN69 2009-2009 01
002 25690107 BRACKET, BRK PED BRKT DR69 (EXPORT) 2009-2009 01
003 15849744 BOOT, BRK PED PUSH ROD DM, DN 2009-2009 01
003 15849744 BOOT, BRK PED PUSH ROD DR (EXPORT) 2009-2009 01
004 25697461 RETAINER, BRK PED PUSH ROD BOOT DM, DN 2009-2009 01
004 25697462 RETAINER, BRK PED PUSH ROD BOOT DR (EXPORT) 2009-2009 01
005 15810950 BARRIER, BRK PED BRKT SND DR (EXPORT) 2009-2009 01
005 25913292 BARRIER, BRK PED BRKT SND DM69 (MYB, MX0, MX7) 2008-2009 01
005 25913292 BARRIER, BRK PED BRKT SND DN (MYD, MX0) 2009-2009 01
005 25931380 BARRIER, BRK PED BRKT SND DM (MV7, MN6) 2009-2009 01
006 PEDAL, BRK (W/BRKT) ( 2008-2009
007 11514519 2008-2009 04
008 11609411 2008-2009 08
009 25847704 CYLINDER, BRK MAS ( DR, DY (EXPORT) 2009-2009 01
009 25847705 CYLINDER, BRK MAS ( DM, DN, DW, DX 2009-2009 01
010 11609949 2008-2009 02
011 11571231 STUD, P/B BOOS PUMP BRKT (STUD-STRAIGHT, M12X1.75X24, M12X1.75X45.5 B LOBED, 10.9, E11 TORX) D 2009-2009 01
012 25806500 BRACKET, VAC PUMP D (LLT) 2008-2009 01
013 11516075 2008-2009 02
014 11514598 2008-2009 01
015 11518075 2008-2009 01
016 11588712 2008-2009 01
017 11589303 2008-2009 02
018 15797569 PUMP, P/B BOOS AUX D 2008-2009 01
019 20774507 RESERVOIR, P/S FLUID ( DM69 (LLT, LP1, LY7) 2009-2009 01
019 20774507 RESERVOIR, P/S FLUID ( DR69 (LLT, LP1, LY7) (EXPORT) 2009-2009 01
019 25955223 RESERVOIR, P/S FLUID ( DN 2009-2009 01
020 25815111 HOSE, P/B BOOS VAC (INCLS 21) DR (LLT) (EXPORT) 2009-2009 01
020 25926187 HOSE, P/B BOOS VAC (INCLS 21) DM69 (LLT) (EXC CZ2) 2008-2009 01
020 25926187 HOSE, P/B BOOS VAC (INCLS 21) DM69 (LLT, CZ2) (EXPORT) 2008-2009 01
021 C 2009-2009
022 SPACER, P/B BOOS PUMP (*KIT1) 2009-2009
023 INSULATOR, P/B BOOS PUMP (*KIT1) 2009-2009
K01 25775922 INSULATOR KIT, P/B BOOS PUMP (INCLS 22, 23) (ON PUMP) D 2008-2009 01
