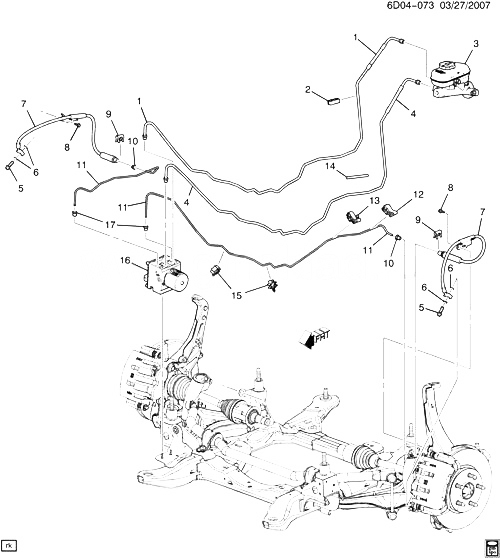

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25882806 |
PIPE, BRK PRESS MOD VLV RR |
DM69 (MX7) |
2009-2009 |
01 |
| 002 |
15904915 |
SPACER, FRT BRK PIPE |
DM |
2008-2009 |
02 |
| 003 |
|
CYLINDER, BRK MAS ( |
|
2008-2010 |
|
| 004 |
25882810 |
PIPE, BRK PRESS MOD VLV FRT |
DM (MX7) |
2009-2009 |
01 |
| 005 |
11570052 |
FITTING, FRT BRK HOSE ( |
D |
2008-2010 |
01 |
| 006 |
21012386 |
WASHER, FRT BRK HOSE ( |
D |
2008-2010 |
AR |
| 007 |
25928987 |
HOSE, FRT BRK (INCLS 5, 6)
| DM (MX7) |
2008-2010 |
01 |
|
| 007 |
25928988 |
HOSE, FRT BRK (INCLS 5, 6) |
DM (MX7) |
2008-2010 |
01 |
| 008 |
11516521 |
|
|
2008-2010 |
02 |
| 009 |
11569742 |
RETAINER, FRT BRK HOSE (1 SIDED RETAINER)
| D |
2008-2010 |
02 |
|
| 010 |
11569751 |
|
|
2008-2010 |
02 |
| 011 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| D |
2008-2010 |
AR |
|
| 012 |
15904902 |
RETAINER, FRT BRK PIPE (UPSIDE DOWN 3 TUBE CLIP W/O TREE)
| DM (MX7) |
2008-2009 |
02 |
|
| 013 |
15904903 |
RETAINER, FRT BRK PIPE (UPSIDE DOWN 3 TUBE WITH TREE)
| DM, DW |
2008-2009 |
01 |
|
| 014 |
12477665 |
PROTECTOR, FRT BRK PIPE (FOR 1/4 PIPE) (HT SHRINK) |
DM |
2008-2010 |
AR |
| 014 |
88964150 |
PROTECTOR, FRT BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) |
DM |
2008-2010 |
02 |
| 015 |
15904901 |
RETAINER, FRT BRK PIPE (STAR SHAPED 3 TUBE W/TREE)
| DM (MN6, MX0, MX7) |
2008-2010 |
02 |
|
| 016 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) ( |
|
2008-2010 |
|
| 017 |
11569750 |
|
|
2008-2010 |
02 |
