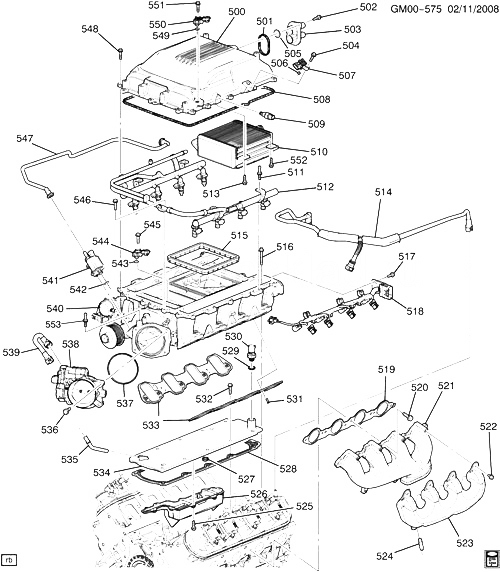

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 500 |
|
COVER, CHRG AIR CLR (INCLS 501-510, 513, 548-552) |
|
2009-2010 |
|
| 500 |
12631035 |
COVER, CHRG AIR CLR (INCLS 501-510, 513, 548-552) |
D (LSA) |
2009-2010 |
01 |
| 501 |
12608993 |
GASKET, SPCHG WATER MANIF ( |
DN (LSA) |
2009-2010 |
01 |
| 502 |
11562426 |
|
|
2009-2010 |
02 |
| 503 |
12612469 |
PIPE, CHRG AIR CLR COOL OTLT ( |
DN (LSA) |
2009-2010 |
01 |
| 504 |
11588714 |
|
|
2009-2010 |
01 |
| 505 |
12608997 |
SEAL, CHRG AIR CLR COOL PIPE (O-RING) ( |
D (LSA) |
2009-2010 |
02 |
| 506 |
|
SEAL, INT MANIF ( |
|
2009-2010 |
|
| 507 |
12592525 |
SENSOR, SPCHG AIR OTLT PRESS (INCLS 506) ( |
DN (LSA) |
2009-2010 |
01 |
| 508 |
12613457 |
GASKET, CHRG AIR CLR HSG ( |
DN (LSA) |
2009-2010 |
01 |
| 509 |
12614717 |
SENSOR, INT AIR TEMP ( |
DN (LSA) |
2009-2010 |
01 |
| 510 |
12604853 |
COOLER, CHRG AIR ( |
DN (LSA) |
2009-2010 |
01 |
| 511 |
11589406 |
STUD, F/INJN FUEL RL (3.265) |
DN (LSA) |
2009-2010 |
04 |
| 512 |
|
INJECTOR, M/PORT FUEL (W/FUEL RL) ( |
|
2009-2010 |
|
| 513 |
11610199 |
|
|
2009-2010 |
02 |
| 514 |
12605675 |
TUBE, PCV |
D (LSA) |
2009-2009 |
01 |
| 515 |
12612467 |
INSULATOR, CHRG AIR CLR LWR |
D (LSA) |
2009-2010 |
01 |
| 516 |
11588718 |
|
D (LSA) |
2009-2009 |
10 |
| 517 |
11588712 |
|
|
2009-2010 |
04 |
| 518 |
12612465 |
HARNESS, F/INJR WRG |
DN (LSA) |
2009-2010 |
01 |
| 518 |
12612466 |
HARNESS, F/INJR WRG |
DN (LSA) |
2009-2010 |
01 |
| 519 |
12620947 |
GASKET, EXH MANIF |
DN (LSA) |
2009-2010 |
02 |
| 520 |
11518860 |
|
|
2009-2010 |
12 |
| 521 |
12611322 |
MANIFOLD, EXH |
D (LSA) |
2009-2010 |
01 |
| 521 |
12611324 |
MANIFOLD, EXH |
D (LSA) |
2009-2010 |
01 |
| 522 |
24505098 |
|
|
2009-2010 |
12 |
| 523 |
12578031 |
SHIELD, EXH MANIF HT |
D (LSA) |
2009-2010 |
01 |
| 523 |
12578032 |
SHIELD, EXH MANIF HT |
D (LSA) |
2009-2010 |
01 |
| 524 |
11589264 |
STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH PIPE)
|
2009-2010 |
04 |
|
| 525 |
11517094 |
SCREW, M5X.8X15.6, 10.4 THD, 10.2 OD, 6202M, 7114M, TAPER-POINT ( |
|
2009-2010 |
07 |
| 526 |
|
BAFFLE, PCV ( |
|
2009-2010 |
|
| 527 |
12574886 |
SEAL, ENG BLK VALLEY CVR HIGH PRESS PORT ( |
D (LSA) |
2009-2010 |
08 |
| 528 |
12610141 |
GASKET, ENG BLK VALLEY CVR ( |
DN (LSA) |
2009-2010 |
01 |
| 529 |
|
SEAL, ENG OIL PRESS SEN (O RING) ( |
|
2009-2010 |
|
| 530 |
|
SENSOR, ENG OIL PRESS (INCLS 529) |
|
2009-2010 |
|
| 530 |
12621234 |
SENSOR, ENG OIL PRESS (INCLS 529) (ACDelco #213-4411) |
DN69 (LSA, MYD, MG9) |
2009-2009 |
01 |
| 531 |
|
RIVET, LWR INT MANIF GSKT ( |
|
2009-2010 |
|
| 531 |
12558759 |
RIVET, LWR INT MANIF GSKT ( |
D (LSA) |
2009-2010 |
04 |
| 532 |
11518075 |
|
|
2009-2010 |
11 |
| 533 |
19180613 |
GASKET KIT, INT MANIF (INCLS 531) |
D (LSA) |
2009-2009 |
01 |
| 534 |
12599296 |
COVER, ENG BLK VALLEY (W/PCV BFL) (INCLS 525-528, 532, 535) (INCLS |
DN69 (LSA) |
2009-2009 |
01 |
| 535 |
|
TUBE, PCV ( |
|
2009-2010 |
|
| 536 |
11519971 |
|
D (LSA) |
2009-2009 |
04 |
| 537 |
12576549 |
SEAL, THROT BODY (ACDelco #217-1618)
| D (LSA) |
2009-2009 |
01 |
|
| 538 |
12601387 |
BODY, THROT (ACDelco #217-3151) |
D (LSA) |
2009-2009 |
01 |
| 539 |
12599298 |
TUBE, PCV (FOUL AIR) |
D (LSA) |
2009-2009 |
01 |
| 540 |
12625145 |
SUPERCHARGER, ENG ( |
DN (LSA) |
2009-2010 |
01 |
| 541 |
12602701 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 542) (ACDelco #214-2144) |
DN69 (LSA) |
2009-2009 |
01 |
| 541 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 542) (ACDelco #214-1685)
| D |
2009-2010 |
01 |
|
| 542 |
|
SEAL, INT MANIF ( |
|
2009-2010 |
|
| 543 |
|
SEAL, INT MANIF ( |
|
2009-2010 |
|
| 544 |
12591290 |
SENSOR, SPCHG AIR INL PRESS (INCLS 543) (W/SEAL) (3.682) (ACDelco #213-3842) |
D (LSA) |
2009-2010 |
01 |
| 545 |
11588714 |
|
|
2009-2010 |
01 |
| 546 |
11588712 |
|
|
2009-2010 |
01 |
| 547 |
|
TUBE, EVAP EMIS CNSTR PURGE |
|
2009-2010 |
|
| 547 |
12605523 |
TUBE, EVAP EMIS CNSTR PURGE |
DN (LSA, JJB) |
2009-2010 |
01 |
| 548 |
11562426 |
|
|
2009-2010 |
17 |
| 549 |
|
SEAL, INT MANIF ( |
|
2009-2010 |
|
| 550 |
12591290 |
SENSOR, BARO PRESS (INCLS 549) ( |
D (LSA) |
2009-2010 |
01 |
| 551 |
11588714 |
|
|
2009-2010 |
01 |
| 552 |
11610199 |
|
|
2009-2010 |
02 |
| 553 |
11588967 |
STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (INT MANIF SIGHT SHLD) |
|
2009-2010 |
01 |
