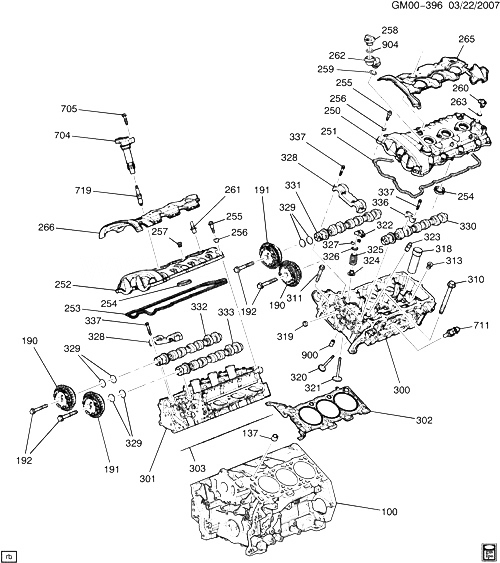

(GM00-396) - 2009 DM,DR69 ДВИГАТЕЛЬ В СБОРЕ-2.8L V6 ЧАСТЬ 2 ГОЛОВКА ЦИЛИНДРОВ ДЕТАЛИ КОМПЛЕКТА (LP1/2.8T) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG 2009-2009
137 12570326 PIN, CYL HD LOC D (LP1) 2008-2009 04
190 12606653 ACTUATOR, CM/SHF POSN (USE WASHER 12630941) D (LP1) 2008-2009 02
191 12603744 ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) D (LP1) 2008-2009 01
191 12603745 ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) D (LP1) 2008-2009 01
192 11588279 2008-2009 04
250 12626055 COVER, CM/SHF (INCLS 251, 254-257, 260, 263) D (LP1) 2008-2009 01
251 12595106 SEAL, CM/SHF CVR ( D (LP1) 2008-2009 01
252 12626054 COVER, CM/SHF (INCLS 253-257, 261, 263) D (LP1) 2008-2009 01
253 12595107 SEAL, CM/SHF CVR ( D (LP1) 2008-2009 01
254 SEAL, SPLG SHLD ( 2009-2009
255 11570020 D (LP1) 2008-2009 26
256 12595122 INSULATOR, CM/SHF CVR D (LP1) 2008-2009 26
257 INSERT, IGN 2009-2009
258 12593356 CAP, OIL FIL (INCLS 904) (ACDelco #FC221) D (LP1) 2008-2009 01
259 12593348 SEAL, OIL FIL TUBE (O RING) ( D (LP1) 2008-2009 01
260 12578316 FITTING, PCV ( D (LP1) 2008-2009 01
261 12583384 FITTING, PCV ( D (LP1) 2008-2009 01
262 12615294 TUBE, OIL FIL (INCLS 259) D (LP1) 2008-2009 01
263 SEAL, PCV HOSE FTG (O RING) ( 2009-2009
265 12601744 INSULATOR, CM/SHF HSG CVR (0.413) D (LP1) 2008-2009 01
266 12601745 INSULATOR, CM/SHF HSG CVR D (LP1) 2008-2009 01
300 12603909 HEAD, CYL (MCHG) (INCLS 313, 318, 319, 328, 336, 337) (DOES NOT INCL ENG OIL MANIF CHECK VALVES. DLR MUST INSTL) D (LP1) 2008-2009 01
301 12603906 HEAD, CYL (MCHG) (INCLS 313, 318, 319, 328, 336, 337) (DOES NOT INCL ENG OIL MANIF CHECK VALVES. DLR MUST INSTL) D (LP1) 2008-2009 01
302 GASKET, CYL HD (*KIT1) 2009-2009
303 GASKET, CYL HD (*KIT1) 2009-2009
310 11518863 2008-2009 32
311 11519177 2008-2009 02
313 11561751 PLUG, CYL HD WAT JKT HOLE ( D (LP1) 2008-2009 02
318 SLEEVE, SPLG WIRE ( 2009-2009
319 11562127 PLUG, CYL HD OIL GAL ( D (LP1) 2008-2009 04
320 12575354 VALVE, EXH (STD) D (LP1) 2008-2009 12
320 12584760 VALVE, EXH (0.075 O.S.) D (LP1) 2008-2009 12
321 12575352 VALVE, INT (STD) D (LP1) 2008-2009 12
321 12584761 VALVE, INT (0.075MM O.S.) (0.297) D (LP1) 2008-2009 12
322 24100294 ARM, VLV RKR D (LY7, LP1) 2008-2009 24
323 24100005 ADJUSTER, HYD VLV LASH (ACDelco #24100005) D (LP1) 2008-2009 24
324 12565836 SEAL, VLV STEM OIL D (LP1) 2008-2009 24
325 12575355 D (LP1) 2008-2009 24
326 12575196 RETAINER, VLV SPR D (LP1) 2008-2009 24
327 12575197 KEY, VLV STEM D (LP1) 2008-2009 48
328 CAP, CM/SHF BRG ( 2009-2009
329 12574477 RING, CM/SHF SPKT OIL SEAL ( D (LP1) 2008-2009 08
330 12625991 CAMSHAFT, EXH (INCLS 329) D (LP1) 2009-2009 01
331 12625986 CAMSHAFT, INT (INCLS 329) D (LP1) 2009-2009 01
332 12625988 CAMSHAFT, EXH (INCLS 329) D (LP1) 2009-2009 01
333 12625989 CAMSHAFT, INT (INCLS 329) D (LP1) 2009-2009 01
336 CAP, CM/SHF BRG ( 2009-2009
337 11518856 HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G ( 2008-2009 16
704 12618542 D (LP1) 2008-2009 06
705 2009-2009
711 12566778 SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-1581) DM (LP1, MYB, MX0, MV1) 2009-2009 01
711 12566778 SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-1581) DR (LP1, MYB, MX0) (EXPORT) 2009-2009 01
719 12597464 D (LP1) 2008-2009 06
900 12580965 VALVE, ENG OIL MANIF CHK D (LP1) 2008-2009 04
904 12593348 SEAL, OIL FIL CAP (O RING) ( D (LP1) 2008-2009 01
K01 12617801 GASKET KIT, CYL HD (INCLS 251, 253, 254, 302, 303) D (LP1) 2008-2009 01
