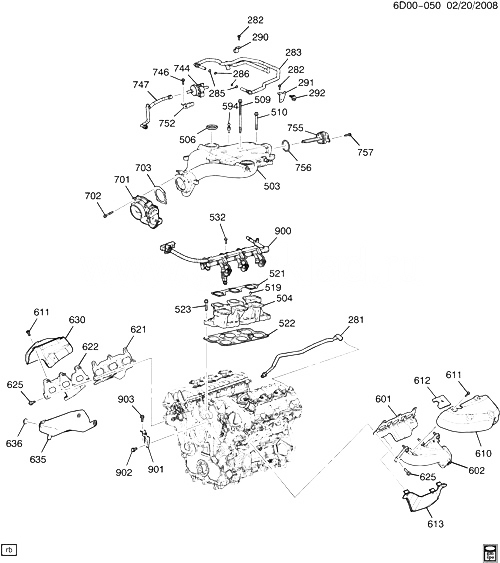

(6D00-050) - 2009 DM,DR69 ДВИГАТЕЛЬ В СБОРЕ-2.8L V6 ЧАСТЬ 5 КОЛЛЕКТОР ДЕТАЛИ КОМПЛЕКТА (LP1/2.8T) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
281 12620142 TUBE, PCV DM (LP1) 2009-2009 01
281 12620142 TUBE, PCV DR (LP1) (EXPORT) 2009-2009 01
282 11588712 2008-2009 02
283 12616910 HOSE, PCV (INCLS 285, 286, 290-292) (DIRTY AIR) D (LP1) 2008-2009 01
285 12616908 SEAL, PCV HOSE FTG (O RING) ( D (LP1) 2008-2009 01
286 12616909 SEAL, PCV HOSE FTG (O RING) ( D (LP1) 2008-2009 01
290 BRACKET, PCV VLV HOSE ( 2009-2009
291 BRACKET, PCV VLV HOSE ( 2009-2009
292 CLIP, PCV VLV HOSE ( 2009-2009
503 12597853 MANIFOLD, UPR INT (MACH) (INCLS 506) D (LP1) 2008-2009 01
504 12571079 MANIFOLD, LWR INT (INCLS 519) D (LP1) 2008-2009 01
506 PLUG, INT MANIF ( 2009-2009
509 11518906 2008-2009 04
510 11519176 D (LP1) 2008-2009 01
519 PIN, UPR INT MANIF LOC ( 2009-2009
521 GASKET, UPR INT MANIF (*KIT1, KIT2, KIT3) 2009-2009
522 GASKET, LWR INT MANIF (*KIT1, KIT3) 2009-2009
523 11519170 2008-2009 02
532 11588714 2008-2009 03
594 11588523 STUD, M6X1 (UPR INT MANIF SIGHT SHLD) 2008-2009 02
601 12576262 GASKET, EXH MANIF D (LP1) 2008-2009 01
602 12571102 MANIFOLD, EXH D (LP1) 2008-2009 01
610 12580706 SHIELD, EXH MANIF HT D (LP1) 2008-2009 01
611 11518860 2008-2009 07
612 12582663 INSULATOR, EXH MANIF UPR D (LP1, LY7) 2008-2009 01
613 12616647 SHIELD, STRTR HT D (LP1) 2008-2009 01
621 12608475 GASKET, EXH MANIF D (LP1) 2009-2009 01
622 12571101 MANIFOLD, EXH D (LP1) 2008-2009 01
625 11518860 2008-2009 14
630 12617267 SHIELD, EXH MANIF HT D (LP1) 2008-2009 01
635 12581807 INSULATOR, EXH MANIF LWR D (LP1, LY7) 2008-2009 01
636 14093869 2008-2009 03
701 12616994 BODY, THROT (W/THROT ACTR) (ACDelco #217-3103) D (LP1) 2008-2009 01
702 11519972 D (LP1) 2008-2009 04
703 12593360 GASKET, THROT BODY (ACDelco #40-5083) D (LP1) 2008-2009 01
744 12611801 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685) D 2008-2009 01
744 12611801 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685) DM (LP1, MYB, JJB, MX0) 2008-2009 01
746 11588712 2008-2009 01
747 12584171 HOSE, EVAP EMIS CNSTR SOL VLV D 2008-2009 01
747 12584171 HOSE, EVAP EMIS CNSTR SOL VLV DM (LP1, MYB, JJB, MX0) 2009-2009 01
747 12584171 HOSE, EVAP EMIS CNSTR SOL VLV DR (LP1, MYB, JJB, MX0) (EXPORT) 2009-2009 01
752 BRACKET, SOL VLV ( 2009-2009
755 12629734 VALVE, INT MANIF TUNING (INCLS 756) D (LP1) 2008-2009 01
756 SEAL, INT MANIF TUNING VLV ( 2009-2009
757 11588714 2008-2009 02
900 RAIL, F/INJN FUEL ( 2008-2009
901 12604673 BRACE, INT MANIF D (LP1) 2008-2009 01
902 11588723 2008-2009 01
903 11588712 2008-2009 01
K01 12617801 GASKET KIT, CYL HD (INCLS 521, 522) D (LP1) 2008-2009 01
K02 12595277 GASKET KIT, UPR INT MANIF (INCLS 521) D (LP1) 2008-2009 01
K03 12598158 GASKET KIT, INT MANIF (INCLS 521, 522) D (LP1) 2008-2009 01
