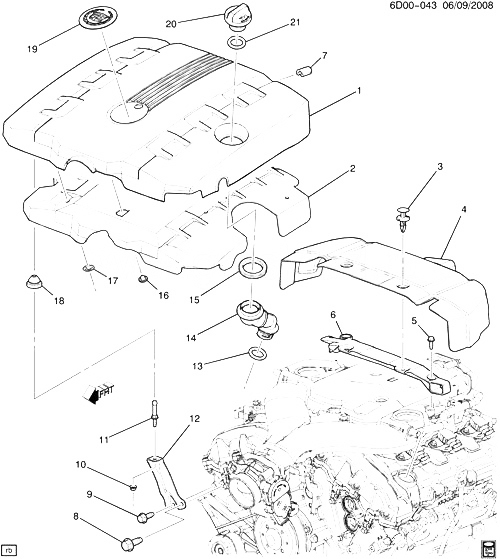

(6D00-043) - 2008-2009 DM69 INTAKE MANIFOLD SHIELD/COVERS (LP1/2.8T,LY7/3.6-7) CADILLAC - CTS SEDAN 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, INT MANIF (INCLS 7, 15-19) 2008-2009
001 12632150 COVER, INT MANIF (INCLS 7, 15-19) ( D (LLT, LP1, LY7) 2008-2009 01
001 12632150 COVER, INT MANIF (INCLS 7, 15-19) ( D (LLT, LP1, LY7) 2008-2009 01
002 INSULATOR, INT MANIF CVR 2008-2009
002 12624769 INSULATOR, INT MANIF CVR D (LLT, LP1, LY7) 2008-2009 01
003 20664092 RETAINER, UPR INT MANIF SIGHT SHLD (BLACK) (6.3MM DIA X 23MM) (1.276) D 2008-2009 02
004 12606137 INSULATOR, INT MANIF D (LP1) 2008-2009 01
004 12606137 INSULATOR, INT MANIF D (LY7) 2008-2009 01
005 11588717 D (LP1) 2008-2009 02
005 11588717 D (LY7) 2008-2009 02
006 12607233 BRACKET, UPR INT MANIF SIGHT SHLD D (LP1) 2008-2009 01
006 12607233 BRACKET, UPR INT MANIF SIGHT SHLD D (LY7) 2008-2009 01
007 INSULATOR, F/INJR SIGHT SHLD BRKT ( 2008-2009
007 24507878 INSULATOR, F/INJR SIGHT SHLD BRKT ( D (LP1, LY7) 2008-2009 01
008 11588723 2008-2009 01
009 11588712 2008-2009 01
010 11516075 2008-2009 01
011 11588967 STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 ( 2008-2009 01
012 12616618 BRACKET, INT MANIF SIGHT SHLD (INCLS 10, 11) D (LP1) 2008-2009 01
012 12616618 BRACKET, INT MANIF SIGHT SHLD (INCLS 10, 11) D (LY7) 2008-2009 01
013 12593348 SEAL, OIL FIL TUBE (O RING) ( D (LP1) 2008-2009 01
013 12593348 SEAL, OIL FIL TUBE (O RING) ( D (LY7) 2008-2009 01
014 12615294 TUBE, OIL FIL (INCLS 13, 20, 21) D (LP1) 2008-2009 01
014 12615294 TUBE, OIL FIL (INCLS 13, 20, 21) D (LY7) 2008-2009 01
015 12591714 GROMMET, UPR INT MANIF SIGHT SHLD ( D (LP1) 2008-2009 01
015 12591714 GROMMET, UPR INT MANIF SIGHT SHLD ( D (LY7) 2008-2009 01
016 INSULATOR, F/INJR SIGHT SHLD BRKT ( 2008-2009
016 INSULATOR, F/INJR SIGHT SHLD BRKT ( 2009-2009
017 10042521 D (LP1) 2008-2009 04
017 10042521 D (LY7) 2008-2009 04
018 12591715 GROMMET, UPR INT MANIF SIGHT SHLD ( D (LP1) 2008-2009 01
018 12591715 GROMMET, UPR INT MANIF SIGHT SHLD ( D (LY7) 2008-2009 01
019 EMBLEM, INT MANIF CVR ( 2008-2009
019 12607405 EMBLEM, INT MANIF CVR ( D (LLT, LP1, LY7) 2008-2009 01
020 12593356 CAP, OIL FIL ( D (LP1) 2008-2009 01
020 12593356 CAP, OIL FIL ( D (LY7) 2008-2009 01
021 12593348 SEAL, OIL FIL CAP (O RING) ( D (LP1) 2008-2009 01
021 12593348 SEAL, OIL FIL CAP (O RING) ( D (LY7) 2008-2009 01
