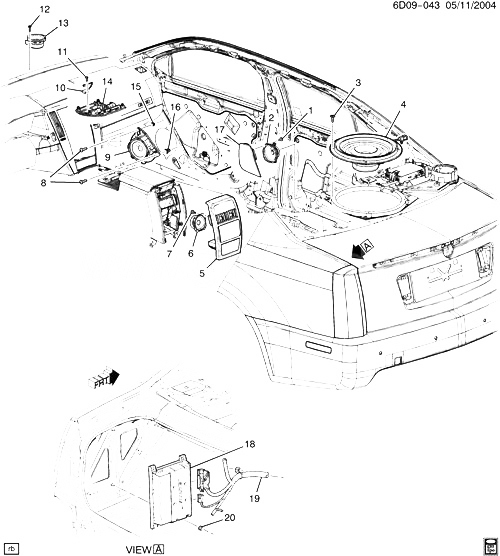

(6D09-043) - 2008-2010 D АУДИОСИСТЕМА/ДИНАМИКИ УСИЛИТЕЛЬ(UX8) CADILLAC - CTS SEDAN 2008
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 2008-2010 | ||||
| 003 | 11508765 | SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RDO RR SPKR) | 2008-2010 | 04 | |
| 005 | COVER, F/FLR CNSL RR ( | 2008-2010 | |||
| 007 | 2008-2010 | ||||
| 008 | 11589015 | 2008-2010 | 06 | ||
| 011 | RIVET, RDO VOL COMP INTR NOISE MIC ( | 2008-2010 | |||
| 012 | 11515196 | SCREW, RND WA HD, M4.2X1.41X16, HILO SELF- TAP, 8.2 O.D., 6010M, NO ( | 2008-2009 | 04 | |
| 014 | 2008-2010 | ||||
| 017 | TRIM, RR S/D ( | 2008-2010 | |||
| 019 | HARNESS, BODY WRG ( | 2008-2010 | |||
| 020 | 03530297 | 2008-2010 | 03 |
