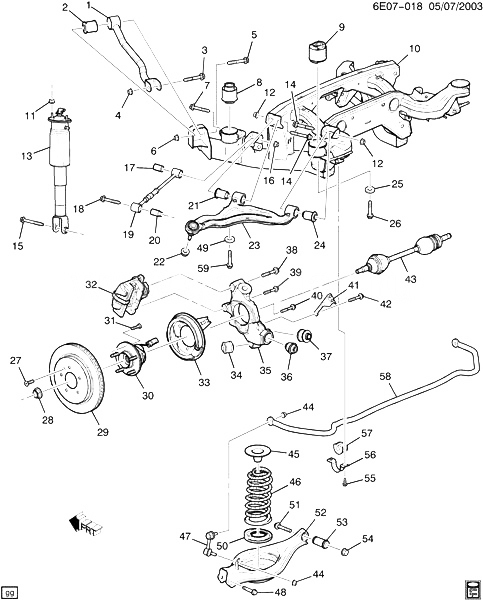

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25939260 |
ARM, RR SUSP TRAILING (INCLS 2)
| D69 |
2008-2009 |
02 |
|
| 002 |
|
BUSHING, RR SUSP TRAILING ARM ( |
|
2008-2008 |
|
| 003 |
11518725 |
|
|
2008-2010 |
02 |
| 004 |
11516382 |
|
D69 |
2008-2010 |
02 |
| 005 |
11519149 |
|
D69 |
2008-2010 |
02 |
| 006 |
11516382 |
|
D69 |
2008-2010 |
02 |
| 007 |
11519149 |
|
D69 |
2008-2010 |
02 |
| 008 |
25887836 |
MOUNT, RR SUSP SUPT ( |
D69 |
2008-2010 |
01 |
| 009 |
25887835 |
MOUNT, RR SUSP SUPT ( |
D69 |
2008-2010 |
01 |
| 010 |
15267614 |
SUPPORT, RR SUSP |
DM69 (JJK) |
2008-2008 |
01 |
| 010 |
15267614 |
SUPPORT, RR SUSP |
D (JJM) |
2008-2010 |
01 |
| 011 |
11516076 |
|
|
2008-2010 |
01 |
| 012 |
11516382 |
|
D69 |
2008-2010 |
02 |
| 013 |
15219475 |
|
DM69 (FE3) |
2008-2009 |
01 |
| 013 |
15219476 |
|
DM69 (FE3) |
2008-2009 |
01 |
| 013 |
25884697 |
|
DM69 (FE1) |
2008-2010 |
01 |
| 013 |
25884698 |
|
DM69 (FE1) |
2008-2010 |
01 |
| 013 |
25884699 |
|
DM69 (FE2) |
2008-2009 |
01 |
| 013 |
25884700 |
|
DM69 (FE2) |
2008-2009 |
01 |
| 014 |
11519150 |
|
DM69 |
2008-2010 |
04 |
| 015 |
11516873 |
|
|
2008-2010 |
02 |
| 016 |
11516382 |
|
D69 |
2008-2010 |
02 |
| 017 |
|
BUSHING, RR SUSP ADJ LINK ( |
|
2008-2008 |
|
| 018 |
11519078 |
|
D69 |
2008-2010 |
02 |
| 019 |
15267634 |
LINK, RR SUSP ADJ (INCLS 17, 20) |
D69 |
2008-2010 |
02 |
| 020 |
|
BUSHING, RR SUSP ADJ LINK ( |
|
2008-2008 |
|
| 021 |
|
BUSHING, RR SUSP UPR CONT ARM ( |
|
2008-2008 |
|
| 022 |
03537773 |
|
D69 |
2008-2010 |
02 |
| 023 |
15267619 |
ARM, RR SUSP UPR CONT (INCLS 21, 24)
| D69 |
2008-2010 |
01 |
|
| 023 |
15267620 |
ARM, RR SUSP UPR CONT (INCLS 21, 24)
| D69 |
2008-2010 |
01 |
|
| 024 |
|
BUSHING, RR SUSP UPR CONT ARM ( |
|
2008-2008 |
|
| 025 |
11609636 |
WASHER, FLAT M16X32X3, SAE1050, GMW3044 (RR SUSP) |
|
2008-2010 |
02 |
| 026 |
11570509 |
|
D69 |
2008-2009 |
02 |
| 027 |
11515720 |
SCREW, FLAT 6 LOBED, M6X1X20, 14.5 THD, 9.8, T-30 TORX, HDR PT (RR BRK ROT (PUSH ON)) (8.908)
|
2008-2010 |
04 |
|
| 028 |
10289657 |
|
D69 |
2008-2008 |
02 |
| 029 |
|
ROTOR, RR BRK |
|
2008-2010 |
|
| 029 |
15267107 |
ROTOR, RR BRK (17 |
DM69 (JE5, J55) |
2008-2008 |
02 |
| 029 |
15267108 |
ROTOR, RR BRK (18 |
DM69 (J55) |
2008-2009 |
02 |
| 030 |
13502216 |
HUB, RR WHL (W/ BRG) (INCLS 31) (W/O SENSOR) (ACDelco #FW372)
| DM69 (JE5, J55) |
2008-2009 |
02 |
|
| 031 |
11588811 |
STUD, RR WHL ( |
DM |
2008-2010 |
10 |
| 032 |
|
CALIPER, RR BRK ( |
|
2008-2008 |
|
| 033 |
|
BRAKE, RR ( |
|
2008-2008 |
|
| 034 |
|
BUSHING, RR SUSP TRAILING ARM ( |
|
2008-2008 |
|
| 035 |
15775071 |
KNUCKLE, RR SUSP (INCLS 34, 36, 37)
| D69 |
2008-2010 |
01 |
|
| 035 |
15775072 |
KNUCKLE, RR SUSP (INCLS 34, 36, 37)
| D69 |
2008-2010 |
01 |
|
| 036 |
|
BUSHING, RR SUSP LWR CONT ARM ( |
|
2008-2008 |
|
| 037 |
|
BUSHING, RR SUSP SUPT ( |
|
2008-2008 |
|
| 038 |
11518337 |
|
|
2008-2010 |
02 |
| 039 |
11519097 |
|
|
2008-2010 |
02 |
| 040 |
18022052 |
|
DM69 (JE5, J55) |
2008-2009 |
03 |
| 041 |
25693149 |
BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) |
D |
2008-2010 |
01 |
| 041 |
25693150 |
BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) |
D |
2008-2010 |
01 |
| 042 |
11518842 |
|
|
2008-2010 |
04 |
| 043 |
|
SHAFT KIT, RR WHL DRV ( |
|
2008-2010 |
|
| 044 |
11516078 |
|
|
2008-2010 |
04 |
| 045 |
20765234 |
INSULATOR, RR SPR UPR |
D69 |
2008-2010 |
02 |
| 046 |
15219458 |
|
DM (8ST, 9ST) |
2008-2010 |
02 |
| 046 |
15793347 |
|
DM (8SU, 9SU) |
2008-2010 |
02 |
| 046 |
25798541 |
|
DM (8WW, 9WW) |
2008-2010 |
02 |
| 046 |
25798541 |
|
DM (8WX, 9WX) |
2008-2010 |
02 |
| 046 |
25798541 |
|
DM (8WY, 9WY) |
2008-2010 |
02 |
| 046 |
25798541 |
|
DM (8WZ, 9WZ) |
2008-2010 |
02 |
| 047 |
15267655 |
LINK, RR STAB SHF
| D69 |
2008-2010 |
01 |
|
| 047 |
25964514 |
LINK, RR STAB SHF |
D69 |
2008-2010 |
01 |
| 048 |
11609819 |
|
D69 |
2008-2009 |
02 |
| 049 |
11609636 |
WASHER, FLAT M16X32X3, SAE1050, GMW3044 (RR SUSP) |
|
2008-2010 |
02 |
| 050 |
25805110 |
INSULATOR, RR SPR LWR |
D69 |
2008-2009 |
02 |
| 051 |
11519150 |
|
D69 |
2008-2009 |
02 |
| 052 |
20777471 |
ARM, RR SUSP LWR CONT (INCLS 53) |
D69 |
2008-2009 |
01 |
| 052 |
20777472 |
ARM, RR SUSP LWR CONT (INCLS 53) |
D69 |
2008-2009 |
01 |
| 053 |
|
BUSHING, RR SUSP LWR CONT ARM ( |
|
2008-2008 |
|
| 054 |
11516382 |
|
D69 |
2008-2009 |
02 |
| 055 |
11516328 |
|
|
2008-2010 |
04 |
| 056 |
25719675 |
BRACKET, RR STAB SHF
| D69 |
2008-2010 |
02 |
|
| 057 |
15267653 |
INSULATOR, RR STAB SHF (16MM) (65 DURO) |
D69 (FE1) |
2008-2009 |
02 |
| 057 |
15880709 |
INSULATOR, RR STAB SHF (17MM) (65 DURO)
| DM69 (FE1, FE2) |
2008-2010 |
02 |
|
| 057 |
15880711 |
INSULATOR, RR STAB SHF (18MM) (65 DURO)
| DM (MV7, FE2, FE3, MN6) |
2008-2009 |
02 |
|
| 057 |
15880711 |
INSULATOR, RR STAB SHF (18MM) (65 DURO)
| DM (MYB, FE2, FE3, MX0) |
2008-2009 |
02 |
|
| 057 |
25771205 |
INSULATOR, RR STAB SHF (23.4MM) (60 DURO) |
D |
2008-2010 |
02 |
| 058 |
15267654 |
SHAFT, RR STAB |
DM69 (MV1, MV7, FE1, MN6) |
2008-2009 |
01 |
| 058 |
15267654 |
SHAFT, RR STAB |
DM69 (MYB, FE1, MX0) |
2008-2009 |
01 |
| 058 |
15880706 |
SHAFT, RR STAB |
DM (MX7, MYB, FE1, FE2) |
2008-2009 |
01 |
| 058 |
15880708 |
SHAFT, RR STAB
| DM69 (MV1, MV7, FE2, FE3, MN6) |
2008-2009 |
01 |
|
| 058 |
15880708 |
SHAFT, RR STAB
| DM69 (MYB, FE2, FE3, MX0) |
2008-2009 |
01 |
|
| 059 |
11570356 |
|
D69 |
2008-2009 |
02 |
