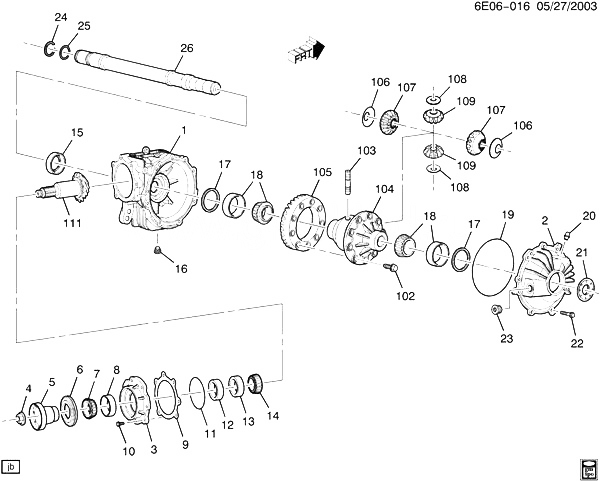

(6E06-016) - 2008-2009 DM69 DIFFERENTIAL КРОНШТЕЙН/FRONT AXLE (ПОЛНОПРИВОДНЫЙ MX7) CADILLAC - CTS SEDAN 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25978167 D69 2008-2008 01
002 COVER, FRT DIFF CARR ( 2008-2009
003 2008-2009
004 89047861 D69 2008-2008 01
005 19178812 FLANGE, FRT DIFF CARR ( D29-69 2008-2008 01
006 19132939 SEAL, FRT DIFF DRV P/GR ( D69 (MYB, MX7) 2008-2008 01
007 BEARING, FRT DIFF DRV P/GR INR ( 2008-2009
008 BEARING, FRT DIFF DRV P/GR INR ( 2008-2009
009 SHIM, FRT DIFF DRV P/GR BRG ( 2008-2009
010 89047930 D69 2008-2008 08
011 19132939 SEAL, FRT DIFF DRV P/GR ( D69 (MYB, MX7) 2008-2008 01
012 SPACER, FRT DIFF DRV P/GR BRG ( 2008-2009
013 BEARING, FRT DIFF DRV P/GR INR ( 2008-2009
014 BEARING, FRT DIFF DRV P/GR INR ( 2008-2009
015 89047832 SEAL, FRT WHL DRV INTER SHF HSG ( D69 2008-2008 01
016 89059039 PLUG, FRT DIFF CARR OIL DRN ( D69 2008-2008 01
017 SHIM, FRT DIFF SI GR ( 2008-2009
018 BEARING, FRT DIFF DRV P/GR OTR ( 2008-2009
019 89047859 GASKET, FRT DIFF CARR CVR ( D 2008-2008 01
020 15852707 VENT, F/AXL ( D 2008-2008 01
021 88996591 SEAL, F/AXL SHF ( D 2008-2008 02
022 89047930 D69 2008-2008 08
023 89059038 PLUG, FRT DIFF CARR OIL FIL ( D69 2008-2008 01
024 89047934 SEAL, FRT WHL DRV INTER SHF ( D69 2008-2008 01
025 89047933 RETAINER, FRT WHL DRV INTER SHF ( D69 2008-2008 01
026 89047931 SHAFT, FRT WHL DRV INTER ( D 2008-2008 01
102 89047929 D 2008-2008 10
103 SHAFT, FRT DIFF P/GR ( 2008-2009
104 CASE, FRT DIFF ( 2008-2009
105 GEAR, FRT DIFF RING ( 2008-2009
106 WASHER, FRT DIFF SI GR THR ( 2008-2009
107 GEAR, FRT DIFF SI ( 2008-2009
108 WASHER, FRT DIFF P/GR THR ( 2008-2009
109 GEAR, FRT DIFF PINION ( 2008-2009
111 GEAR, FRT DIFF DRV PINION ( 2008-2009
