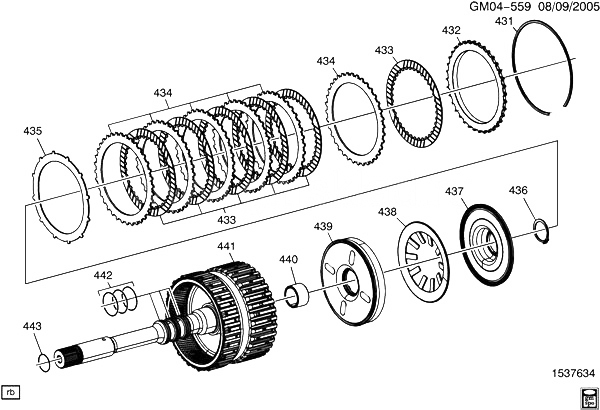

(GM04-559) - 2008-2010 D АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) 4-5-6 ДЕТАЛИ СЦЕПЛЕНИЯ ВАЛ ТУРБИНЫ CADILLAC - CTS SEDAN 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
431 24225508 RING, 4-5-6 CLU BKG PLT RET (GREEN) (2.52-2.62) (ACDelco #24225508) DM (MYB) 2008-2010 01
431 24225509 RING, 4-5-6 CLU BKG PLT RET (YELLOW) (3.08-3.18) (ACDelco #24225509) DM (MYB) 2008-2010 01
431 24231591 RING, 4-5-6 CLU BKG PLT RET (GREY) (2.80-2.90) (ACDelco #24231591) DM (MYB) 2008-2010 01
431 24231592 RING, 4-5-6 CLU BKG PLT RET (ORANGE) (3.36-3.46) (ACDelco #24231592) DM (MYB) 2008-2010 01
431 24231593 RING, 4-5-6 CLU BKG PLT RET (BLUE) (3.64-3.74) (ACDelco #24231593) DM (MYB) 2008-2010 01
431 24232880 RING, 4-5-6 CLU BKG PLT RET (YELLOW/PURPLE) (4.20-4.30) (ACDelco #24232880) DM (MYB) 2008-2010 01
432 24225652 PLATE, 4-5-6 CLU BKG DM (MYB) 2008-2010 01
433 24225570 PLATE, 4-5-6 CLU (INT SPLINE) (PKG OF 5) (FIBER) (*KIT3) DM (MYB) 2008-2010 01
434 24225575 PLATE, 4-5-6 CLU (EXT SPLINE) (PKG OF 5) (STEEL)FIBER) (ACDelco #24225575) D (MYB) 2008-2010 01
435 24225565 PLATE, 4-5-6 CLU (WAVED) DM (MYB) 2008-2010 01
436 RING, 4-5-6 CLU PSTN DAM RET (*KIT1, KIT2) 2008-2010
437 24225526 DAM, 4-5-6 CLU PSTN DM (MYB) 2008-2010 01
438 24225560 DM (MYB) 2008-2010 01
439 24225523 PISTON, 4-5-6 CLU DM (MYB) 2008-2010 01
440 BUSHING, 2008-2010
441 24237963 DM (MYB) 2008-2010 01
442 24225511 RING, TURB SHF FLUID SEAL DM (MYB) 2008-2010 03
443 08662686 SEAL, TURB SHF (O RING) (*KIT2) (ACDelco #8662686) DM (MYB) 2008-2010 01
K01 24238920 RING KIT, RET (INCLS 436) DM (MYB) 2008-2010 01
K02 24243891 SEAL KIT, A/TRNS SERV (INCLS 436, 443) (FULL TRANS) (ACDelco #24243891) D (MYB) 2008-2008 01
K03 24238911 PLATE KIT, CLU (INCLS 433) (ORDER T/W 24225575 24235455) (ACDelco #24238911) D (MYB) 2008-2009 01
