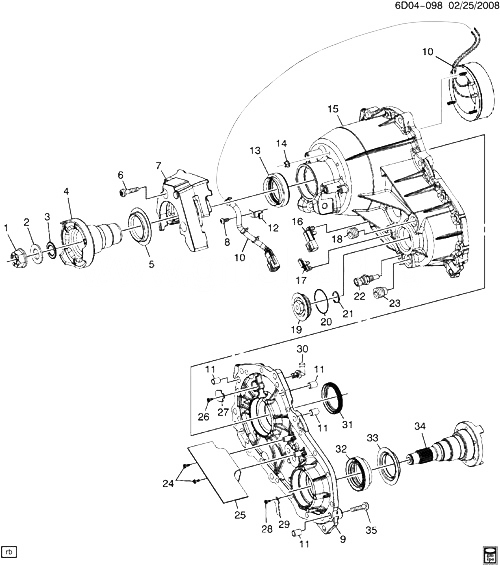

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89059523 |
|
DM69 (MX7) |
2008-2009 |
01 |
| 002 |
15580315 |
WASHER, TRFER CASE RR |
D69 |
2008-2009 |
01 |
| 003 |
15635532 |
SEAL, TRFER CASE RR |
DM69 (MX7) |
2008-2009 |
01 |
| 004 |
19179018 |
FLANGE, TRFER CASE RR |
DM69 (MX7) |
2008-2009 |
01 |
| 005 |
88996681 |
DEFLECTOR, TRFER CASE RR |
D (MX7) |
2008-2009 |
01 |
| 006 |
19180065 |
|
DM69 (MYB, MX7) |
2008-2009 |
03 |
| 007 |
19179016 |
DAMPENER, TRFER CASE VIB (AT RR OF CASE) |
DM69 (MX7) |
2008-2009 |
01 |
| 008 |
|
|
|
2008-2010 |
|
| 009 |
19208066 |
CASE, TRFER (FRT HALF) |
DM |
2008-2010 |
01 |
| 010 |
19208080 |
|
DM69 (MX7) |
2008-2009 |
01 |
| 011 |
88984499 |
PIN, TRFER CASE HALF LOC |
DM69 (MX7) |
2008-2010 |
02 |
| 012 |
|
BRACKET, WRG HARN |
|
2008-2010 |
|
| 013 |
88996657 |
SEAL, TRFER CASE RR |
D69 |
2008-2009 |
01 |
| 014 |
19208081 |
|
DM69 (MX7) |
2008-2009 |
01 |
| 015 |
19208077 |
CASE, TRFER (RR HALF) |
DM69 (MX7) |
2008-2009 |
01 |
| 016 |
19206436 |
RESISTOR, (115 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 016 |
19206437 |
RESISTOR, (225 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 016 |
19206438 |
RESISTOR, (453 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 016 |
19206439 |
RESISTOR, (715 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 016 |
19206440 |
RESISTOR, (1150 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 016 |
19206441 |
RESISTOR, (1820 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 016 |
19206442 |
RESISTOR, (3160 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 016 |
19206443 |
RESISTOR, (7320 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 016 |
19206444 |
RESISTOR, (12700 OHMS) |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 018 |
25522466 |
PLUG, 1/2-14 X 39/64 (TRFER CASE OIL FILL) (ACDelco #25522466)
|
2008-2010 |
01 |
|
| 019 |
19179015 |
PLUG, TRFER CASE FRT |
DM69 (MX7) |
2008-2009 |
01 |
| 020 |
|
SEAL, TRFER CASE ACC HOLE PLUG (O RING) ( |
|
2008-2009 |
|
| 021 |
19208087 |
RING, TRFER CASE FRT |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 022 |
19179158 |
SENSOR, TRFER CASE FLUID TEMP
| DM69 (JJA, JJB, MYB, MX7) |
2008-2008 |
01 |
|
| 022 |
19179158 |
SENSOR, TRFER CASE FLUID TEMP
| DM69 (JJA, JNG, MX7) |
2008-2008 |
01 |
|
| 023 |
19179014 |
PLUG, TRFER CASE OIL DRN |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 024 |
88996680 |
|
D69 (MX7) |
2008-2009 |
01 |
| 025 |
88996679 |
SNUBBER, TRFER CASE FRT |
D |
2008-2010 |
01 |
| 026 |
88996680 |
|
D69 |
2008-2009 |
01 |
| 027 |
88996658 |
BAFFLE, TRFER CASE VENT |
DM (MYA, MYB, JJB, MX7) |
2008-2010 |
01 |
| 028 |
|
|
|
2008-2010 |
|
| 029 |
|
C |
|
2008-2010 |
|
| 030 |
19180066 |
VENT, TRFER CASE |
DM69 (MX7) |
2008-2009 |
01 |
| 031 |
88996657 |
SEAL, TRFER CASE FRT |
D69 |
2008-2009 |
01 |
| 032 |
88996656 |
SEAL, TRFER CASE INPUT SHF
| D |
2008-2010 |
01 |
|
| 033 |
88996681 |
DEFLECTOR, TRFER CASE FRT |
D (MX7) |
2008-2009 |
01 |
| 034 |
19208069 |
SHAFT, TRFER CASE FRT |
DM69 (MYB, MX7) |
2008-2009 |
01 |
| 035 |
89048123 |
|
D69 (MX7) |
2008-2010 |
17 |
