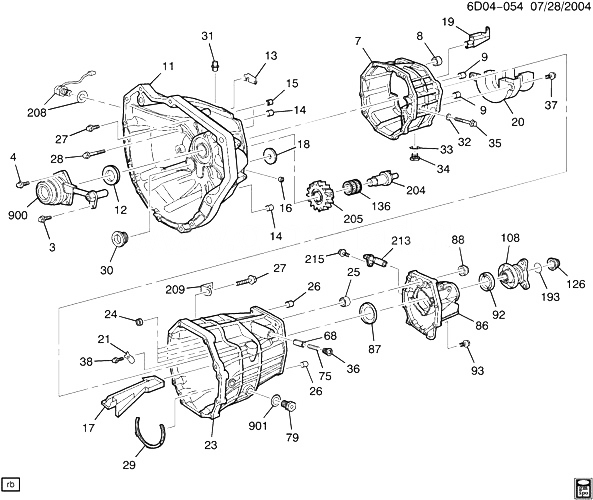

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 003 |
89058852 |
|
DM (MV7) |
2008-2009 |
01 |
| 004 |
89048559 |
|
DM (MV7) |
2008-2009 |
03 |
| 007 |
89058759 |
CASE, TRANS INTER (INCLS 8, 9) |
DM (MV7) |
2008-2010 |
01 |
| 008 |
89058774 |
BEARING, SHFT CONT SHF ( |
DM (MV7) |
2008-2009 |
01 |
| 009 |
89058791 |
PIN, TRANS INTER CASE LOC ( |
DM (MV7) |
2008-2009 |
02 |
| 011 |
19178542 |
CASE, TRANS FRT (INCLS 12-16) |
DM (MV7) |
2008-2010 |
01 |
| 012 |
89058833 |
SEAL, MAIN SHF ( |
DM (MV7) |
2008-2009 |
01 |
| 013 |
|
SHIELD, INPUT SHF BRG OIL ( |
|
2008-2010 |
|
| 014 |
89058791 |
PIN, TRANS INTER CASE LOC ( |
DM (MV7) |
2008-2009 |
02 |
| 015 |
89059311 |
PIN, TRANS CASE LOC ( |
DM (MV7) |
2008-2009 |
02 |
| 016 |
89059312 |
PLUG, TRANS CASE HOLE ( |
DM (MV7) |
2008-2010 |
01 |
| 017 |
|
TROUGH, TRANS RR CASE OIL |
|
2008-2010 |
|
| 018 |
89058837 |
SLINGER, INPUT SHF BRG OIL |
DM (MV7) |
2008-2009 |
01 |
| 019 |
89058839 |
TROUGH, M/TRNS OIL |
DM (MV7) |
2008-2009 |
01 |
| 020 |
89058840 |
TROUGH, TRANS INTER CASE OIL |
DM (MV7) |
2008-2009 |
01 |
| 021 |
|
RETAINER, CNTR GR BRG |
|
2008-2010 |
|
| 021 |
89058820 |
RETAINER, CNTR GR BRG (4.352) |
DM (MV7) |
2008-2009 |
01 |
| 023 |
89058760 |
CASE, TRANS RR (INCLS 24-26) |
DM (MV7) |
2008-2010 |
01 |
| 024 |
|
BUSHING, SHFT SHF ( |
|
2008-2010 |
|
| 025 |
89058774 |
BEARING, SHFT SHF ( |
DM (MV7) |
2008-2009 |
01 |
| 026 |
89058791 |
PIN, TRANS INTER CASE LOC ( |
DM (MV7) |
2008-2009 |
02 |
| 027 |
89058853 |
|
DM (MV7) |
2008-2010 |
06 |
| 028 |
89058854 |
|
DM (MV7) |
2008-2010 |
05 |
| 029 |
89059319 |
GASKET, TRANS RR CASE |
DM (MV7) |
2008-2009 |
01 |
| 030 |
89058843 |
PLUG, CLU HSG HOLE |
DM (MV7) |
2008-2010 |
01 |
| 031 |
89059313 |
VENT, M/TRNS |
DM (MV7) |
2008-2009 |
01 |
| 032 |
89059314 |
SEAL, REV IDLER GR SHF (O RING) (ACDelco #89059314) |
DM (MV7) |
2008-2009 |
01 |
| 033 |
89048245 |
GASKET, TRANS OIL DRN PLUG (ACDelco #89048245) |
DM (MV7) |
2008-2009 |
01 |
| 034 |
19132842 |
PLUG, TRANS OIL DRN (4.510) |
DM (MV7) |
2008-2009 |
01 |
| 035 |
89059315 |
|
DM (MV7) |
2008-2009 |
01 |
| 036 |
19132971 |
PLUG, SHFT SHF DTNT |
DM (MV7) |
2008-2010 |
01 |
| 037 |
89048559 |
|
DM (MV7) |
2008-2009 |
02 |
| 038 |
89058855 |
|
DM (MV7) |
2008-2009 |
01 |
| 068 |
89058860 |
DETENT, SHFT SHF |
DM (MV7) |
2008-2009 |
01 |
| 068 |
89059329 |
DETENT, SHFT SHF (CAM) |
DM (MV7) |
2008-2009 |
01 |
| 075 |
19178544 |
|
DM (MV7) |
2008-2008 |
01 |
| 079 |
89048248 |
PLUG, TRANS OIL FIL |
DM (MV7) |
2008-2009 |
01 |
| 079 |
89048248 |
PLUG, TRANS OIL FIL (4.104) |
DM (MV7) |
2008-2009 |
01 |
| 086 |
19178541 |
EXTENSION, TRANS (INCLS 87, 88) |
DM (MV7) |
2008-2009 |
01 |
| 087 |
89058838 |
SLINGER, INPUT SHF BRG OIL ( |
DM (MV7) |
2008-2009 |
01 |
| 088 |
19180996 |
SEAL, SHFT CONT SHF ( |
DM (MV7) |
2008-2009 |
01 |
| 092 |
89058835 |
SEAL, RR |
DM (MV7) |
2008-2009 |
01 |
| 093 |
88972750 |
|
DM (LLT, LP1, LY7, MV7) |
2008-2009 |
08 |
| 108 |
19178540 |
FLANGE, TRANS PROP SHF |
DM (LLT, LP1, LY7, MV7) |
2008-2009 |
01 |
| 126 |
19132973 |
|
DM (LLT, LP1, LY7, MV7) |
2008-2009 |
01 |
| 136 |
89058775 |
BEARING, REV IDLER GR |
DM (MV7) |
2008-2009 |
01 |
| 193 |
89058836 |
SEAL, PROP SHF TRANS FLG FLUID |
DM (LLT, LP1, LY7, MV7) |
2008-2009 |
01 |
| 204 |
89058790 |
SHAFT, REV IDLER GR |
DM (MV7) |
2008-2009 |
01 |
| 205 |
89058789 |
GEAR, REV IDLER |
DM (MV7) |
2008-2009 |
01 |
| 208 |
89059321 |
SWITCH, B/U LP (ACDelco #D2271C) |
DM (LLT, LP1, LY7, MV7) |
2008-2009 |
01 |
| 209 |
89059318 |
RETAINER, B/U LP SW |
DM (LLT, LP1, LY7, MV7) |
2008-2009 |
01 |
| 213 |
89058851 |
SENSOR, M/TRNS |
D (MV7) |
2008-2009 |
01 |
| 213 |
89058851 |
SENSOR, M/TRNS |
D (MV7) |
2008-2009 |
01 |
| 215 |
89058852 |
|
D69 (MV7) |
2008-2009 |
01 |
| 215 |
89058852 |
|
D69 (MV7) |
2008-2009 |
01 |
| 900 |
24242161 |
CYLINDER, CLU ACTR
| DM (MV7) |
2008-2009 |
01 |
|
| 901 |
89048245 |
GASKET, TRANS OIL FILL PLUG (ACDelco #89048245) |
DM (MV7) |
2008-2009 |
01 |
