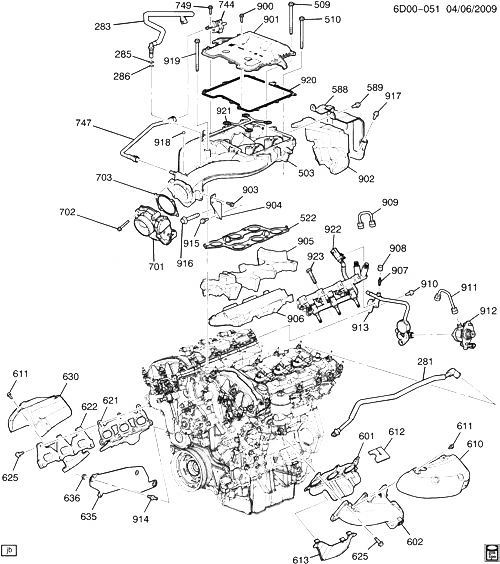

(6D00-051) - 2008 DM69 ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 ЧАСТЬ 5 КОЛЛЕКТОР ДЕТАЛИ КОМПЛЕКТА (LLT/3.6V) CADILLAC - CTS SEDAN 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
281 12604933 TUBE, PCV (FRESH AIR) D69 (LLT) 2008-2008 01
281 12616915 TUBE, PCV (FOUL AIR) D (LLT) 2008-2008 01
283 12604933 TUBE, PCV (INCLS 285, 286) (FRESH AIR) D69 (LLT) 2008-2008 01
283 12616915 TUBE, PCV (INCLS 285, 286) (FOUL AIR) D (LLT) 2008-2008 01
285 12616908 SEAL, PCV HOSE FTG (O RING) ( D (LLT) 2008-2008 01
286 12616909 SEAL, PCV HOSE FTG (O RING) ( D (LLT) 2008-2008 01
503 12595765 MANIFOLD, INT (INCLS 918) D (LLT) 2008-2008 01
509 11610106 2008-2008 04
510 11588735 2008-2008 01
522 12590958 GASKET, LWR INT MANIF (*KIT1, KIT2) D (LLT) 2008-2008 01
588 12610850 SHIELD, FUEL PIPE D69 (LLT, MV1, JJB) 2008-2008 01
588 12610850 SHIELD, FUEL PIPE DM69 (LLT, JJB) 2008-2008 01
589 11588723 2008-2008 02
601 12576262 GASKET, EXH MANIF D (LLT) 2008-2008 01
602 12571102 MANIFOLD, EXH D (LLT) 2008-2008 01
610 12580706 SHIELD, EXH MANIF HT D (LLT) 2008-2008 01
611 11518860 2008-2008 07
612 12582663 INSULATOR, EXH MANIF UPR D (LLT) 2008-2008 01
613 12616647 SHIELD, STRTR HT D (LLT) 2008-2008 01
621 12576263 GASKET, EXH MANIF D (LLT) 2008-2008 01
622 12571101 MANIFOLD, EXH D (LLT) 2008-2008 01
625 11518860 2008-2008 14
630 12617267 SHIELD, EXH MANIF HT D (LLT) 2008-2008 01
635 12581807 INSULATOR, EXH MANIF LWR D (LLT) 2008-2008 01
636 14093869 2008-2008 03
701 12616994 BODY, THROT (W/THROT ACTR) (ACDelco #217-3103) D (LLT) 2008-2008 01
702 11519972 D (LLT) 2008-2008 04
703 12606638 GASKET, THROT BODY (ACDelco #40-5093) D (LLT) 2008-2008 01
744 12611801 VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-1685) D 2008-2008 01
744 12611801 VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-1685) DM, DW, DY (LLT, LP1, LY7) 2008-2008 01
747 12584171 HOSE, EVAP EMIS CNSTR SOL VLV D 2008-2008 01
749 11588712 2008-2008 01
900 11562426 2008-2008 08
901 12595766 COVER, INT MANIF (PLENUM TOP COVER) D (LLT) 2008-2008 01
902 12630022 SHIELD, ENG RR NOISE D 2008-2008 01
903 11562426 2008-2008 02
904 12595767 BRACE, INT MANIF D (LLT) 2008-2008 01
905 12617977 SHIELD, F/INJN FUEL RL NOISE D (LLT) 2008-2008 01
906 12611315 SHIELD, F/INJN FUEL RL NOISE (LWR) D (LLT) 2008-2008 01
907 12574525 VALVE, FUEL PRESS SERV ( D 2008-2008 01
908 25532662 CAP, FUEL PRESS SERV VLV ( DM (LLT, MV7, JJA, JJB, MN6) 2008-2008 01
908 25532662 CAP, FUEL PRESS SERV VLV ( DM (LLT, MYB, JJA, JJB, MX0) 2008-2008 01
908 25532662 CAP, FUEL PRESS SERV VLV ( DM (LLT, MYB, JJB, MX7) 2008-2008 01
909 12591003 TUBE, F/INJN FUEL RL C/OVR D (LLT) 2008-2008 01
910 11589040 DM (LLT, LF1, MYB, JJB, MX7, MX0, MV7, MN6, MYA) 2008-2008 02
911 12591197 PIPE, FUEL FEED INTER DM69 (LLT) 2008-2008 01
912 12626234 PUMP, FUEL ( D (LLT) 2008-2008 01
913 12614933 PIPE, FUEL FEED (LOW PRESSURE W/DAMPER CAN SERVICE PORT. INLET TO HIGH PRESSURE FUEL PUMP) (INCLS 907, 908) DM (LLT, JJA, JJB) 2008-2008 01
914 11518950 STUD, HFH, M6X1X16, M6X1X14, 34.7 TL, 13 O.D., 10.9, GMW3359 (EXH MANIF H/SHLD) 2008-2008 01
915 11519977 2008-2008 01
916 11589278 2008-2008 01
917 11588723 2008-2008 01
918 00104918 BALL, 1/4 DIA, CHROME STL ( 2008-2008 01
919 11588735 2008-2008 01
920 GASKET, INT MANIF CVR (*KIT2) 2008-2008
921 GASKET, INT MANIF CVR (*KIT2) 2008-2008
922 RAIL, DIR F/INJN FUEL ( 2008-2008
923 11519171 D (LLT) 2008-2008 04
K01 12625782 GASKET KIT, CYL HD (INCLS 522) D (LLT) 2008-2008 01
K02 12615968 GASKET KIT, INT MANIF (INCLS 522, 920, 921) D (LLT) 2008-2008 01
