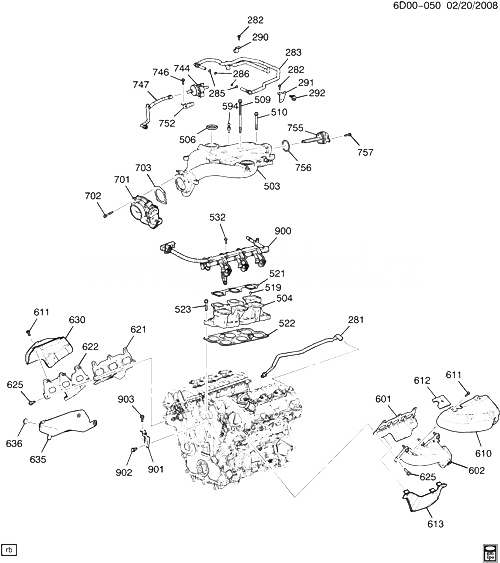

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 281 |
12604933 |
TUBE, PCV (FRESH AIR) |
D69 (LY7) |
2008-2008 |
01 |
| 282 |
11588712 |
|
|
2008-2009 |
02 |
| 283 |
12616910 |
HOSE, PCV (INCLS 285, 286, 290-292) (DIRTY AIR) |
D (LY7) |
2008-2009 |
01 |
| 285 |
12616908 |
SEAL, PCV HOSE FTG (O RING) ( |
D (LY7) |
2008-2009 |
01 |
| 286 |
12616909 |
SEAL, PCV HOSE FTG (O RING) ( |
D (LY7) |
2008-2009 |
01 |
| 290 |
|
BRACKET, PCV VLV HOSE ( |
|
2008-2009 |
|
| 291 |
|
BRACKET, PCV VLV HOSE ( |
|
2008-2009 |
|
| 292 |
|
CLIP, PCV VLV HOSE ( |
|
2008-2009 |
|
| 503 |
12597853 |
MANIFOLD, UPR INT (MACH) (INCLS 506) |
D (LY7) |
2008-2009 |
01 |
| 504 |
12571079 |
MANIFOLD, LWR INT (INCLS 519) |
D (LY7) |
2008-2009 |
01 |
| 506 |
|
PLUG, INT MANIF ( |
|
2008-2009 |
|
| 509 |
11518906 |
|
|
2008-2009 |
04 |
| 510 |
11519176 |
|
D (LY7) |
2008-2009 |
01 |
| 519 |
|
PIN, UPR INT MANIF LOC ( |
|
2008-2009 |
|
| 521 |
|
GASKET, UPR INT MANIF (*KIT1, KIT2, KIT3) |
|
2008-2009 |
|
| 522 |
|
GASKET, LWR INT MANIF (*KIT1, KIT3) |
|
2008-2009 |
|
| 523 |
11519170 |
|
|
2008-2009 |
02 |
| 532 |
11588714 |
|
|
2008-2009 |
03 |
| 594 |
11588523 |
STUD, M6X1 (UPR INT MANIF SIGHT SHLD) |
|
2008-2009 |
02 |
| 601 |
12576262 |
GASKET, EXH MANIF
| D (LY7) |
2008-2009 |
01 |
|
| 602 |
12571102 |
MANIFOLD, EXH
| D (LY7) |
2008-2009 |
01 |
|
| 610 |
12580706 |
SHIELD, EXH MANIF HT |
D (LY7) |
2008-2009 |
01 |
| 611 |
11518860 |
|
|
2008-2009 |
07 |
| 612 |
12582663 |
INSULATOR, EXH MANIF UPR |
D (LP1, LY7) |
2008-2009 |
01 |
| 613 |
12616647 |
SHIELD, STRTR HT |
D (LY7) |
2008-2009 |
01 |
| 621 |
12576263 |
GASKET, EXH MANIF |
D (LY7) |
2008-2008 |
01 |
| 622 |
12571101 |
MANIFOLD, EXH
| D (LY7) |
2008-2009 |
01 |
|
| 625 |
11518860 |
|
|
2008-2009 |
14 |
| 630 |
12617267 |
SHIELD, EXH MANIF HT |
D (LY7) |
2008-2008 |
01 |
| 635 |
12581807 |
INSULATOR, EXH MANIF LWR |
D (LP1, LY7) |
2008-2009 |
01 |
| 636 |
14093869 |
|
|
2008-2009 |
03 |
| 701 |
12616994 |
BODY, THROT (W/THROT ACTR) (ACDelco #217-3103)
| D (LY7) |
2008-2009 |
01 |
|
| 702 |
11519972 |
|
D (LY7) |
2008-2009 |
04 |
| 703 |
12593360 |
GASKET, THROT BODY (ACDelco #40-5083)
| D (LY7) |
2008-2009 |
01 |
|
| 744 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685)
| D (LP1, LY7, MV1, MX5, M82) |
2008-2008 |
01 |
|
| 744 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685)
| DM, DW (LY7) |
2008-2008 |
01 |
|
| 744 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685)
| DM, DW, DY (LLT, LP1, LY7) |
2008-2008 |
01 |
|
| 744 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685)
| D |
2008-2009 |
01 |
|
| 746 |
11588712 |
|
|
2008-2009 |
01 |
| 747 |
12584171 |
HOSE, EVAP EMIS CNSTR SOL VLV |
D |
2008-2009 |
01 |
| 752 |
|
BRACKET, SOL VLV ( |
|
2008-2009 |
|
| 755 |
12629734 |
VALVE, INT MANIF TUNING (INCLS 756) |
D (LY7) |
2008-2009 |
01 |
| 756 |
|
SEAL, INT MANIF TUNING VLV ( |
|
2008-2009 |
|
| 757 |
11588714 |
|
|
2008-2009 |
02 |
| 900 |
|
RAIL, F/INJN FUEL ( |
|
2008-2009 |
|
| 901 |
12604673 |
BRACE, INT MANIF |
D (LY7) |
2008-2009 |
01 |
| 902 |
11588723 |
|
|
2008-2009 |
01 |
| 903 |
11588712 |
|
|
2008-2009 |
01 |
| K01 |
12625781 |
GASKET KIT, CYL HD (INCLS 521, 522) (INCLS UPR LWR INT MANIF GASKETS)
| D (LY7) |
2008-2009 |
01 |
|
| K02 |
12595277 |
GASKET KIT, UPR INT MANIF (INCLS 521)
| D (LY7) |
2008-2009 |
01 |
|
| K03 |
12598158 |
GASKET KIT, INT MANIF (INCLS 521, 522)
| D (LY7) |
2008-2009 |
01 |
|
