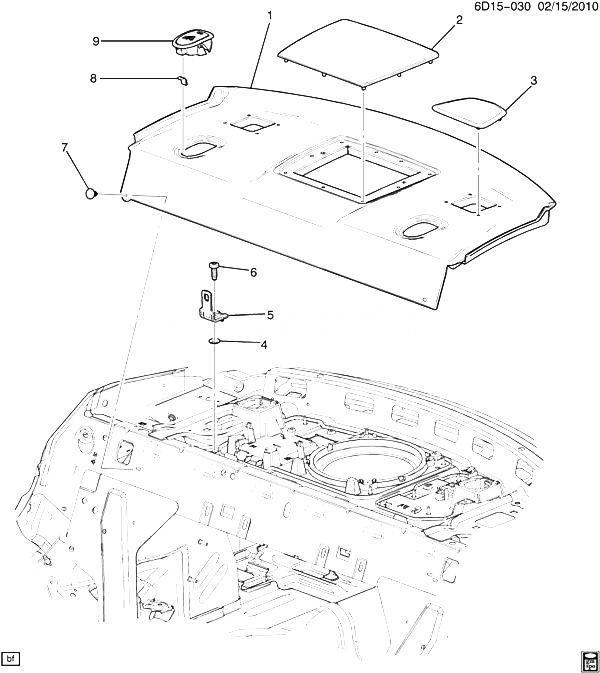

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22931675 |
TRIM, R/WDO PNL (INCLS 2, 3, 9) (EBONY) |
DM47 (UQS, 4AL, 4AM, 4AR, 4EV) |
2013-2013 |
01 |
| 001 |
22931675 |
TRIM, R/WDO PNL (INCLS 2, 3, 9) (EBONY) |
DN47 (UQS, 4AL, 4AM, 4BZ, 4EV) |
2013-2013 |
01 |
| 001 |
25979044 |
TRIM, R/WDO PNL (INCLS 2, 3, 9) (EBONY) (EUROPEAN) |
DM (AX4, UQS, 4AL, 4AM) (EXPORT) |
2011-2013 |
01 |
| 001 |
25979044 |
TRIM, R/WDO PNL (INCLS 2, 3, 9) (EBONY) (EUROPEAN) |
DN (AX4, UQS, 4AL, 4AM, 4AR) (EXPORT) |
2011-2013 |
01 |
| 002 |
|
GRILLE, RDO RR SPKR (PART OF 1) |
|
2011-2013 |
|
| 003 |
|
GRILLE, RDO RR SPKR (PART OF 1) |
|
2011-2013 |
|
| 004 |
|
NUT, CHILD ST TOP STRP BRKT (PART OF 5) |
|
2011-2013 |
|
| 005 |
25958749 |
BRACKET, CHILD ST TOP STRP (INCLS 4, 6) |
DM, DN47 |
2011-2013 |
02 |
| 006 |
11609992 |
BOLT, CHILD ST TOP STRP BRKT (PART OD 5) (M10X1.5X30, 30 THD) (8.977) |
DM, DN47 |
2011-2013 |
02 |
| 007 |
01605396 |
RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (R/WDO PNL TR) |
|
2011-2013 |
02 |
| 008 |
25706781 |
RETAINER, CHILD ST TO STRP BRKT ACC HOLE CVR |
DM, DN47 |
2011-2013 |
01 |
| 009 |
|
COVER, CHILD ST TOP STRP BRKT ACC HOLE (PART OF 1) |
|
2011-2013 |
|
