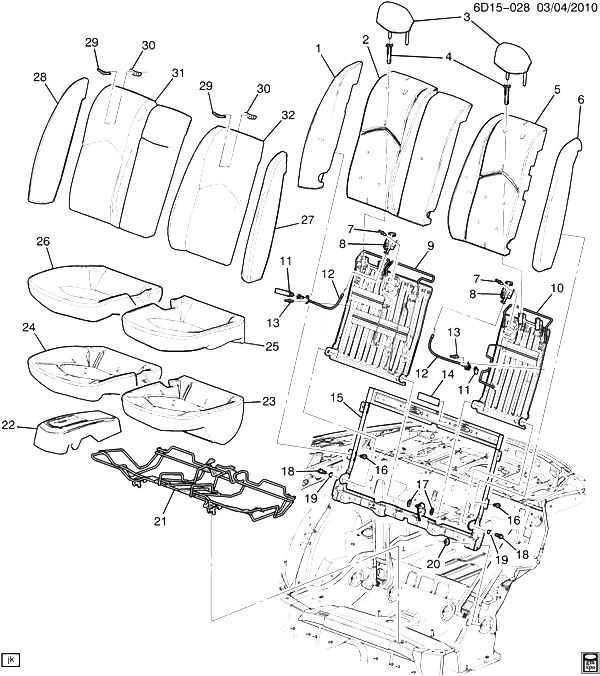

(6D15-028) 2011-2013 D47 СИДЕНЬЕ В СБОРЕ ЗАДНЕЕ CADILLAC - CTS COUPE 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20820408 PAD, R/SEAT BK SI BOLS (*KIT1) DM, DN47 2011-2013 01
002 20820405 PAD, R/SEAT BK (*KIT1) DM, DN47 2011-2013 01
003 20820037 RESTRAINT, R/SEAT HD (TITANIUM) (*KIT1) DM47 (EBS, 01C) 2011-2013 02
003 20820038 RESTRAINT, R/SEAT HD (CASHMERE) (*KIT1) DM47 (EBS, 01D) 2011-2013 02
003 20820039 RESTRAINT, R/SEAT HD (EBONY) (*KIT1) DM, DN47 (EBS, 01G) 2011-2013 02
003 20820060 RESTRAINT, R/SEAT HD (EBONY) (*KIT1) DM47 (EWH, 01G) 2011-2013 02
003 20820061 RESTRAINT, R/SEAT HD (TITANIUM) (*KIT1) DM47 (EWH, 01C) 2011-2013 02
003 20940450 RESTRAINT, R/SEAT HD (EBONY) (*KIT1) DN47 (ECH, 02W) 2011-2013 02
003 20820037 RESTRAINT, R/SEAT HD (TITANIUM) (*KIT1) DM, DN47 (ECH, 01C) 2012-2013 02
003 20820039 RESTRAINT, R/SEAT HD (EBONY) (*KIT1) DM, DN47 (ECH, 01G) 2012-2013 02
003 20820039 RESTRAINT, R/SEAT HD (EBONY) (*KIT1) DN47 (ECH, 07P) 2013-2013 02
003 22896521 RESTRAINT, R/SEAT HD (TWILIGHT BLUE) (*KIT1) DN47 (AM9, ECH, 07P) 2013-2013 02
004 15216387 GUIDE, R/SEAT H/RST (MOLDED IN BLACK) (*KIT1) DM, DN47 (AM9) 2011-2013 04
005 20820406 PAD, R/SEAT BK (*KIT1) DM, DN47 2011-2013 01
006 20820407 PAD, R/SEAT BK SI BOLS (*KIT1) DM, DN47 2011-2013 01
007 RIVET, R/SEAT BK LAT (*KIT1) 2011-2013
008 20820016 LATCH, R/SEAT BK (*KIT1) DM47 (AM9, EWH, EBS) 2011-2013 02
008 20820016 LATCH, R/SEAT BK (*KIT1) DN47 (AM9, ECH) 2011-2013 02
008 20820016 LATCH, R/SEAT BK (*KIT1) DM47 (AM9, ECH, WBL) 2012-2013 02
009 20820017 PANEL, R/SEAT BK (*KIT1) DM, DN47 2011-2013 01
009 22958609 PANEL, R/SEAT BK (RETAINER) (*KIT1) (11.358) DM47 (AM9, EWH) 2012-2013 01
009 22958609 PANEL, R/SEAT BK (RETAINER) (*KIT1) (11.358) DM47 (AM9, EBS) 2012-2013 01
009 22958609 PANEL, R/SEAT BK (RETAINER) (*KIT1) (11.358) DM47 (AM9, ECH, WBL) 2012-2013 01
009 22958609 PANEL, R/SEAT BK (RETAINER) (*KIT1) (11.358) DN47 (AM9, ECH) 2012-2013 01
010 20820018 PANEL, R/SEAT BK (*KIT1) DM, DN47 2011-2013 01
010 22958609 PANEL, R/SEAT BK (RETAINER) (*KIT1) (11.358) DM47 (AM9, EWH) 2012-2013 01
010 22958609 PANEL, R/SEAT BK (RETAINER) (*KIT1) (11.358) DM47 (AM9, EBS) 2012-2013 01
010 22958609 PANEL, R/SEAT BK (RETAINER) (*KIT1) (11.358) DM47 (AM9, ECH, WBL) 2012-2013 01
010 22958609 PANEL, R/SEAT BK (RETAINER) (*KIT1) (11.358) DN47 (AM9, ECH) 2012-2013 01
011 25891462 STRAP, R/SEAT PULL (EBONY) (*KIT1) DN47 (01G, 02W) 2011-2013 02
011 25891462 STRAP, R/SEAT PULL (EBONY) (*KIT1) DM47 (01G) 2011-2013 02
011 25891463 STRAP, R/SEAT PULL (CASHMERE) (*KIT1) DM47 (AM9, EBS, 01D) 2011-2013 02
011 25909232 STRAP, R/SEAT PULL (TITANIUM) (*KIT1) DM, DN47 (AM9, 01C) 2011-2013 02
011 22896537 STRAP, R/SEAT PULL (TWILIGHT BLUE) (*KIT1) DN47 (AM9, ECH, 07P) 2013-2013 02
012 20820410 LOCK, R/SEAT BK (*KIT1) DM47 (AM9, EWH, EBS) 2011-2013 02
012 20820410 LOCK, R/SEAT BK (*KIT1) DN47 (AM9, ECH) 2011-2013 02
012 20820410 LOCK, R/SEAT BK (*KIT1) DM47 (AM9, ECH, WBL) 2012-2013 02
013 RIVET, R/SEAT BK LK (*KIT1) 2011-2013
014 COVER, R/SEAT BK C/BAR FRT FIN (*KIT1) 2011-2013
015 20820019 FRAME, R/SEAT BK (*KIT1) DM47 (EWH, EBS) 2011-2013 01
015 20820019 FRAME, R/SEAT BK (*KIT1) DM, DN47 (ECH) 2012-2013 01
016 11516521 BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (R/SEAT BK FRM) (*KIT1) 2011-2013 04
017 20820409 DAMPENER, R/SEAT CUSH FRM (*KIT1) DM47 (EWH, EBS) 2011-2013 02
017 20820409 DAMPENER, R/SEAT CUSH FRM (*KIT1) DN47 (ECH) 2011-2013 02
017 20820409 DAMPENER, R/SEAT CUSH FRM (*KIT1) DM47 (ECH) 2012-2013 02
018 88952646 BOLT, R/SEAT BK CTR PIV SUPT (INCLS 19) (*KIT1) (11.628) DM, DN47 2011-2013 02
019 BUSHING, R/SEAT BK CTR PIV (PART OF 18) (*KIT1) 2011-2013
020 11515552 NUT, HEX W/CON WA, M10X1.5X13.5, 31.75 OD, 9, ZF (R/SEAT BK BRKT) 2011-2013 04
021 FRAME, R/SEAT CUSH (*KIT2, KIT3) 2011-2013
022 22980323 COMPARTMENT, R/SEAT CUSH (EBONY) (*KIT2) DM47 (EWH, EBS, 01G) 2013-2013 01
022 22980325 COMPARTMENT, R/SEAT CUSH (CASHMERE) (*KIT2) DM47 (EBS, 01D) 2013-2013 01
022 22980327 COMPARTMENT, R/SEAT CUSH (EBONY) (*KIT2) DN47 (ECH, 01G, 02W, 07P) 2013-2013 01
022 22980328 COMPARTMENT, R/SEAT CUSH (TITANIUM) (*KIT2) DN47 (ECH, 01C) 2013-2013 01
022 22980323 COMPARTMENT, R/SEAT CUSH (EBONY) (*KIT2) DM47 (ECH, 01C) 2013-2013 01
022 22980324 COMPARTMENT, R/SEAT CUSH (TITANIUM) (*KIT2) DM47 (ECH, WBL, 01G) 2013-2013 01
022 22980324 COMPARTMENT, R/SEAT CUSH (TITANIUM) (*KIT2) DM47 (EWH, EBS, 01C) 2013-2013 01
023 PAD, R/SEAT CUSH (*KIT2, KIT3) 2011-2013
024 PAD, R/SEAT CUSH (*KIT2, KIT3) 2011-2013
025 20820428 COVER, R/SEAT CUSH (EBONY) (*KIT2) DM47 (EBS, 01G) 2011-2013 01
025 20820429 COVER, R/SEAT CUSH (TITANIUM) (*KIT2) DM47 (EBS, 01C) 2011-2013 01
025 20820430 COVER, R/SEAT CUSH (CASHMERE) (*KIT2) DM47 (EBS, 01D) 2011-2013 01
025 20820435 COVER, R/SEAT CUSH (EBONY) (*KIT2) DM47 (EWH, 01G) 2011-2013 01
025 20820436 COVER, R/SEAT CUSH (TITANIUM) (*KIT2) DM47 (EWH, 01C) 2011-2013 01
025 20820444 COVER, R/SEAT CUSH (SAFFRON) (*KIT2) DN47 (ECH, 02W) 2011-2013 01
025 22786276 COVER, R/SEAT CUSH (EBONY) (*KIT2) DM47 (ECH, WBL, 01G) 2012-2013 01
025 22786276 COVER, R/SEAT CUSH (EBONY) (*KIT2) DN47 (ECH, 01G) 2012-2013 01
025 22789954 COVER, R/SEAT CUSH (TITANIUM) (*KIT2) DM47 (ECH, WBL, 01C) 2012-2013 01
025 22789954 COVER, R/SEAT CUSH (TITANIUM) (*KIT2) DN47 (ECH, 01C) 2012-2013 01
025 22896527 COVER, R/SEAT CUSH (TWILIGHT BLUE) (*KIT2) DN47 (ECH, 07P) 2013-2013 01
026 20820424 COVER, R/SEAT CUSH (EBONY) (*KIT2) DM47 (EBS, 01G) 2011-2013 01
026 20820425 COVER, R/SEAT CUSH (TITANIUM) (*KIT2) DM47 (EBS, 01C) 2011-2013 01
026 20820426 COVER, R/SEAT CUSH (CASHMERE) (*KIT2) DM47 (EBS, 01D) 2011-2013 01
026 20820432 COVER, R/SEAT CUSH (EBONY) (*KIT2) DM47 (EWH, 01G) 2011-2013 01
026 20820433 COVER, R/SEAT CUSH (TITANIUM) (*KIT2) DM47 (EWH, 01C) 2011-2013 01
026 20820440 COVER, R/SEAT CUSH (SAFFRON) (*KIT2) DN47 (ECH, 02W) 2011-2013 01
026 22786275 COVER, R/SEAT CUSH (EBONY) (*KIT2) DM47 (ECH, WBL, 01G) 2012-2013 01
026 22786275 COVER, R/SEAT CUSH (EBONY) (*KIT2) DN47 (ECH, 01G) 2012-2013 01
026 22789953 COVER, R/SEAT CUSH (TITANIUM) (*KIT2) DM47 (ECH, WBL, 01C) 2012-2013 01
026 22789953 COVER, R/SEAT CUSH (TITANIUM) (*KIT2) DN47 (ECH, 01C) 2012-2013 01
026 22896526 COVER, R/SEAT CUSH (TWILIGHT BLUE) (*KIT2) DN47 (ECH, 07P) 2013-2013 01
027 20820163 COVER, R/SEAT BK SI (EBONY) (*KIT1) DM47 (AM9, EWH, 01G) 2011-2013 01
027 20820164 COVER, R/SEAT BK SI (TITANIUM) (*KIT1) DM47 (AM9, EWH, 01C) 2011-2013 01
027 20820193 COVER, R/SEAT BK SI (TITANIUM) (*KIT1) DM47 (AM9, EBS, 01C) 2011-2013 01
027 20820194 COVER, R/SEAT BK SI (CASHMERE) (*KIT1) DM47 (AM9, EBS, 01D) 2011-2013 01
027 20820195 COVER, R/SEAT BK SI (EBONY) (*KIT1) DM47 (AM9, EBS, 01G) 2011-2013 01
027 20940452 COVER, R/SEAT BK SI (EBONY) (*KIT1) DN47 (AM9, ECH, 02W) 2011-2013 01
027 22787249 COVER, R/SEAT BK SI (EBONY) (*KIT1) DM47 (AM9, ECH, WBL, 01G) 2012-2013 01
027 22787249 COVER, R/SEAT BK SI (EBONY) (*KIT1) DN47 (AM9, ECH, 01G) 2012-2013 01
027 22790408 COVER, R/SEAT BK SI (TITANIUM) (*KIT1) DM47 (AM9, ECH, WBL, 01C) 2012-2013 01
027 22790408 COVER, R/SEAT BK SI (TITANIUM) (*KIT1) DN47 (AM9, ECH, 01C) 2012-2013 01
027 22896525 COVER, R/SEAT BK SI (TWLIGHT BLUE) (*KIT1) DN47 (AM9, ECH, 07P) 2013-2013 01
028 20820160 COVER, R/SEAT BK SI (EBONY) (*KIT1) DM47 (AM9, EWH, 01G) 2011-2013 01
028 20820161 COVER, R/SEAT BK SI (TITANIUM) (*KIT1) DM47 (AM9, EWH, 01C) 2011-2013 01
028 20820188 COVER, R/SEAT BK SI (TITANIUM) (*KIT1) DM47 (AM9, EBS, 01C) 2011-2013 01
028 20820189 COVER, R/SEAT BK SI (CASHMERE) (*KIT1) DM47 (AM9, EBS, 01D) 2011-2013 01
028 20820190 COVER, R/SEAT BK SI (EBONY) (*KIT1) DM47 (AM9, EBS, 01G) 2011-2013 01
028 20940453 COVER, R/SEAT BK SI (EBONY) (*KIT1) DN47 (AM9, ECH, 02W) 2011-2013 01
028 22787248 COVER, R/SEAT BK SI (EBONY) (*KIT1) DM47 (AM9, ECH, WBL, 01G) 2012-2013 01
028 22787248 COVER, R/SEAT BK SI (EBONY) (*KIT1) DN47 (AM9, ECH, 01G) 2012-2013 01
028 22790407 COVER, R/SEAT BK SI (TITANIUM) (*KIT1) DM47 (AM9, ECH, WBL, 01C) 2012-2013 01
028 22790407 COVER, R/SEAT BK SI (TITANIUM) (*KIT1) DN47 (AM9, ECH, 01C) 2012-2013 01
028 22896524 COVER, R/SEAT BK SI (TWILIGHT BLUE) (*KIT1) DN47 (AM9, ECH, 07P) 2013-2013 01
029 EMBLEM, R/SEAT BK CUSH CVR (PART OF 31, 32) (*KIT1) 2011-2013
030 RETAINER, R/SEAT BK CUSH CVR EMBLEM (PART OF 31, 32) (*KIT1) 2011-2013
031 20820082 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DM47 (AM9, EWH, 01G) 2011-2013 01
031 20820083 COVER, R/SEAT BK (INCLS 29, 30) (TITANIUM) (*KIT1) DM47 (AM9, EWH, 01C) 2011-2013 01
031 20820171 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DM47 (AM9, EBS, 01G) 2011-2013 01
031 20820172 COVER, R/SEAT BK (INCLS 29, 30) (TITANIUM) (*KIT1) DM47 (AM9, EBS, 01C) 2011-2013 01
031 20820173 COVER, R/SEAT BK (INCLS 29, 30) (CASHMERE) (*KIT1) DM47 (AM9, EBS, 01D) 2011-2013 01
031 20820185 COVER, R/SEAT BK (INCLS 29, 30) (SAFFRON) (*KIT1) DN47 (AM9, ECH, 02W) 2011-2013 01
031 22787274 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DM47 (AM9, ECH, WBL, 01G) 2012-2013 01
031 22787274 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DN47 (AM9, ECH, 01G) 2012-2013 01
031 22790422 COVER, R/SEAT BK (INCLS 29, 30) (TITANIUM) (*KIT1) DM47 (AM9, ECH, WBL, 01C) 2012-2013 01
031 22790422 COVER, R/SEAT BK (INCLS 29, 30) (TITANIUM) (*KIT1) DN47 (AM9, ECH, 01C) 2012-2013 01
031 22787274 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DN47 (AM9, ECH, 07P) 2013-2013 01
031 22896523 COVER, R/SEAT BK (INCLS 29, 30) (TWILIGHT BLUE) (*KIT1) DN47 (AM9, ECH, 07P) 2013-2013 01
032 20820080 COVER, R/SEAT BK (INCLS 29, 30) (TITANIUM) (*KIT1) DM47 (AM9, EWH, 01C) 2011-2013 01
032 20820167 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DM47 (AM9, EBS, 01G) 2011-2013 01
032 20820168 COVER, R/SEAT BK (INCLS 29, 30) (TITANIUM) (*KIT1) DM47 (AM9, EBS, 01C) 2011-2013 01
032 20820169 COVER, R/SEAT BK (INCLS 29, 30) (CASHMERE) (*KIT1) DM47 (AM9, EBS, 01D) 2011-2013 01
032 20820181 COVER, R/SEAT BK (INCLS 29, 30) (SAFFRON) (*KIT1) DN47 (AM9, ECH, 02W) 2011-2013 01
032 22787273 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DM47 (AM9, ECH, WBL, 01G) 2012-2013 01
032 22787273 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DN47 (AM9, ECH, 01G) 2012-2013 01
032 22790421 COVER, R/SEAT BK (INCLS 29, 30) (TITANIUM) (*KIT1) DM47 (AM9, ECH, WBL, 01C) 2012-2013 01
032 22790421 COVER, R/SEAT BK (INCLS 29, 30) (TITANIUM) (*KIT1) DN47 (AM9, ECH, 01C) 2012-2013 01
032 20820079 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DM47 (AM9, EWH, 01G) 2011-2013 01
032 22787273 COVER, R/SEAT BK (INCLS 29, 30) (EBONY) (*KIT1) DN47 (AM9, ECH, 07P) 2013-2013 01
032 22896522 COVER, R/SEAT BK (INCLS 29, 30) (TWILIGHT BLUE) (*KIT1) DN47 (AM9, ECH, 07P) 2013-2013 01
K01 22829259 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (EBONY) (SANDSTONE) DM47 (EBS, 01G) 2012-2013 01
K01 22829260 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (TITANIUM) (SANDSTONE) DM47 (EBS, 01C) 2012-2013 01
K01 22829261 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (CASHMERE) (SANDSTONE) DM47 (AM9, EBS, 01D) 2012-2013 01
K01 22829262 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (EBONY) DM47 (EWH, 01G) 2012-2013 01
K01 22829263 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (TITANIUM) DM47 (EWH, 01C) 2012-2013 01
K01 22834510 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (SAFFRON) (EBONY LEA W/SAFFRON SUEDE INS/STITCHING) DN47 (AM9, ECH, 02W) 2012-2013 01
K01 22834511 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (EBONY) (SANDSTONE/SUEDE) DM47 (AM9, ECH, WBL, 01G) 2012-2013 01
K01 22834511 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (EBONY) (SANDSTONE/SUEDE) DN47 (AM9, ECH, 01G) 2012-2013 01
K01 22834512 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (TITANIUM) (SANDSTONE/SUEDE) DM47 (AM9, ECH, WBL, 01C) 2012-2013 01
K01 22834512 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (TITANIUM) (SANDSTONE/SUEDE) DN47 (AM9, ECH, 01C) 2012-2013 01
K01 22896512 CUSHION, R/SEAT BK (INCLS 1-19, 27-32) (TWILIGHT BLUE) DN47 (AM9, ECH, 07P) 2013-2013 01
K02 22980308 CUSHION, R/SEAT (INCLS 21-26) (EBONY) DM47 (EWH, 01G) 2012-2013 01
K02 22980309 CUSHION, R/SEAT (INCLS 21-26) (TITANIUM) DM47 (EWH, 01C) 2012-2013 01
K02 22980311 CUSHION, R/SEAT (INCLS 21-26) (EBONY) (SANDSTONE) DM47 (EBS, 01G) 2012-2013 01
K02 22980312 CUSHION, R/SEAT (INCLS 21-26) (TITANIUM) (SANDSTONE) DM47 (EBS, 01C) 2012-2013 01
K02 22980313 CUSHION, R/SEAT (INCLS 21-26) (CASHMERE) (SANDSTONE) DM47 (EBS, 01D) 2012-2013 01
K02 22980315 CUSHION, R/SEAT (INCLS 21-26) (TITANIUM) (SANDSTONE/SUEDE) DN47 (ECH, 01C) 2012-2013 01
K02 22980316 CUSHION, R/SEAT (INCLS 21-26) (SAFFRON) (SANDSTONE/SUEDE) (SAFFRON INSERT) DN47 (ECH, 02W) 2012-2013 01
K02 22980317 CUSHION, R/SEAT (INCLS 21-26) (EBONY) (SANDSTONE/SUEDE) DN47 (ECH, 01G) 2012-2013 01
K02 22980318 CUSHION, R/SEAT (INCLS 21-26) (TITANIUM) DM47 (ECH, WBL, 01C) 2012-2013 01
K02 22980319 CUSHION, R/SEAT (INCLS 21-26) (EBONY) DM47 (ECH, WBL, 01G) 2012-2013 01
K02 22980321 CUSHION, R/SEAT (INCLS 21-26) (TWILIGHT BLUE) DN47 (ECH, 07P) 2013-2013 01
K03 20820404 PAD, R/SEAT CUSH (INCLS 21, 23, 24) DM, DN47 (EBS, ECH) 2011-2013 01
K03 20820404 PAD, R/SEAT CUSH (INCLS 21, 23, 24) DM47 (EWH) 2012-2013 01
