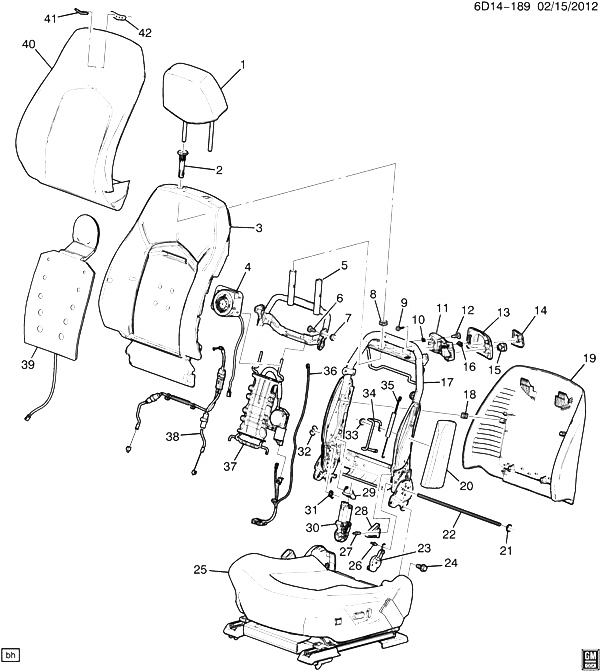

(6D14-189) 2013 D47 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (POWER LUMBAR AL2, VENTED/HEATED KB6, EXC RECARO W2E) CADILLAC - CTS COUPE 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20867413 RESTRAINT, D/SEAT HD (TITANIUM) DM35-47-69 (AQ9, EBS, ECH, 01C) 2012-2013 01
001 20867414 RESTRAINT, D/SEAT HD (CASHMERE) DM (01D) 2012-2013 01
001 20812526 RESTRAINT, D/SEAT HD (EBONY) (LEATHER) DM, DN (AL2, AQ9, EBS, ECH, 01G) 2012-2013 01
002 25785786 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) DM (01D) 2012-2013 01
002 25908135 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) DM (01C) 2012-2013 01
002 25785791 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) DM (01G) 2012-2013 01
002 25785789 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) DM (01D) 2012-2013 01
002 25785788 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DM (01G) 2012-2013 01
002 25908165 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) DM (01C) 2012-2013 01
003 22758827 PAD, D/SEAT BK DM47 (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2013-2013 01
004 22758933 BLOWER, D/SEAT BACK VENTILATION HEAT COOL DM (EBS, KB6) 2013-2013 01
005 25994442 SUPPORT, D/SEAT H/RST DM47 2012-2013 01
006 BOLT, D/SEAT H/RST SUPT 2013-2013
007 25995124 BUSHING, F/SEAT BK PIV DM 2012-2013 02
008 25994444 RETAINER, D/SEAT H/RST GDE D35-47-69 2012-2013 01
009 25995123 BUMPER, F/SEAT BK DM 2012-2013 02
010 11570654 NUT, D/SEAT (PART OF 11) (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) DM, DN47 2012-2013 05
011 20815246 HANDLE, F/SEAT EASY ENTRY (INCLS 10, 12) (EBONY) (EZ ENTRY) DM, DN47 (01G) 2012-2013 01
011 20815247 HANDLE, F/SEAT EASY ENTRY (INCLS 10, 12) (TITANIUM) (EZ ENTRY) DM, DN47 (01C) 2012-2013 01
011 20815248 HANDLE, F/SEAT EASY ENTRY (INCLS 10, 12) (CASHMERE) (EZ ENTRY) DM47 (01D) 2012-2013 01
012 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 11) 2012-2013 02
013 BEZEL, D/SEAT BK LAT REL HDL 2013-2013
014 20815254 HANDLE, D/SEAT RECL (EBONY) (EZ ENTRY) DM47 (01G) 2012-2013 01
014 20815256 HANDLE, D/SEAT RECL (CASHMERE) (EZ ENTRY) DM47 (01D) 2012-2013 01
014 20815255 HANDLE, D/SEAT RECL (TITANIUM) (EZ ENTRY) DM, DN47 (01C) 2012-2013 01
015 20779566 SWITCH, F/SEAT BK POSN (EBONY) DM, DN47 (01G) 2012-2013 02
015 20779567 SWITCH, F/SEAT BK POSN (TITANIUM) DM, DN47 (01C) 2012-2013 02
015 20779568 SWITCH, F/SEAT BK POSN (CASHMERE) DM47 (01D) 2012-2013 02
016 CLIP, D/SEAT BK CUSH LAT REL HDL 2013-2013
017 25804622 FRAME, D/SEAT BK (*KIT1) DM47 (AL2, AQ9, A45, EBS) 2012-2013 01
018 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 19) 2012-2013 04
019 25939325 PANEL, D/SEAT BK FIN (INCLS 18) (EBONY) (PANEL IS WRAPPED IN LEATHER) DM (AL2, AQ9, A45, EBS, 01G) 2012-2013 01
019 25939326 PANEL, D/SEAT BK FIN (INCLS 18) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) DM47 (AQ9, 01C) 2012-2013 01
019 25939323 PANEL, D/SEAT BK FIN (INCLS 18) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) DM (AQ9, 01D) 2012-2013 01
020 20970105 AIRBAG, D/SEAT SI D47 2012-2013 01
021 11571066 NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (D/SEAT RECL) (*KIT1) 2012-2013 02
022 15894212 BAR, F/SEAT BK FRM CR (*KIT1) DM, DN 2012-2013 02
023 SENSOR, F/SEAT RECL POSN (*KIT1) 2013-2013
024 25828643 BOLT, F/SEAT DM 2012-2013 08
025 PAD, D/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/DRIVER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2012-2013
026 RIVET, F/SEAT RECL POSN SENSOR (*KIT1) 2013-2013
027 RIVET, D/SEAT BRKT 2013-2013
028 25994443 BRACKET, D/SEAT (11.419) DM 2012-2013 02
029 BRACKET, F/SEAT RECL ACTR (*KIT1) 2013-2013
030 15894214 ACTUATOR, D/SEAT RECL (*KIT1) DM 2012-2013 01
031 SPRING, D/SEAT ADJR RTN (*KIT1) 2013-2013
032 RETAINER, F/SEAT RECL ACTR BRKT (*KIT1) 2013-2013
033 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (D/SEAT) 2012-2013 02
034 25994418 BRACKET, D/SEAT SI AIRBAG DM, DN (AQ9) 2012-2013 01
035 25994445 SPRING, F/SEAT H/RST ADJ RET DM, DN 2012-2013 02
036 22919773 HARNESS, D/SEAT CONT MDL WRG DM47 (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2012-2013 01
036 22893494 HARNESS, D/SEAT CONT MDL WRG DM47 (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2013-2013 01
037 25939289 LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) DM47 (AL2, AQ9, A45, EBS) 2012-2013 01
038 20793164 CABLE, F/SEAT BK LAT REL (EZ-ENTRY) (*KIT1) DM, DN47 2012-2013 02
039 22758813 MAT, F/SEAT BK VENT FAN (HEAT/VENT LR) DM (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2013-2013 01
040 22737811 COVER, D/SEAT BK (INCLS 41, 42) (EBONY) DM47 (AL2, AQ9, A45, EBS, KB6, 01G) (EXC KA1) 2012-2013 01
040 22737812 COVER, D/SEAT BK (INCLS 41, 42) (TITANIUM) DM47 (AL2, AQ9, A45, EBS, KB6, 01C) (EXC KA1) 2012-2013 01
040 22737813 COVER, D/SEAT BK (INCLS 41, 42) (CASHMERE) DM47 (AL2, AQ9, A45, EBS, KB6, 01D) (EXC KA1) 2012-2013 01
041 EMBLEM, D/SEAT BK CUSH CVR (PART OF 40) 2013-2013
042 RETAINER, D/SEAT BK CUSH CVR (PART OF 40) 2013-2013
K01 25804622 FRAME, D/SEAT BK (INCLS 17, 21-23, 26, 29-32, 38) DM47 (AL2, AQ9, A45, EBS) 2012-2013 01
