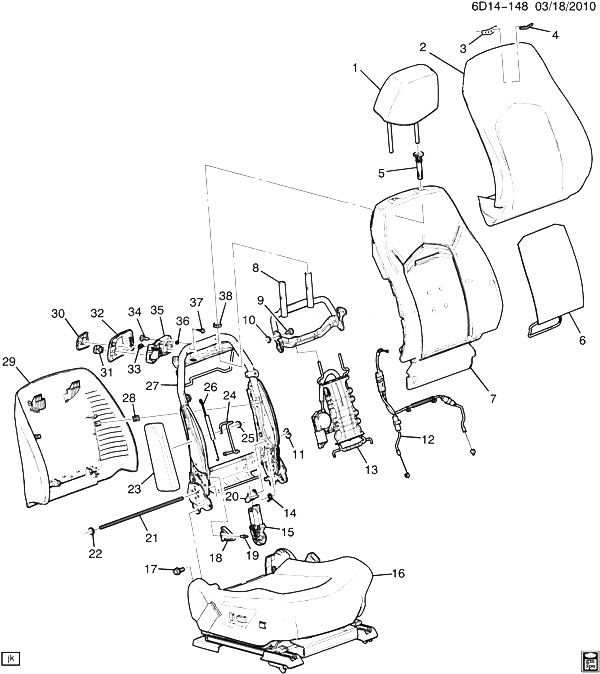

(6D14-148) 2011-2013 DM,DN47 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-СПИНКА (POWER ADJUSTER AH8, EXC VENTED/HEATED KB6) CADILLAC - CTS COUPE 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20812527 RESTRAINT, P/SEAT HD (EBONY) (LEATHERETTE) DM47 (AH8, AQ9, EWH, 01G) (EXC AL2) 2011-2013 01
001 20867413 RESTRAINT, P/SEAT HD (TITANIUM) DN47-69 (AQ9, KA1, 01C) (EXC KB6) 2011-2013 01
001 20940451 RESTRAINT, P/SEAT HD (EBONY) DN47 (AH8, AL2, AQ9, ECH, KA1, 02W) (EXC KB6) 2011-2013 01
001 20867414 RESTRAINT, P/SEAT HD (CASHMERE) DM (01D) 2011-2013 01
001 20812526 RESTRAINT, P/SEAT HD (EBONY) (LEATHER) DM, DN (AL2, AQ9, EBS, ECH, 01G) 2012-2013 01
001 20867413 RESTRAINT, P/SEAT HD (TITANIUM) DM47 (AQ9, EBS, 01C) 2011-2013 01
001 20830413 RESTRAINT, P/SEAT HD (TITANIUM) DM47 (AQ9, EWH, 01C) 2011-2013 01
002 22738034 COVER, P/SEAT BK (INCLS 3, 4) (EBONY) DM47 (AH8, AL2, AQ9, EBS, KA1, 01G) (EXC KB6) 2011-2013 01
002 22738035 COVER, P/SEAT BK (INCLS 3, 4) (TITANIUM) DM47 (AH8, AL2, AQ9, EBS, KA1, 01C) (EXC KB6) 2011-2013 01
002 22738036 COVER, P/SEAT BK (INCLS 3, 4) (CASHMERE) DM47 (AH8, AL2, AQ9, EBS, KA1, 01D) (EXC KB6) 2011-2013 01
002 22738044 COVER, P/SEAT BK (INCLS 3, 4) (SAFFRON) DN47 (AH8, AL2, AQ9, ECH, KA1, 02W) (EXC KB6) 2011-2013 01
002 22784983 COVER, P/SEAT BK (INCLS 3, 4) (EBONY) DN47 (AH8, AL2, AQ9, ECH, KA1, 01G) (EXC KB6) 2012-2013 01
002 22789787 COVER, P/SEAT BK (INCLS 3, 4) (TITANIUM) DN47 (AH8, AL2, AQ9, ECH, KA1, 01C) (EXC KB6) 2012-2013 01
002 22738031 COVER, P/SEAT BK (INCLS 3, 4) (EBONY) DM47 (AH8, AQ9, EWH, 01G) (EXC AL2) 2012-2013 01
002 22738032 COVER, P/SEAT BK (INCLS 3, 4) (TITANIUM) DM47 (AH8, AQ9, EWH, 01C) (EXC AL2) 2012-2013 01
003 RETAINER, P/SEAT BK CUSH (PART OF 2) 2011-2013
004 EMBLEM, P/SEAT BK CUSH (PART OF 2) 2011-2013
005 25785786 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) DM (01D) 2011-2013 01
005 25785789 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) DM (01D) 2011-2013 01
005 25785791 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) DN47 (02W) 2011-2013 01
005 25785791 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) DM (01G) 2011-2013 01
005 25908135 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) DM (01C) 2011-2013 01
005 25908135 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) DN (01C) 2011-2013 01
005 25785788 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) DN (01G) 2011-2013 01
005 25785788 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) DM47 (01G) 2011-2013 01
005 25908165 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) DN (01C) 2011-2013 01
005 25908165 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) DM (01C) 2011-2013 01
006 25994410 HEATER, P/SEAT BK DM (KA1) (EXC KB6) 2011-2013 01
006 25994410 HEATER, P/SEAT BK DN (KA1) (EXC KB6) 2011-2013 01
007 20810970 PAD, P/SEAT BK DM47 (AH8, AL2, AQ9, EBS, KA1) (EXC KB6) 2011-2013 01
007 20810970 PAD, P/SEAT BK DM47 (AH8, AQ9, EWH) (EXC AL2) 2011-2013 01
007 20810970 PAD, P/SEAT BK DN47 (AH8, AQ9, ECH) 2011-2013 01
008 25994442 SUPPORT, P/SEAT H/RST DM, DN47 2011-2013 01
009 BOLT, P/SEAT H/RST SUPT 2011-2013
010 25995124 BUSHING, F/SEAT BK PIV DM 2011-2013 02
010 25995124 BUSHING, F/SEAT BK PIV DN 2011-2013 02
011 RETAINER, F/SEAT RECL ACTR BRKT (*KIT1) 2011-2013
012 20793164 CABLE, F/SEAT BK LAT REL (EZ-ENTRY) (*KIT1) DM, DN47 2011-2013 02
013 25939270 LUMBAR SUB, P/SEAT (SHALE) (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (2-WAY) (PWR) DM47 (AH8, AL2, AQ9) 2011-2013 01
013 25939270 LUMBAR SUB, P/SEAT (SHALE) (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (2-WAY) (PWR) DN47 (AH8, AL2, AQ9, ECH, KA1) 2011-2013 01
013 25939527 LUMBAR SUB, P/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (NON-ADJ LUMBAR) DM47 (AQ9, EWH) (EXC AL2) 2011-2013 01
014 SPRING, P/SEAT ADJR RTN (*KIT1) 2011-2013
015 15894214 ACTUATOR, P/SEAT RECL (*KIT1) DM 2011-2013 01
015 15894214 ACTUATOR, P/SEAT RECL (*KIT1) DN 2011-2013 01
016 PAD, P/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/PASSENGER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2011-2013
017 25828643 BOLT, F/SEAT DN 2011-2013 08
017 25828643 BOLT, F/SEAT DM 2011-2013 08
018 25994443 BRACKET, P/SEAT FRT DM, DN47 2011-2013 02
019 RIVET, P/SEAT BRKT 2011-2013
020 BRACKET, F/SEAT RECL ACTR (*KIT1) 2011-2013
021 15894212 BAR, F/SEAT BK FRM CR (*KIT1) DM, DN 2011-2013 02
022 11571066 NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (D/SEAT RECL) (*KIT1) 2011-2013 02
023 20970098 AIRBAG, P/SEAT SI DM, DN (AQ9) 2011-2013 01
024 25994419 BRACKET, P/SEAT SI AIRBAG DM 2011-2013 01
024 25994419 BRACKET, P/SEAT SI AIRBAG DN 2011-2013 01
025 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (D/SEAT) 2011-2013 02
026 25994445 SPRING, F/SEAT H/RST ADJ RET DM, DN 2011-2013 02
027 25955769 FRAME, P/SEAT BK (SUB-ASM) (*KIT1) DM, DN47 2011-2013 01
028 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 29) 2011-2013 04
029 25939494 PANEL, P/SEAT BK FIN (INCLS 28) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM47 (AH8, AQ9, EWH, 01G) (EXC AL2) 2011-2013 01
029 25939330 PANEL, P/SEAT BK FIN (INCLS 28) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM (AQ9, ECH, 01C) 2011-2013 01
029 25939495 PANEL, P/SEAT BK FIN (INCLS 28) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM35-47-69 (AL2, AQ9, EBS, 01C) 2011-2013 01
029 25939495 PANEL, P/SEAT BK FIN (INCLS 28) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM47 (AQ9, EWH, 01C) (EXC AL2) 2011-2013 01
029 25939490 PANEL, P/SEAT BK FIN (INCLS 28) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) DM47 (AQ9, EBS, 01C) 2011-2013 01
029 25939490 PANEL, P/SEAT BK FIN (INCLS 28) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) DN47 (AQ9, ECH, 01C) (EXC KB6) 2011-2013 01
029 25939487 PANEL, P/SEAT BK FIN (INCLS 28) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) DM (AH8, AL2, AQ9, EBS, 01D) 2011-2013 01
030 20815258 HANDLE, P/SEAT RECL (EBONY) (EZ ENTRY) DM47 (01G) 2011-2013 01
030 20815258 HANDLE, P/SEAT RECL (EBONY) (EZ ENTRY) DN47 (01G, 02W) 2011-2013 01
030 20815259 HANDLE, P/SEAT RECL (TITANIUM) (EZ ENTRY) DM47 (01C) 2011-2013 01
030 20815259 HANDLE, P/SEAT RECL (TITANIUM) (EZ ENTRY) DN47 (01C) 2011-2013 01
030 20815260 HANDLE, P/SEAT RECL (CASHMERE) (EZ ENTRY) DM47 (01D) 2011-2013 01
031 20779566 SWITCH, F/SEAT BK POSN (EBONY) DN47 (02W) 2011-2013 02
031 20779566 SWITCH, F/SEAT BK POSN (EBONY) DM, DN47 (01G) 2011-2013 02
031 20779567 SWITCH, F/SEAT BK POSN (TITANIUM) DM, DN47 (01C) 2011-2013 02
031 20779568 SWITCH, F/SEAT BK POSN (CASHMERE) DM47 (01D) 2011-2013 02
032 20815266 BEZEL, P/SEAT BK LAT REL HDL (INCLS 33) (EBONY) (EZ ENTRY) DM47 (01G) 2011-2013 01
032 20815267 BEZEL, P/SEAT BK LAT REL HDL (INCLS 33) (TITANIUM) (EZ ENTRY) DM, DN47 (01C) 2011-2013 01
032 20815268 BEZEL, P/SEAT BK LAT REL HDL (INCLS 33) (CASHMERE) (EZ ENTRY) DM47 (01D) 2011-2013 01
032 20815266 BEZEL, P/SEAT BK LAT REL HDL (INCLS 33) (EBONY) (EZ ENTRY) DN47 (01G, 02W) 2011-2013 01
033 CLIP, P/SEAT BK CUSH LAT REL HDL (PART OF 32) 2011-2013
034 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 35) 2011-2013 02
035 20815250 HANDLE, F/SEAT EASY ENTRY (INCLS 34, 36) (EBONY) DM47 (01G) 2011-2013 01
035 20815251 HANDLE, F/SEAT EASY ENTRY (INCLS 34, 36) (TITANIUM) (EZ ENTRY) DM, DN47 (AH8, 01C) 2011-2013 01
035 20815252 HANDLE, F/SEAT EASY ENTRY (INCLS 34, 36) (CASHMERE) (EZ ENTRY) DM47 (01D) 2011-2013 01
035 20815250 HANDLE, F/SEAT EASY ENTRY (INCLS 34, 36) (EBONY) DN47 (01G, 02W) 2011-2013 01
036 11570654 NUT, D/SEAT (PART OF 35) (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) DM, DN47 2011-2013 05
037 25995123 BUMPER, F/SEAT BK DN 2011-2013 02
037 25995123 BUMPER, F/SEAT BK DM 2011-2013 02
038 25994444 RETAINER, P/SEAT H/RST GDE D35-47-69 2011-2013 01
K01 25804612 FRAME, P/SEAT BK (INCLS 11, 12, 14, 15, 20-22, 27) DN47 (AH8, AL2, ECH, KA1) (EXC KB6) 2011-2013 01
K01 25804612 FRAME, P/SEAT BK (INCLS 11, 12, 14, 15, 20-22, 27) DM47 (AH8, AQ9, EWH, EBS) 2011-2013 01
