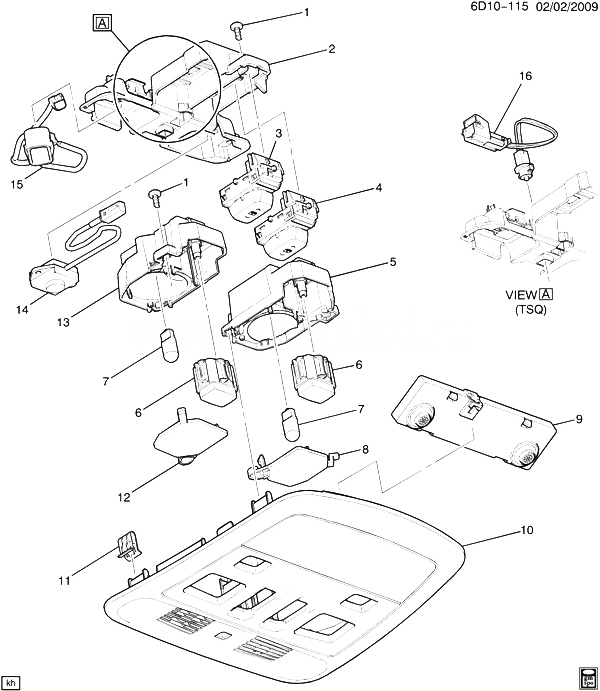

(6D10-115) 2011-2013 DM,DN47 ПОТОЛОЧНАЯ КОНСОЛЬ (SUNROOF CBF, MOVEMENT SENSOR UTV, EXC GARAGE OPENER UG1) CADILLAC - CTS COUPE 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11562028 BOLT, RF CNSL (PART OF 10) D47 2011-2013 AR
002 PLATE, RF CNSL BKG (PART OF 10) 2011-2013
003 25789090 SWITCH, SUN RF SUNSHADE (PART OF 10) D 2011-2013 01
004 25789091 SWITCH, SUN RF (PART OF 10) D 2011-2013 01
005 25886563 LAMP, RF CNSL CTSY RDG (PART OF 10) (INCLS 6-8) D35-47-69 2011-2013 01
006 PUSHBUTTON, W/S HDR CTSY RDG LP SW (PART OF 5, 10, 13) 2011-2013
007 01999382 BULB, (PART OF 5, 10, 13) (ACDelco #W5WLL) (LONGER LIFE) 2011-2013 02
008 25886565 LENS, RF CNSL RDG LP (PART OF 5, 10) D35-47-69 2011-2013 01
009 15283682 SENSOR, THEFT DTRNT (PART OF 10) DM35-47-69 (EXC UG1) 2011-2013 01
010 25940376 CONSOLE, RF (INCLS 1-9, 11-15) (EBONY) (S/R) DN47 (CBF, TSQ, UQS, UTV, WXS, 4AL, 4AM, 4BZ) (EXC UE1, UG1) 2011-2013 01
010 25940376 CONSOLE, RF (INCLS 1-9, 11-15) (EBONY) (S/R) DM47 (CBF, TSQ, UQS, UTV, WXS, 4AL, 4AM, 4AR, 4EV) (EXC UE1, UG1) 2013-2013 01
010 25940378 CONSOLE, RF (INCLS 1-9, 11-15) (EBONY) (S/R) DM47 (CBF, UQS, UTV, WXS, 4AL, 4AM, 4AR, 4EV) (EXC TSQ, UE1, UG1) 2013-2013 01
011 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10) 2011-2013 04
012 25886564 LENS, RF CNSL RDG LP (PART OF 10, 13) D35-47-69 2011-2013 01
013 25886562 LAMP, RF CNSL CTSY RDG (PART OF 10) (INCLS 6, 7, 12) D35-47-69 2011-2013 01
014 15240415 MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 10) DM, DN (UTV) 2011-2013 01
015 13576669 MICROPHONE, MOBILE TEL (PART OF 10) (2-CAVITY) D 2012-2013 01
016 25821823 LAMP, RF CNSL CTSY (PART OF 10) (PIN SPOT LED) D35-47-69 2011-2013 01
